Uplift Desk UPL143 Manual

Corner Sleeve
SKU: UPL143

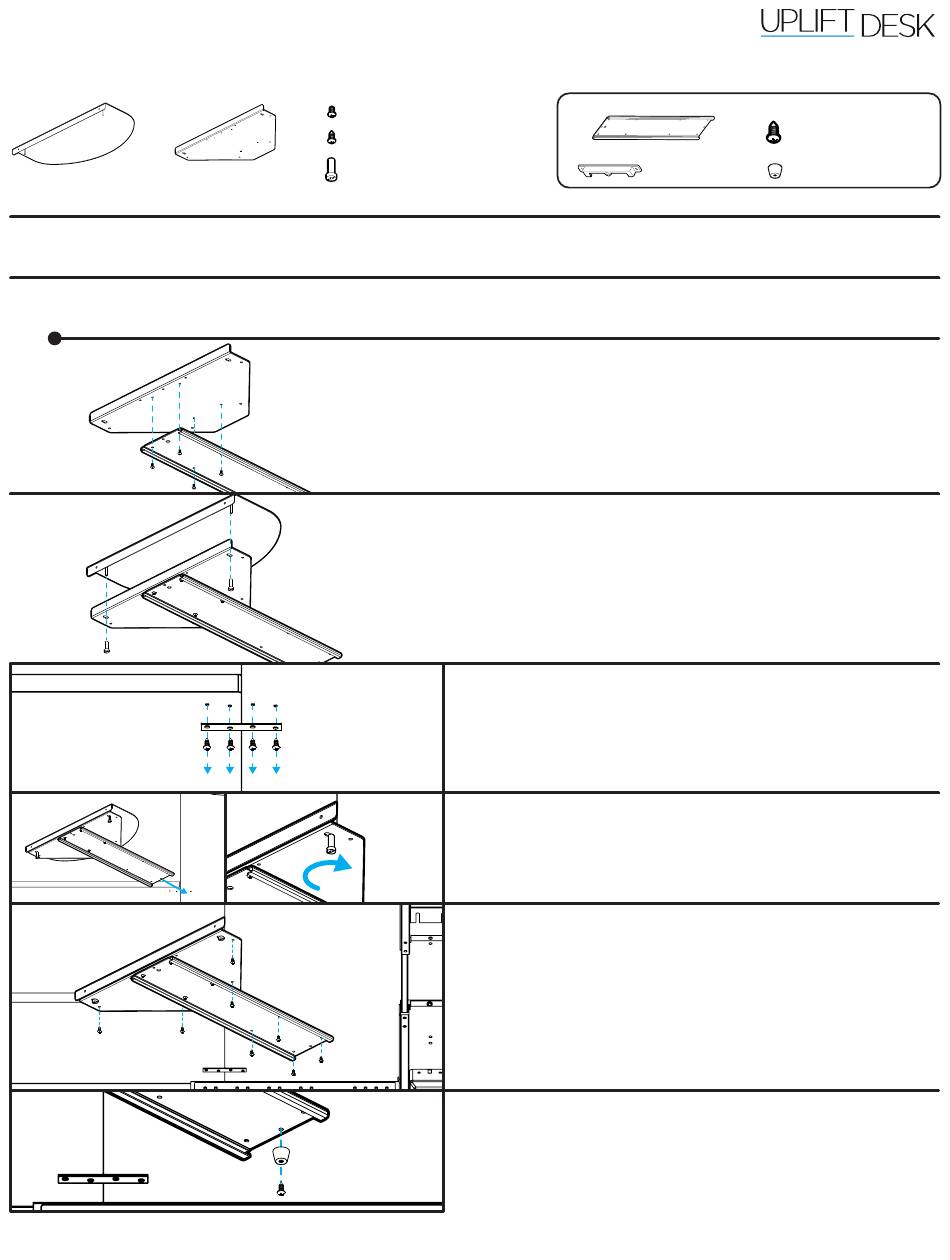

Package Contents

Corner sleeve top Corner sleeve bottom
Note: This product was designed to have a Keyboard Tray attached to it, but it can also be used in the corner of your desk
without a Keyboard Tray. See page 2 for Assembly without Keyboard Tray.

Assembly with Keyboard Tray

© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
#10-32x3/8'' Machine screws
(qty 10)
#10x5/8'' Wood screws
(qty 5)
Barrel nuts
(qty 2)
Step 1
Use four #10-32x3/8'' Machine screws to attach the 21'' track from
your Keyboard tray to the bottom half of the Corner sleeve.
Step 2
Take the Corner sleeve top and position it over the Corner sleeve
bottom as shown.
Install the Barrel nuts through the holes in the Corner sleeve bot-
tom as shown and loosely attach them to the threaded posts in
the Corner sleeve top. Do not tigthen the Barrel nuts until Step 4.
Step 3
If your L-shape desk has a small support bracket attached under
the inside corner at the seam where the Main and Return desktop
meet, remove it before proceeding to Step 4.
Step 4
Slide the Corner sleeve at a 45° onto the inside corner of the desk-
top. Once it is in place, tighten the Barrel nuts to secure it.
Step 5
Using eight #10x5/8" Wood screws where shown, attach the Cor-
ner sleeve bottom and the Keyboard tray track to the desktop.
If you own a drill, you can make pilot holes to make it easier to
install the screws. Using a 1/8" diameter drill bit, drill pilot holes
in the eight locations shown ensuring that you DO NOT DRILL
DEEPER THAN 1/2".
Step 6
Attach the Back bumper through the middle hole at the back of
the track as shown using a screw from the Keyboard tray kit as
shown.
These parts are provided with your Keyboard Tray:
21'' Keyboard tray track
Track guard
®
#10x5/8'' Wood screws
(qty 8)
Back bumper
