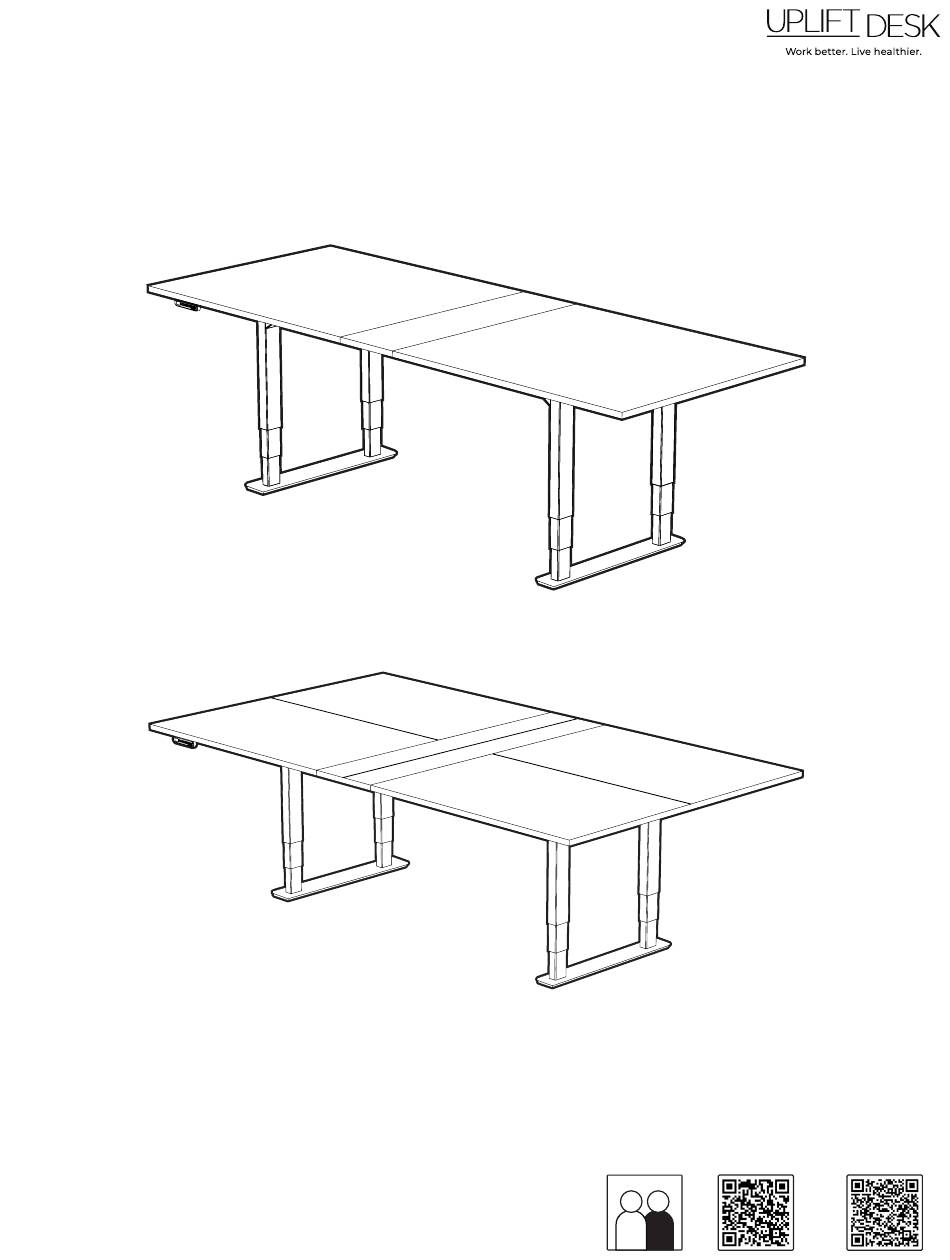

Height Adjustable Conference Tables
42" Wide and Ping-Pong Size
UPL961 and UPL962
42" Wide Conference Table
shown with center leaf section installed

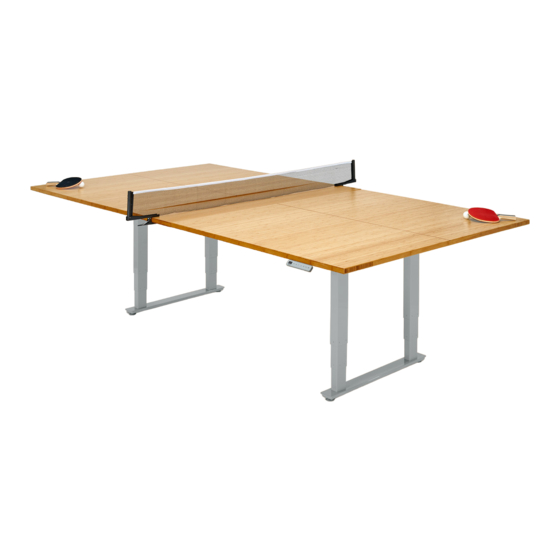

Ping-Pong Size Conference Table
shown with center leaf section installed
For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email
support@upliftdesk.com ©2024 UPLIFT Desk®. All Rights Reserved. The following U.S.
Patents apply to this product, Patent No.: US 11, 109, 672 B2
Two person
Scan QR code for
assembly
Conference Table
webpage
Scan QR code for
Ping-Pong Table
webpage
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Uplift Desk UPL961
Summary of Contents for Uplift Desk UPL961
- Page 1 Scan QR code for assembly Conference Table Ping-Pong Table webpage webpage For assembly assistance, visit upliftdesk.com/contact, call 800-349-3839, or email support@upliftdesk.com ©2024 UPLIFT Desk®. All Rights Reserved. The following U.S. Patents apply to this product, Patent No.: US 11, 109, 672 B2...
- Page 2 WARNING: Never use the desk if the power cord or plug becomes damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death.
- Page 3 Desk Spacing and Clearance Distances Desk image is for reference only and may not match your desk model. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 4: Package Contents
Package Contents Components (packed in multiple boxes) Crossbar End Crossbar Rail Side Bracket Control Box Keypad qty 4 qty 4 qty 4 qty 2 Type varies Power Cable Wire Support Foot Control Extension Cable Management Tray Bracket qty 2 Box Bracket qty 4 qty 3 (2 long &... - Page 5 Parts Diagram Side Bracket Crossbar End Support Bracket M8x8 Set Screw Crossbar Rail Support Bracket M6x10 Machine Screw Crossbar Rail Side Bracket Support Bracket M6x10 Machine Screw M6x14 Machine Screw Foot © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 6: Step 1 - Inventory Of Parts
Assembly Instructions Assembly Instructions Step 1 - Inventory of Parts A. To avoid damage to the floor or tabletop, assemble the conference table on a clean carpet or blanket. B. Lay out all parts from each box and ensure you have everything listed in the package contents of this manual before throwing away any packaging. -
Page 7: Step 4 - Attach Legs
Washer (H5) through each Crossbar End and into the tabletop as shown. B. Once all four screws are started, tighten them but be careful to not overtighten to avoid stripping. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... -
Page 8: Step 9 - Attach Feet
E. Do one final tightening of all foot screws. Tight foot screws significantly improve stability. Step 10 - Attach Keypad UPLIFT Desk Conference Table tops include a set of Keypad mounting holes on both the left and right hand sides of each main section of the tabletop. -
Page 9: Step 12 - Connect Cables
E. Connect the Keypad cable into the Control Box port labeled “HS”. The Control Box port labeled “F” is used to connect the Bluetooth Adapter (FRM125) for use with the UPLIFT Desk App. The Control Box port labeled “DC” is used to connect low voltage accessories with compatible connectors. - Page 10 Accessory Installation If you have purchased accessories that attach to your conference table such as Casters, Wire Management, CPU Holders, or Desk Drawers, it is easiest to install them now before flipping the table over. Refer to the assembly instructions provided with those products.
- Page 11 Side Bracket while the larger plugs fit in the holes further away from the sides of the table. See images for l16mm Plug reference. Large Hole Plugs (H18). Small Hole Plugs (H17). Large Hole Plug Small Hole Plug © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Table Placement To avoid injury or damage to the table, we recommend using three to four people to flip the assembled conference table over. When preparing to flip the table, be aware of loose cables. A. With one person located at each end of the table and one or two people along the long side with the Keypad as shown, begin to tilt the table up slowly so that the Keypad is facing up and the far ends of the Feet are...
-
Page 13: Keypad Lock
Programming instructions for Paddle Keypads come with the keypad. Programming (Advanced Keypads only) These UPLIFT Desk programming instructions are compatible with all UPLIFT Advanced Keypads except the Advanced Paddle Keypad. For Advanced Paddle Keypad programming steps, refer to the instructions provided with that Keypad. -
Page 14: Units Of Measurement
Units of Measurement One-Touch, Constant-Touch, or Double-Tap Switch between inches and centimeters on your display: One-touch is the default setting of the control box and 1. Hold the down button until the desk reaches its lowest requires only a single touch of a keypad button to move position. -
Page 15: Starting And Stopping
If the error message persists after performing the reset procedure or if there is a height difference between the Legs of more than 1.5”, email us at support@upliftdesk.com or call 800-349-3839. Perform the desk reset procedure any time the desk is unplugged or loses power. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 16 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
