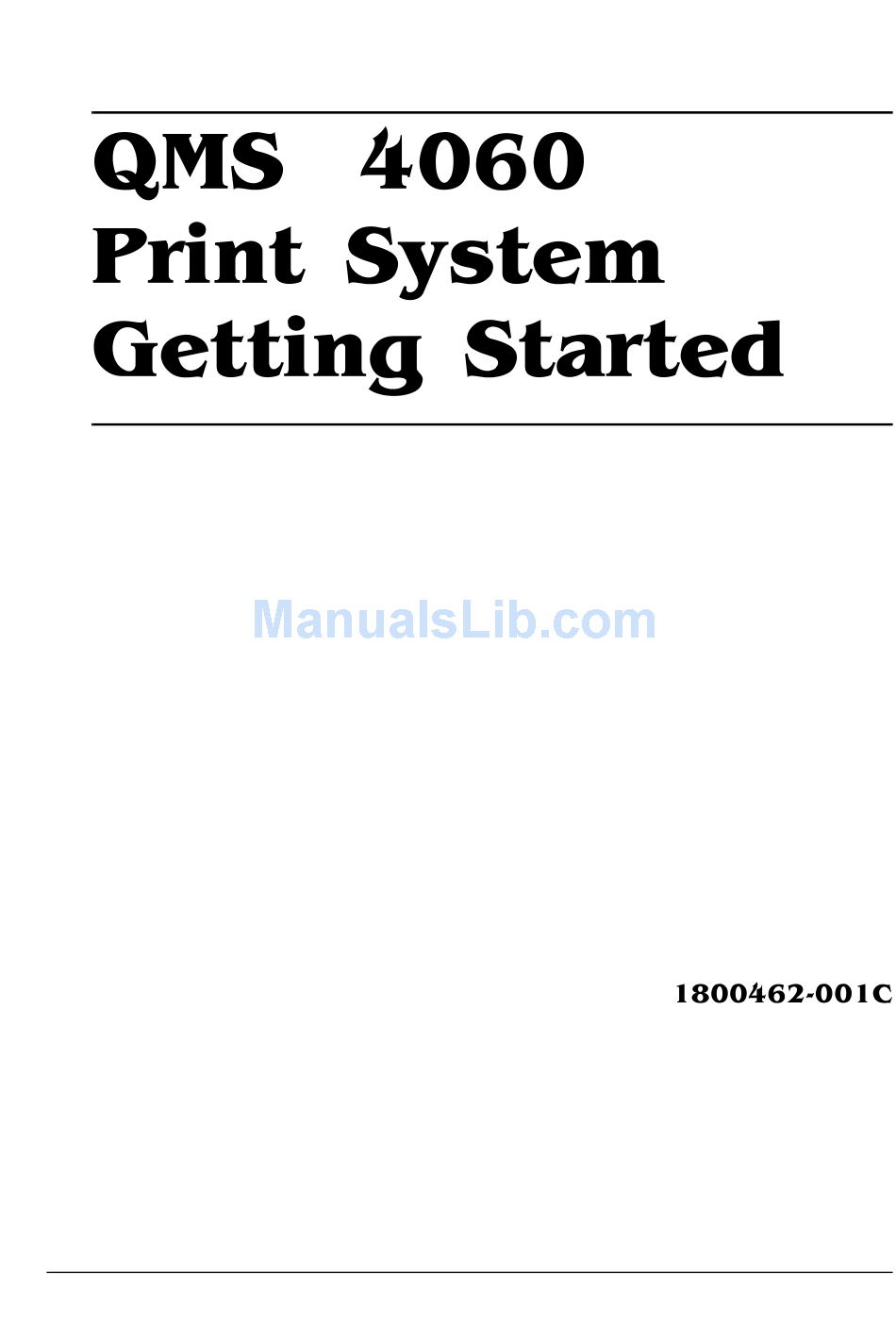

Page 1 ®...
Page 2 The following are trademarks or registered trademarks of their respective owners. Other product names mentioned in this manual may also be trademarks or registered trademarks of their respective owners. Registered trademarks are registered in the United States Patent and Trademark Office; some trademarks may also be registered in other countries.
Page 3 About the Printer ...1-2 About the Documentation ...1-3 Manuals on CD-ROMs 1-3 Standard Product Documentation 1-5 Related Documentation 1-8 About This Manual 1-8 Typographic Conventions 1-10 Printer Features ...1-11 QMS Crown Technology 1-11 Media Flexibility 1-14 PostScript Level 2 Compatibility 1-14...
Page 4: Table Of Contents
Checking Shipment Contents ... 2-6 Registering the Printer ... 2-7 Unpacking the Printer ... 2-7 Removing the Box 2-8 Moving the Printer off of the Pallet 2-12 Removing Shipping Restraints 2-16 Getting to Know Your Printer ... 2-20 Installing Consumables ... 2-22...
Page 5 What You Need for a Parallel Interface 3-3 Making the Connection ...3-4 PC Printing Software ...3-5 Installing a PostScript Printer Driver 3-5 Notes on Installing Printer Description Files 3-6 Printing from the PC ...3-9 What's Next? ...3-10 Introduction ...4-2 What's Included in CrownNet ...4-3...
Page 6 Macintosh Printing Software ... 5-3 Installing Macintosh Utilities 5-3 Installing Macintosh Printer Drivers 5-3 Installing LaserWriter 8.x and the QMS 4060 4.x PPD 5-4 Macintosh Printer Description Files for Quark and Adobe Applications 5-5 If You Have Trouble ... 5-6 Introduction ...
Page 7 3000-Sheet Large-Capacity Output Stacker ... C-22 What's in the Kit? C-22 Unpacking the 3000-Sheet LCOS C-22 Hardware Contents C-25 Installation Procedure C-26 Preparing the Printer C-32 Connecting the 3000-Sheet LCOS to the Printer C-41 Connecting Cables and Turning on the LCOS C-43...
Page 8 Using the 3000-Sheet Large-Capacity Output Stacker C-45 Adjusting the Paper Guides C-47 Custom Tray ...C-50 Custom Tray Installation C-50 Standard Paper Sizes C-53 Security Key ...C-54 What's in the Kit? C-54 Procedure C-55...
Page 9: About The Printer
“About the Printer” on page 1-2 “About the Documentation” on page 1-3 “Printer Features” on page 1-11...
Page 10 The QMS 4060 Print System (base model) is a powerful, but easy- to-use 40-page-per-minute monochrome laser printer offering The next-generation Crown operating system High-performance processing Innovative network features Flexible emulations support Toner conservation and energy efficiency An assortment of printer fonts The printer and some of its options (shown in the diagrams below) are briefly introduced in the “Printer Features”...
Page 11 This section gives you an idea of how we’ve organized information and which documents you’ll probably refer to the most. The manuals included on the QMS 4060 Print System Documentation and QMS Software Utilities CD-ROMs are in Adobe Acrobat PDF for- mat.
Page 12 Your PDF-formatted manuals will empower you to take full advantage of all the capabilities of your printer. When you use Acrobat to view your manuals, keep the following tips in mind for using some of the navigation features built into Acrobat and your manuals.
Page 13 1 (800) 523-2696 for purchase information. Elsewhere, refer to appendix A, “QMS Customer Support.” In addition, many applications, utilities, and printer drivers on the QMS Software Utilities CD-ROM are available on alternate media. Contact your QMS vendor for media availability and purchase infor- mation.
Page 14 QMS 4060 Print System Reference 4060 Documentation CD-ROM QMS 4060 Print System Options 4060 Documentation CD-ROM QMS Crown Remote Console User’s Guide Software Utilities CD-ROM CrownNet Setup Guide Software Utilities CD-ROM Refer to this manual as you configure the printer initially and when you change configuration.
Page 15 The DOCs supported by your printer are listed in appendix C, “Document Option Commands,” of the Reference manual. In most cases only advanced users or system administrators need this information.
Page 16: Introduction
Sources This manual contains detailed, illustrated instructions to guide you as you unpack and set up your printer and connect it to a host (such as an IBM or compatible PC or an Ethernet network). In addition, it intro- duces you to the printer’s control panel. This manual is divided as fol- lows.
Page 17 Control Panel QMS Customer Support Configuration Menu Installing Options Explains how to connect the printer to an IBM PC or compatible computer using the parallel port. Explains how to connect the printer to a network using the built-in Ethernet (CrownNet) port, install the software, and configure both the interface and the network.
Page 18: Typographic Conventions
Text you type, and messages and information displayed on the screen Variable text you type; replace the italicized word(s) with information specific to your printer or computer Information displayed in the printer message window PostScript operators and DOS commands...
Page 19 The QMS 4060 Print System provides 40 ppm (pages-per-minute) of letter/A4 size paper at 300 dpi or 600 dpi resolution. In addition, it handles a variety of other paper weights and sizes, including 11'' x 17'' (279 x 432 mm).
Page 20 The QMS 4060 Print System prints almost any file sent in a language ESP technology understands, whether you have one, two, or more hosts, and whether you are communicating through an Ethernet, Centronics or bidirectional IEEE 1284 parallel, or a second network interface.
Page 21: Printer Features
(or the next job). These page images are available as soon as the current page is printed. For example, while the QMS 4060 Print System is actually printing the third page of a five-page document, pages four, five, and the next job in the queue are already compiled into the com- pressed data format.
Page 22 User Benefit—You have the option of printing on a variety of media sizes in both portrait and landscape orientations. The QMS 4060 Print System provides PostScript Level 2 page description capabilities via QMS-developed emulations that are com- patible with Adobe’s Level 2 language, while providing additional capabilities.
Page 23 PostScript and PCL print jobs that require finer detail, such as good camera-ready copy or for CAD drawings that demand tighter angles. The QMS 4060 Print System delivers 40 simplex letter/A4 size ppm at 300 x 300 or 600x600 dpi resolution using the new NEC 4300 pro- cessor operating at a 100 MHz.
Page 24 See appendix A, “QMS Customer Support,” for locations and telephone numbers. You can connect a computer directly to the printer’s parallel interface or use the Ethernet interface to connect to a wide variety of micro- computers, workstations, minicomputers, and mainframe computers on four different networks.
Page 25 The user-friendly control panel allows you to configure your printer. The printer uses the control panel to communicate with you by provid- ing messages about its status, including any conditions that require your attention.
Page 26: Software Loadable System
Your printer has 16 resident PCL 5e type face families in 25 symbol sets each: 51 resident scalable PCL 5e fonts (including Intellifonts), many in up to 32 symbol sets: and 40 HP-GL fonts.
Page 27 (such as duplexing or finishing options), and number, complexity, and size of jobs per user. The QMS 4060 printer controller contains a “real time clock” which automatically stamps the time and date on your accounting information.
Page 28 The Conserve Toner option allows you to increase the life of the printer’s toner. You can set Conserve Toner on a per-job basis or for all print jobs. In addition the printer can actually recycle the waste toner through the machine again for increased toner life.
Page 29 User Benefit—Plug and play reduces the time wasted on technical problems and increases your productivity. The QMS 4060 Print System offers many options to expand its capa- bilities. Contact your QMS vendor for purchase information. See appendix A, “QMS Customer Support,” for locations and telephone numbers.
Page 30 User Benefit—Optional fonts increase the printer’s functionality and allow you to create more distinctive documents The QMS 4060 Print System includes an internal IDE hard disk and is expandable by connecting up to three external SCSI hard disks. Hard disks provide virtual memory capabilities as well as storage for downloaded character bitmaps, job spooling, outline fonts, forms, and other files.
Page 31 QMS Crown print systems. It enables the QMS 4060 Print System to print images at or near the rated engine speed and eliminates the need for a PC dedicated to rasterizing images.
Page 32: Large-Capacity Input Feeder
User Benefit—Provides and easy migration path for users of legacy line printers to new laser print systems. Your QMS 4060 Print System is configured with 32 MB of interleaved RAM. It can support up to 128 MB of RAM with additional matched pairs of SIMMs (single-in-line memory modules).
Page 33 User Benefit—This feature allows you to restrict access to printer configuration information to those users with valid passwords, saving time and money and ensuring that default settings are not changed inappropriately.
Page 35: Finding A Good Location
“Finding a Good Location,” “Checking Shipment Contents,” “Unpacking the Printer,” “Getting to Know Your Printer,” “Installing Consumables,” “Loading the Paper Trays,” “Printing a Start-up Page,” “Installing Options,”...
Page 36 This chapter explains how to set up your QMS 4060 Print System for the first time. It includes information on finding a good location for the printer, unpacking and checking the shipment contents, installing toner and developer, loading the trays, turning the printer on, and printing a start-up page.
Page 39 Your printer requires a properly grounded AC outlet with a power range of ±10% of the rated line voltage (100-120 V or 200-240 V). Make sure that the capacity of the electrical outlet is at least 1.2 times that used by the printer. Noise-generating equipment should not be connected to the same electrical outlet as the printer.
Page 40 In addition to this manual, your shipment consists of the following items: QMS 4060 Print System Documentation CD-ROM — QMS 4060 Print System Getting Started —QMS 4060 Print System Operation — QMS 4060 Print System Reference — QMS 4060 Print System Options QMS Software Utilities CD-ROM Consumables Starter Kit (See “Check the Starter Kit,”...
Page 41 » Note: Save the packing materials in case you have to move or ship the printer to a new location. See appendix C in the Operations guide, “Repacking the Printer,” for procedures on moving or shipping the printer.
Page 42 Turn the plastic lock inserts counterclockwise and pull out as shown below. » Note: You may need pliers to turn the knobs. There are 16 plastic lock inserts.
Page 43 Remove the box lid. Remove the starter kit from the top of the printer box. Lay the starter kit aside for now. » Note: The starter kit contains supplies needed to set up the printer for immediate use.
Page 44 Remove the cardboard sleeve from the pallet.
Page 45 Remove the six foam shipping blocks and the plastic cover.
Page 46 Locate wheels and leveling feet on the bottom of the printer. Remove the wrench taped to the pallet.
Page 47 Caution : Make sure all four leveling feet are fully raised before moving the printer. WARNING! The printer is heavy, so two people should roll it off of the pallet. ACHTUNG! Der Drucker ist schwer und solte von 2 Personen...
Page 48 Flip over the two small wood spacers and place them in the groove at the ramp end of the pallet.
Page 49 Gently roll the printer to the edge of the pallet and down the ramp to the floor.
Page 50 Remove all of the shipping tape from the outside of the printer. Open the front door of the printer by gently pulling the right side of the front door. Find the two shipping blocks near the center.
Page 51 While holding the transfer assembly guide, remove the sponge shipping block, then lower the transfer assembly guide. Turn lever b1 to the right to the OPEN position.
Page 52 The upper foam shipping block has a string and an orange label attached. Grasp the orange label and the block and pull them toward you. A black rubber shipping restraint attached to the string and the white foam shipping block will come out at the same time.
Page 53 Grasp the orange tab on the magnetic roller protector and pull toward you.
Page 54 Use these illustrations to get acquainted to the external components of your QMS 4060 Print System.
Page 56 Note: After installing consumables for the first time (except for paper) » all subsequent changes of consumables will require you to tell the printer you have performed the maintenance through the configuration menu. See chapter 2, “Consumables,” in the Operation manual.
Page 57 Check the starter kit for these components. Some of the components are packaged in cardboard boxes for shipment. You do not have to unpack these components until you’re ready to install them.
Page 58 Find the fuser box in the starter kit, remove the box from the starter kit and unpack the fuser from the box. Remove the fuser from its packaging. Open the front door of the printer. Turn lever b1 to the right to unlock the internal components.
Page 59 Insert the fuser into the printer by aligning the fuser with the guides inside the printer. Gently push the fuser all the way to the back of the printer to make sure that it is properly seated.
Page 60 If the fuser does not seat properly Hold the fuser up against the printer using light pressure. Carefully rotate the decurler roller knob clock wise until the fuser seats flush against the printer.
Page 61 Caution: The drum unit is sensitive to bright light. Do not remove the drum unit from its protective bag until you are ready to install it. Store the cartridge in an environment that is not subject to extreme heat or humidity, salty air, or corrosive gases, such as aerosols.
Page 62 Note: After removing the drum unit from its protective bag, do not touch the OPC drum on the unit because it may deteriorate the drum and reduce print quality. Also, we recommend that you keep the bag for use if you should have to remove the drum from the printer.
Page 63 While holding the drum by the handle, set it on a solid sur- face and carefully remove the protective cover from the drum. Make sure lever b1 is turned to the right to the open position.
Page 64 Use the drum handles on the top and front to insert the drum unit along the guide rails and gently push it all the way in to make sure it is seated.
Page 65 Gently push on the drum unit and turn the thumbscrew clockwise to lock the drum unit in place.
Page 66 Remove the transfer assembly from the starter kit and remove it from its shipping box and cover. Make sure lever b1 is turned to the right. Insert the transfer assembly into the transfer assembly guide. Locate the alignment pin on the end of the transfer assembly. Insert the alignment pin of the transfer assembly into the left rail of the transfer assembly guide at a slight angle.
Page 67 Slide the transfer assembly all the way into the transfer assembly guide until it clicks into place. Lift the transfer assembly guide and lock it back into place. Turn lever b1 to the left to the SET position.
Page 68 Place the cleaning brush from the starter kit in the front door cleaning brush holder. You will use this to clean the transfer assembly when doing main- tenance. Close the printer’s front door....
Page 69 Remove the ozone filter from the starter kit, and take it out of its packaging.
Page 70 Slide the ozone filter into the ozone filter holder on the rear of the printer. Caution: Failure to install the ozone filter could result in poor print quality and possible damage to internal printer components. Before you load paper, you must remove the shipping restraints from the trays.
Page 71 Place some letter size paper in one of the trays. » Note: This paper is only for use for starting up the printer. See “Loading the Paper T rays,” for more information on setting up the paper trays....
Page 72 Note: The power cord for your QMS 4060 is keyed to operate only » with this printer. Other power cords will not fit this printer. Caution : Make sure that the printer power switch is turned off. Plug the power cord into the connector on the rear of the printer on the lower left-side.
Page 73 Turn on the printer. The main power switch is located at the front of the printer on the bottom-right side. The stand-by switch is located on the front panel....
Page 74 After a brief warm-up (less than 2 minutes) the printer will give you a message on the display message window. ENTER DEVELOPER Online Tray Caution: Before adding developer and toner to the printer you must follow this procedure to power on the printer. The printer needs this sequence to properly prepare the developer and toner hoppers.
Page 75 The display message window shows OPEN UPPER RIGHT DOOR Offline Menu Continue with the next procedure. Open the front cover of the printer. Turn lever b1 to the right to the OPEN position. Open the upper-right door. LETTER LETTER LEGAL...
Page 76 Slowly and firmly lift up then pull down and out at an angle to remove the plastic protective cover. Turn lever b1 left to the SET position. Close the front door of the printer.
Page 77 Remove the toner bottle from the starter kit and remove it from its packaging. » Note: The life of the initial toner bottle is less than 6000 pages. Shake the contents of the toner bottle to loosen any toner that has settled and packed during shipment.
Page 78 Open the toner fill lid. Line up the guide pins on the bottle with the guide pin slots on the toner fill opening. Insert and turn the toner bottle clockwise 180° (1/2 turn) to start filling.
Page 79 Tap the toner bottle several times to make sure all of the toner has emptied. » Note: It takes about 30 seconds for the bottle to empty. When the bottle is empty, turn the toner bottle 180° (1/2 turn) counter-clockwise and lift up to remove. Close the toner fill lid.
Page 80 Dispose of the toner bottle. Note: The toner bottle is made of recyclable materials. Dispose » of it in accordance with local regulations. Toner recycling will add 20-30% of life to a toner bottle. You have the option of recycling waste toner or disposing of it. For optimal print quality, we do not recommend recycling.
Page 81 Remove the developer bottle from the starter kit and remove it from its packaging. Check the message window. After you opened the upper right cover earlier it should display FILL DEVELOPER SELECT WHEN DONE Offline Menu LETTER LETTER LEGAL Select Next Previous...
Page 82 Open the developer fill lid. Line up the guide pins on the bottle with the guide pin slots on the developer fill opening. Insert and turn the developer bottle clockwise 180° (1/2 turn) to lock the bottle in place and begin filling.
Page 83 When the bottle is empty, gently tap it several times to make sure all of the developer has loaded. Turn the developer bottle 180° counterclockwise and lift it up to remove it.
Page 84 Close the developer fill lid. Press the Select button on the control panel. The display message window shows INSERT BOTTLE SELECT WHEN DONE Offline Menu 10 Remove the small cap from the side of the developer bottle. 11 Turn the cap around and place it in the storage position on the bottle as shown.
Page 85 The printer will begin an automatic cycle to set the toner density. After about two minutes you should get a start-up page. The QMS 4060 Print System includes three 500-sheet adjustable paper trays. All three paper trays hold either A3, A4, A5, B4, B5,...
Page 86 » letter paper must be loaded only when the tray is set to letter size). Since the paper tray sends a paper size signal to the printer controller, using a wrong size paper will cause jamming or the image positioned incorrectly on the page.
Page 87 Turn the thumbscrew counter-clockwise to unlock one of the paper size guides. You should be able to lift up and remove the paper size guide after unlocking it. Move the paper size guide to the appropriate slots to align it with the paper size marker.
Page 88 Turn the dial to clockwise to lock the paper size guide. Repeat steps 1-5 for the other two paper size guides. » Note: If you are setting up the tray for 11 " x17 " (ledger), the left paper guide is stored in a slot near the front section of the tray. Set up the tray paper size tabs on the rear of the paper tray.
Page 89 Open the plastic bag in the starter kit containing the paper- size cards. Break off the label that indicates the correct paper size for each tray. Pull out each tray and push out the paper-size holder. Place the paper-size lable in the paper-size holder of each tray.
Page 90 Note: Paper is packed in reams of 500 sheets. Do not unpack the » paper above the printer as this might cause particles to fall into the printer components. Note the arrows on the wrapper. They show print side of the paper.
Page 91 Ensure that the paper stack lies flat and does not exceed the top limit mark. Caution: Never mix the types of paper loaded in a tray. This could result in multiple sheet feeds and other paper handling problems. If the paper doesn’t fit properly in the tray recheck your paper guides to make sure they are in the proper position.
Page 92: Printing A Start-Up Page
When you turn on the printer, a start-up page prints. This page gives you an overview of your QMS 4060 Print System. The following information prints on the start-up page: Printer product name Cumulative number of printed sheets Amount of resident RAM (in megabytes)
Page 93 (LCOS), see appendix C, “Installing Options,” in this manual for instal- lation procedures. Now that you’ve set up your printer, go to chapter 3, “Connecting to a PC,” chapter 4, “Connecting to an Ethernet Network,” or chapter 5, “Connecting to a Macintosh,” of this manual to connect your printer to...
Page 95: Connecting To A Pc
“Connecting to a PC” “Making a Parallel Connection” “Making the Connection” “PC Printing Software” “Printing from the PC”...
Page 96 If you’re connecting your PC via the parallel interface Connect the printer to the PC as described in “Making a Par- allel Connection” and in “Making the Connection” . Turn on both the printer and the PC.
Page 97 If not, you’ll need to purchase the cables from your QMS vendor or a local com- puter store. To connect your printer to a single PC, you need a parallel cable with a 36-pin male and a 25-pin male connector. »...
Page 98 Caution: If you’re connecting the printer to a single PC via the parallel interface, turn off both systems first. Connect the PC and the printer using a parallel cable. Connect the 25-pin end of the cable to the PC’s parallel port.
Page 99 However, if you want to be able to use all your printer's special fea- tures (like collation, 300x300 dpi and 600x600 dpi printing), or if you've never printed to a PostScript printer before, we recommend...
Page 100 You may delete the PPD and/or PDF files if you don’t use applications that require them. Applications may require special files, drivers, and/or configurations to produce correct output on your QMS 4060 Print System. Check...
Page 101 From Page Setup dialog box of the Photoshop application, select Screens. Then click the Use Printer’s Default Screen box to enable it. We recommend that you install a Windows Printer Description (WPD) file instead of the QMS Level 2 Windows driver with PageMaker 5.0, because PageMaker requires a Microsoft 3.56 or higher Windows...
Page 102 WPD files for QMS printer are included in the /WPDS/QMS subdirec- tory on the Windows driver disk so that support for the QMS 4060 can be added to any WINDOWS 3.0 PostScript driver. The WPD files on the Windows drivers disk are for QMS printers and other PostScript printers.
Page 103 Copy the QuarkXPress PDF from its installation directory to the QuarkXPress directory on your PC. Restart QuarkXPress. Check the Page Setup menu to verify that your printer is in the list of available printers. See your QuarkXPress documentation for detailed information on installing PDFs.
Page 104 Now that you’ve connected your printer to a PC, continue with chapter 6, “Control Panel” to learn about the printer’s control panel keys, indi- cators, and message window.
Page 105: What's Next?
“What's Included in CrownNet” on page 4-3 “Setting up the CrownNet Interface” on page 4-4 “Network Connection” on page 4-4 “Software Installation” on page 4-6 “Configuring the CrownNet Interface” on page 4-7 “Configuring the Network” on page 4-7 “What's Next?” on page 4-8...
Page 106 CrownNet Manager, and CrownNet Print Utility for Windows). The Ethernet port, also referred to as the QMS CrownNet network interface, is a combination of hardware and host software that allows your QMS 4060 printer to be connected to an Ethernet network that supports the following: Operating System...
Page 107 CrownNet consists of the items listed below. Your printer came stan- dard with an Ethernet network interface and these items accompa- nied your printer. QMS Software Utilities CD-ROM with the following software: CrownAdmin for Macintosh CrownAdmin 3 and on-line user’s guide for AIX, HP-UX,...
Page 108 These instructions are also included in readme files in the appropri- ated directories on the CD-ROM. The method you use to connect your printer to the network depends on the type of connection you’re using to an Ethernet network (described below).
Page 109 Ethernet cable, your network’s operation is disrupted during the connection process. Turn off the printer, and unplug the power cord. If the BNC “T” connector is already installed, go to step 3. Otherwise, attach one section of thin-wire Ethernet cable to one end of the BNC “T”...
Page 110 Twisted-pair Ethernet connections use RJ45 connectors. Turn off the printer, and unplug the power cord. Connect one end of the twisted-pair Ethernet cable to the RJ45 port on the CrownNet interface. Connect the other end of the cable to the 10BaseT concen- trator.
Page 111 Complete instructions for configuring the CrownNet interface using EtherTalk, Microsoft Windows Network, NetWare, OS/2 LAN Man- ager/LAN Server, and TCP/IP are included in the QMS CrownNet Setup Guide on the QMS Software Utilities CD-ROM. Complete instructions for configuring the network for CrownNet including EtherTalk, Microsoft Windows Network, NetWare, OS/2 LAN Manager/LAN Server, and TCP/IP are included in the QMS CrownNet Setup Guide on the QMS Software Utilities CD-ROM.
Page 112: If You Have Trouble
Problems” section of chapter 9, of the Operation guide for troubleshooting tips. Now that you’ve connected your printer to an Ethernet network, skip to chapter 6, “Control Panel” to learn about the printer’s control panel keys, indicators, and message window.
Page 113: Connecting To A Macintosh
“Connecting to a Macintosh” “Macintosh Printing Software”...
Page 114 This chapter describes how to connect your printer to a Macintosh via the Ethernet or LocalTalk port. To connect to a Macintosh you must do the following: Turn the power off on the printer. Connect the printer to the Macintosh.
Page 115 However, if you want to be able to use all your printer's special fea- tures (like collation, 300x300 dpi and 600x600 dpi printing), or if you've never printed to a PostScript printer before, we recommend...
Page 116: Installing Laserwriter 8.X And The Qms 4060 4.X Ppd
See “Macintosh Printer Description Files for Quark and Adobe Applications” for information. Although the QMS 4060 supports LaserWriter 6, 7, and 8, we recom- mend using LaserWriter 8. For your convenience, LaserWriter 8 and the QMS 4060 PPD (a printer description file) are provided with your printer so you can take advantage of special features.
Page 117 Open the Ver 4.x folder inside the PPDs folder. Select the QMS 4060 printer description file in the Ver 4.x folder and drag it to the Printer Descriptions folder you cre- ated in step 4. From the Apple menu, choose Chooser.
Page 118: If You Have Trouble
PDX files in the PPDs folder in the Adobe folder in the Sys- tem Folder. If you use QuarkXPress, install the QMS 4060 PDF in the QuarkXPress folder in the PDF folder. To select the PDF, go to Quark's Page Setup dialog box. Under Printer Type, select the QMS 4060 PDF and select the Use Printer Default Screen Angles checkbox.
Page 119: Control Panel Functions
“Control Panel Functions,” “Message Window,” “Control Panel Keys,”...
Page 120 The control panel for your QMS 4060 Print System consists of 5 con- trol buttons and a backlit LCD display with a contrast control. The LCD display contains graphical and textual information on printer sta- tus and control button functions.
Page 121 Otherwise, this symbol will not appear. The printer graphic shows the size media set up for the three input trays. The currently selected tray is highlighted. If the optional large-capacity input feeder or the output stacker is installed, then the graphic shows these units attached.
Page 122 Notes The printer must be restarted for changes to this menu to take effect. You can either turn the printer off and then back on after you save the change and exit from the configuration menu, or you can wait for the change to take effect the next time you manually turn on the printer.
Page 123 The Online, Tray, Status, and Cancel buttons access frequently used printer options. The Copy function is only available when the Crown- Copy option is installed. The Online button switches the printer from on line to off line status. Press the button...
Page 124 See the “Special Pages,” section of chapter 4, “Printer Configuration,” in the Reference guide for information on the status page contents. You can print a status page whether the printer is on line or off line.
Page 125 After all jobs with the above status are canceled or after the current job is ended, dependent on your selection, the printer resumes printing other jobs that are in the queue. (See chapter 5, “Advanced Printing Features,” of the Operation guide for complete information.) You can use this button while...
Page 126 The Menu, Select, Previous, and Next buttons are used in printer con- figuration (explained in detail in chapter 4, “Printer Configuration,” of the Reference guide). Before you can use any of these buttons, press the Online button once to take the printer off line.
Page 127 Next Now you’re ready to print. For more information on the day-to-day operation of your printer, refer to the Operation guide. For more tech- nical information, refer to the Reference guide. Press the Previous button to return to the previous selection or option for the current menu.
Page 129: Sources Of Support
“Sources of Support” on page A-2 “QMS World-wide Offices” on page A-5...
Page 130 Several sources of help and information are available, depending on the type of help you need: Your local vendor (the one from whom you bought the printer) may be best equipped to help you. Your vendor has specially trained service technicians available to answer questions, and the equipment to ana- lyze your printer problems.
Page 131 When you use CompuServe, type go qmsprint to go directly to the forum where QMS is located. The QMS library sec- tion contains application notes, printer drivers, utilities, technical infor- mation, and announcement files. The QMS server provides access to technical reports, new product announcements, a trade show schedule, and other general informa- tion about QMS.
Page 132 þ The emulation you’re using þ Your printer firmware version (listed on the status/start-up pages) Fax—You can fax questions to the CRC at (334) 633-3716 (US). Provide the same information as listed above, and indicate whether you would like a faxed or a phoned reply.
Page 133 General Contact 1 (334) 633-4300 Fax 1 (334) 633-4866 Email info@qms.com Internet http://www.qms.com Information on QMS products, supplies, and accessories, and on the authorized QMS remarketer or service provider nearest you 1 (800) 523-2696 Customer Response Center (CRC) Technical Assistance 1 (334) 633-4500 Fax 1 (334) 633-3716 Internet http://www.qms.com...
Page 134 General Contact (+81)-3 3779-9600 Fax (+81)-3 3779-9650 Internet http://www.qmsj.co.jp General Contact Cra 43 DD#8-42 Officina 201 Medellin, Colombia (+57) (4) 312 13 70 Fax (+57) (4) 268 92 97 Anitech Sydney Business & Tech. Centre 52/2 Railway Parade 2141 Lidcombe NSW Australia (+61) 2–9901 3235 Fax (+61) 2–9901 3273...
Page 135 Sweden, Finland, Norway, and Denmark United Kingdom and Ireland Via della Repubblica 56 43100 Parma Italy (+39) 52–1231 998 Fax (+39) 52–1232 902 Arenavägen 41, 6th floor 121 77 Johanneshov Sweden (+46) 8–600 01 30 Fax (+46) 8–600 01 33 Saskay House Unit 24 Sunninghill Business Park Peltier Road, Sunninghill, Johannesburg...
Page 137: Menu Chart Conventions
“Menu Chart Conventions‚" “Installation Menu‚" “Operator Control Menu‚" “Administration Menu‚"...
Page 138 You may use this section as a quick reference for understanding and navigating the menu structure of the QMS 4060 Print System.The fol- lowing menu charts are provided in this section: Installation Menu Shows the configurations available when the security key is used to access the Installation Menu.
Page 139 Installation Operator Control ( Enter Operator Passwrd password) Off or On Use Operator PWD ( Enter Admin Password password) Use Admin PWD Off or On Idle Administration...
Page 140 Administration Operator Control Copies 001-999 Off, On, or Duplex Tumble Off or On Offset Stacking* Normal or Reverse Face-Up Order Off or On Collation Portrait or Orientation Landscape Upper, Middle, Inputbin Lower or Optional* Upper, Face-Up Stack* Outputbin or Face-Down Stack* On, Off, or Chain Inputbins On Any...
Page 141 Configuration Administration Timeouts Serial* Communications Parallel Network1* Network2 ESP Default Postscript Emulations PCL 5E HP-GL LinePrinter Calibration Page Header Page Header Inputbin Special Pages Trailer Page Trailer Inputbin Status Page Type Do Start Page Startup Options Do Sys Start Do Error Handler Memory Manual Config Engine...
Page 143: Sheet Large-Capacity Output Stacker
“Large-Capacity Input Feeder” on page C-2 “2000-Sheet Large-Capacity Output Stacker” on page C-10 “3000-Sheet Large-Capacity Output Stacker” on page C-22 “Custom Tray” on page C-50 “Security Key” on page C-54...
Page 144 The Large-Capacity Input Feeder (LCIF) holds 3000 sheets and increases the paper input capacity of the printer to 4500 sheets. There are two models of the LCIF: one model feeds letter-size paper and the other model feeds A4 size paper.
Page 145 Remove the sheet guide/support stand guide and support stand from the box. Save the packing material for possible repacking of the LCIF.
Page 146 Locate the support stand, the support stand guide, and the sheet guide. Open the front door of the printer. Using a Phillips screwdriver, remove the left side paper input cover by loosening the front screw and removing the rear screw.
Page 147 Attach the sheet guide to the printer using the screws you loosened and removed in step 4. Install the support stand guide using the screws attached. Lift the support stand and place on top of the support stand guide.
Page 148 Attach the support stand to the support stand guide. Pull out the support stand slide-rails until they lock in the out position. 10 Set the LCIF on the pins of the slide-rail. 11 Secure the LCIF to the support stand using the two thumb- screws.
Page 149 12 Slide the LCIF into the sheet guide on the printer, until it locks in place. 13 Adjust the leveling feet on the LCIF support stand so that the two leveling chains are just touching the floor. 14 Make sure the red alignment marks on the LCIF and the sheet guide line up.
Page 150 17 Connect the interface cable to the connector on the rear lower left side of the printer. 18 Slide the LCIF into the sheet guide on the printer, until it locks in place. 19 Turn on the printer.
Page 151 21 To load paper in the LCIF, open the LCIF door, press the but- ton on top of the LCIF, load paper, and close the door. 22 Press the Tray button on the printer control panel to select the LCIF for paper feeding.
Page 152: Your Qms Vendor
The Large-Capacity Output Stacker (LCOS) holds 2000 sheets and increases the paper output capacity of the printer to 2500 sheets. 2000-sheet LCOS Interface Cable Output Stacker Hardware After unpacking, check for the following LCOS hardware contents: Make sure that all items are included in your shipment before setting up your LCOS.
Page 153 To install the LCOS, you need the following tools: #2 Phillips screwdriver Medium flat-blade screwdriver M WARNING: The LCOS weighs approximately 90.5 lb. (41 kg). Do not attempt to lift or move it by yourself. ACHTUNG! Der LCOS wiegt ca. 32 kg; bitte versuchen Sie niemals, das Gerät alleine anzuheben oder zu tragen.
Page 154 Unpack the output paper stacker from the shipping box. With the help of another person, carefully lift the LCOS from the box and place it on the floor. Remove the plastic from the LCOS. Note: Save all packing materials for possible repacking. »...
Page 155 Loosen the nut holding the Safety Tilt Bar from the back of the LCOS in the bottom right leg. Remove the Safety Tilt Bar. Turn the bar over and replace it in the reverse direction.
Page 156 Raise the four leveling bolts on the LCOS. Remove the upper cover from the left side of the printer by removing two screws.
Page 157 Snap the paper guide into place. 10 Locate bracket B and the connect pin included in the LCOS box contents.
Page 158 11 Use a small flat-bladed screwdriver to pop out the two small panels from the bottom cover. 12 Attach bracket B to the bottom left side of the printer with the M6x12 screw and fasten the connect pin.
Page 159 13 Attach bracket A to the bottom of the LCOS. 14 Position the LCOS so that its positioning hole is aligned with the connect pin on the printer.
Page 160 LCOS position- ing hole. 16 Push the LCOS toward to the front of the printer to lock the pins into the positioning holes. 17 Fasten bracket A to bracket B on the printer with the M4x6...
Page 161 LCOS securely against the printer. 19 Plug the signal cable form the LCOS into the connector on the rear bottom-right of the back of the printer. » Note: Make sure the main power switch is in the off position.
Page 162 Fuer den Netzanschluss dieses Geraetes ist ein geprueftes Kabel zu verwenden. Fuer einen Nennstrom bis 6A ist eine Leitung nicht leichter als H05VV-F3G 0,75 mm² oder H05VVH2- F3G 0,75mm² einzusetzen. 21 Turn on the main power switch on the LCOS, and then turn on the printer.
Page 163 » Note: If the message panel displays an error message when you turn on the power, try turning off the LCOS and printer and turning on the LCOS again and then the printer. 22 Check the printer display panel for the LCOS graphic. This lets you know the LCOS is connected properly.
Page 164 The 3000-sheet Large-Capacity Output Stacker (LCOS) holds 3000 sheets and increases the paper output capacity of the printer to 3500 sheets. 3000-sheet LCOS Interface cable Output stacker hardware Remove the accessories box from the outer box.
Page 165 Remove the power cable. Set the box upright and remove the cardboard positioned on top of the LCOS. » Note: The legs and casters should be on the bottom of the box. Firmly grasp the top and bottom of the LCOS and roll it slowly out of the box, ensuring that the LCOS doesn’t fall back as you do so.
Page 166 Open the LCOS door and remove the tape on the paper guides inside the LCOS.
Page 167 After unpacking, check for the following LCOS hardware contents: Make sure that all items are included in your shipment before setting up your LCOS. If any items are missing or damaged, contact your shipping company or your QMS vendor. See Appendix A, “QMS Cus- tomer Support,”...
Page 168 The following table shows the screws and bolts you need to install the LCOS. These are included with the LCOS accessories. Screws and Bolts Examples To install the LCOS, you need the following tools: #2 Phillips screwdriver Medium flat-blade screwdriver M WARNING: The 3000-sheet Large-Capacity Output Stacker weighs over 66 pounds (30 kg).
Page 169 After unpacking is complete, use the following procedure to install the LCOS. Attach the stopper to the lower rear of the LCOS using the two screws (M4 x 6). » Note: The stopper prevents the LCOS from tipping backward.
Page 170 Slip the hooks on the back of the tray over the tray base, and then attach the tray to the tray base using the six screws (M4 x 12) and washers. Note: The tray has six pre-drilled holes for the screws. »...
Page 171 Locate the left paper guide, and slide it through the left slot of the paper tray. The paper guides are labeled T,L for top-left and T,R for top-right. The shorter arm should be on top, and the flange should point inward.
Page 172 Locate the paper size markers and the alignment hole that corresponds to the desired paper size. » Note: Paper size markers appear on both the top and bottom of the LCOS. » Note: When you first install the LCOS, we recommend that you set the paper guides as far apart as possible (A3/A4 setting).
Page 173 Repeat steps 3 through 5 for the right paper guide.
Page 174 After assembling the LCOS, prepare the QMS 4060 Printer for attach- ment of the LCOS. Remove the paper output cover from the printer by removing two screws.
Page 175 Remove the left screw in the upper cover. Insert spacer B bolt into the hole in the upper cover where you just removed the screw » Note: The bolts are labeled. Make sure you use the correct bolt.
Page 176 Remove the right screw in the upper cover.
Page 177 Insert spacer bolt A into the hole where you just removed the screw.
Page 178 Snap, the paper guide into place.
Page 179 Remove the two screws in the lower cover.
Page 180 Insert the two C spacer bolts into the lower cover holes where you just removed the screws. » Note: The bolts are labeled. Make sure you use the correct bolt. The spacer bolts are labeled. Make sure you use the correct bolts.
Page 181 Use a small flat-bladed screwdriver to pop out the two small panels from the bottom cover.
Page 182 10 Use the two knurled screws (captive) to install the stopper guide where the square panels were located.
Page 183: Preparing The Printer
11 Use the four knurled screws (captive) on the joining frame to attach the joining frame to the spacer bolts. After assembling the LCOS and preparing the printer, you’re ready to attach the LCOS to the printer. Roll the two units together.
Page 184 Lift the LCOS a little to make sure that the connecting pin on the stopper guide is aligned with the stopper hole on the LCOS, and then push the LCOS against the printer.
Page 185 » Note: To disconnect the LCOS from the printer, pull the latch lever towards you and move the LCOS away from the printer. Once the LCOS and printer are attached, you’re ready to connect the interface cable and power cable.
Page 186 Plug the interface cable from the LCOS into the connector on the back of the printer near the bottom. Plug one end of the power cable into the LCOS and the other end of the cable into a grounded outlet.
Page 187 Check the printer display panel for the LCOS graphic. This lets you know the LCOS is connected properly. IDLE Online Tray Select the LCOS as the output bin through the Operator Con- trol/Outputbin configuration menu. This section provides information on how to adjust the paper stopper and paper guides on the LCOS.
Page 188 Locate the paper stopper on top of the LCOS and position it as shown. (left) (right)
Page 189 Locate the paper size markers on the stopper, and slide the paper stopper to the desired paper size » Note: If you’re printing on A3 or Ledger paper, you don’t need the paper stopper. Lift the paper stopper up and out of the way.. Paper size choices are Legal, Executive, B5, and A4/LTR.
Page 190 Locate the paper guides on the LCOS. There are two paper guides, one on each side of the LCOS.
Page 191 Use the paper size markers at the top and bottom of the LCOS to reposition the guide to the desired paper size. Tighten the knurled screws (captive) to reattach the guide to the printer. Repeat this procedure for the guide on the other side of the LCOS.
Page 192: Custom Tray
The custom input tray on your QMS 4060 Print System allows you to print three more paper sizes—Statement, B4(ISO) and B5(ISO). This tray also supports all the normal paper sizes supported on the stan- dard trays. Installation of the tray involves replacing one of the standard input trays.
Page 193 » Note: The custom tray can be installed in any of the three standard tray positions—upper, middle, or lower. The printer can support up to three custom trays. Insert the custom tray at an angle, then lower it and push it...
Page 194 Slide the paper guides to fit your media. Place your custom sized media in the custom tray. The height of the media stack should not exceed the full mark on the paper guides.
Page 195 Set up the tray media size tabs on the rear of the custom tray. Use the following chart for reference or the label attached to the paper tray. :Length 7.16” to 8.5” (182mm to 215.9mm) :Width 3.93” to 11.69” (100mm to 297mm) :Length 11.69”...
Page 196 Caution: If you do not set up the paper size in the Operator Control/ Custom Input Bins menu, the printer could select an incorrect paper size and your image will not be positioned correctly on the page.
Page 197 The security key port is located on the interface panel of the printer. To install a security key, use the following procedure: Make sure the printer is off line. Insert the security key into the port. Press the Online button to put the printer off line.
Page 198 Press the Next button to view the following options: Opera- tor Passwrd, Use Operator Pwd, Admin Password, and Use Admin Pwd. To protect the Operation menu, use the Operator Passwrd option to select the password, and then Use Operator Pwd to turn on this option.
Page 199 When the correct password is entered, the sub- menu displays. The password for these two menus may be the same or different. See “Installation Menu” in chapter 4, “Printer Configuration‚" in the Reference manual for more information. Note: Password protection does not prevent software commands »...
Page 201 About Documentation 1-3 Printer 1-2 This manual 1-8 Accounting Printer job 1-19 Acrobat 1-10 Adobe Acrobat 1-10 Illustrator 5-5 Aldus PageMaker 5-5 Application Notes, QMS 3-5 PC 3-5 Automatic jam recovery 1-13 Cabling PC interface 3-3 Cancel key 6-5 CD-ROM...
Page 202: Custom Tray Installation
Energy star 1-19 Error recovery 1-13 Emulation Sensing Processor 1-11 Ethernet Twisted Pair 4-6 Ethernet port Troubleshooting 4-8 Ethernet Thin-wire 4-5 Features Controller 1-15 Document handling 1-16 Optional 1-21 Printer 1-11 PS Executive 1-20 RAM 1-24 Resolution 1-15 Fonts 1-18...
Page 203 Installation Check the starter kit 2-23 Connecting to a PC 3-2 Consumables 2-22 Drum unit 2-27 Fuser 2-24 Getting to know your printer 2-20 Installing the developer 2-47 Installing toner 2-43 LCIT C-2 LCOS C-10, C-22 Making the connection 3-4...
Page 204: Security Key
Advanced paper handling 1-24 Hard disk expandability 1-22 Keys C-55 Security key C-54, C-55 Options Custom Tray C-50 Custom tray setup C-53 See printer options Paper Automatic jam recovery 1-13 Paper Deck capacity C-2 Paper jams Automatic jam recovery 1-13...
Page 205: Q-Fax
PS Executive 1-20 Q-FAX A-2 Q-FAX, QMS 3-5 Customer Response Center (CRC) A- Q-FAX 3-5 Registration, printer 2-7 World-wide offices A-5 QuarkXPress 5-5 QuickTime 1-10 Registration,printer 2-7 Requirements Location 2-2 Power 2-5 Resident emulations 1-17 Security card C-54 Security key C-54...
Page 206 Web address 4-3 Windows Driver 3-5 WWW address 4-3...

QMS 4060 Getting Started

Quick Links

Need help?

Questions and answers

Related Manuals for QMS 4060

Summary of Contents for QMS 4060

Table of Contents
