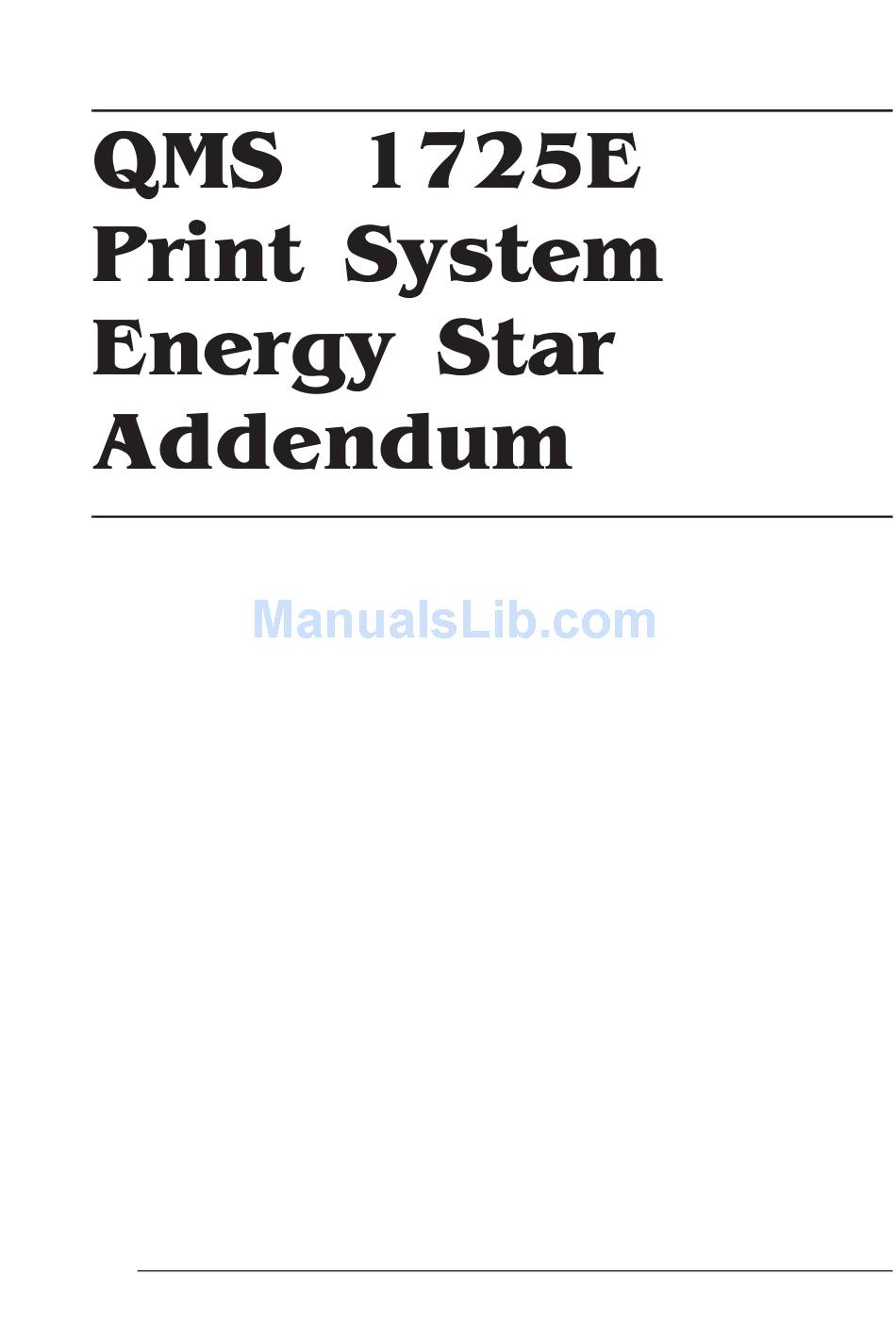

  • Page 1 ®...
  • Page 2 Environmental Protection Agency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service. Ethernet/Xerox Corporation. The digitally encoded software included with your QMS 1725E Print System is Copyrighted © 1994 by QMS, Inc. All Rights Reserved. This software may not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in whole or in part, without the express written permission of QMS, Inc.
  • Page 3 With the Energy Star option installed in your printer, you need to be aware of some differences between your printer and models without this option. The following information explains what the Energy Star program is and how Energy Star-compliant printers operate. You will also find important information regarding special disassembly and assembly instructions pertaining to your printer.
  • Page 4 Intellifont SIMM, a network interface, or internal hard disk drive), the tray assembly must be removed from the printer. The instructions for removing the tray found in chapter 6, “Printer Options,” of the Refer- ence guide provide the necessary steps for removal but do not describe or illustrate printers having the Energy Star option installed.
  • Page 5 Remove the screw on each end of the side panel by turning it counterclockwise and then remove the side panel. Remove the five screws on the metal tray assembly cover and then remove the metal cover, revealing the tray assem- bly.
  • Page 6 Unplug the three connectors on the tray assembly. The connector on the left is released by opening the ejector switches on each side of the connector and then pulling out the connector. The connector in the middle is released by pressing in the tab on each side with one hand and pulling the connector out with the other hand.
  • Page 7 Take the tray assembly completely out of the printer. You are now ready to install an optional feature in the printer. Follow the instructions for the feature you are installing.
  • Page 8 Using both hands, carefully insert the tray assembly back into the slot on the front of the printer. Replace the tray assembly screw in the hole located to the right of the fan. Tighten the screw by turning it clockwise.
