UG-970
GAIN Control
To set the GAIN pin high or low, click the blue progressive
disclosure option on the GAIN SELECT block to access the Gain
Control window, as shown in Figure 6. In the GAIN selection
box, select X1 for a full-scale output of 2.5 V or select X2 for a
full-scale output of 5 V.

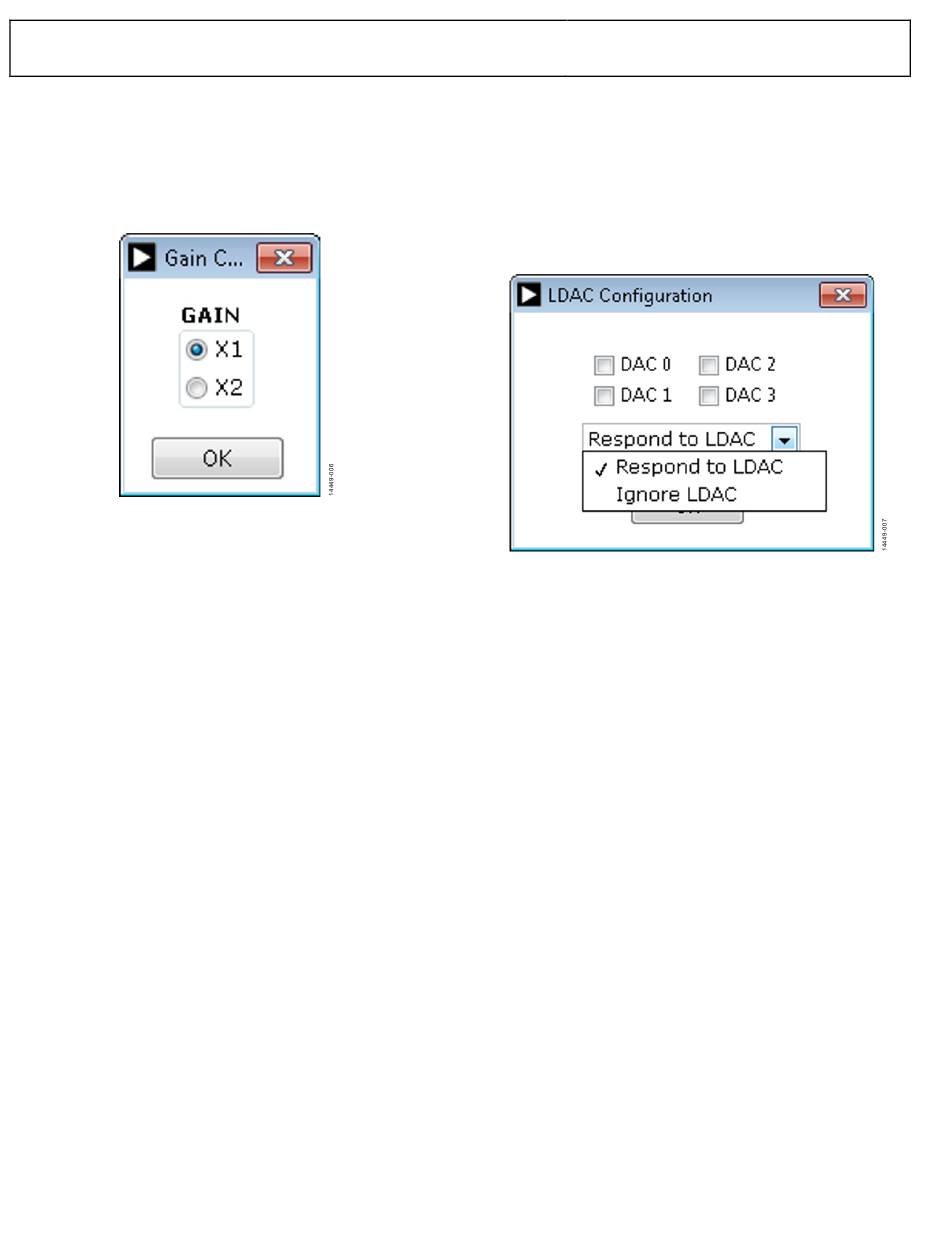

Figure 6. Gain Control Window
LDAC Mask Register
Each DAC can be configured to respond to or ignore the LDAC
pin settings in the LDAC Configuration window. Click the blue
progressive disclosure option to access the LDAC Configuration
window, as shown in Figure 7. When the LDAC selections are
completed, click OK to write the appropriate values to the
AD5317R. The LDAC MASK indicator lights up accordingly
when an LDAC mask of a DAC is enabled.
Rev. A | Page 6 of 13
EVAL-AD5317RDBZ User Guide
Figure 7. LDAC Configuration Window
