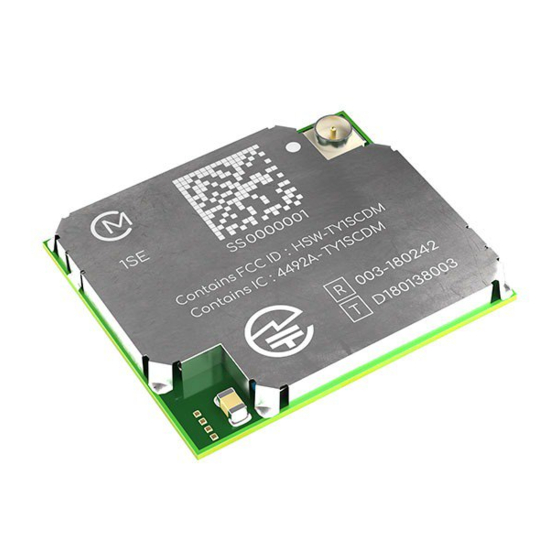

Murata LBAD0ZZ1SE-743 Manual

Features
LTE Cat M1 – Class 3, up to 23dBm
•
•
NB-IoT (NB1) Rel. 13
•
STM32L462RE/Cortex M4 w/512KB Flash and 160 KB SRAM
•
1MB on-board Serial Flash
•
Dimension: 15.4 x 18.0 x 2.5 mm (max)
•
Package: LGA
•
SIM card: internal eSIM (WLCSP)
•
Antenna configurations: U.FL antenna connection
•
3GPP eDRX and PSM modes
•
Power Consumption: enables up to 10-year battery life
•
Operating temperature range: -40 °c to 85 °c
•
Global Certifications: GCF and PTCRB
•
IPv4/IPv6 stack with TCP and UDP protocol
•
SSL/TLS
•
LTE universal modem supports (low-band and mid-band):
• Low-band B5/B8/B12/B13/B14(CAT M1 Only)/B17/B18/B19/B20/B26/B28
• Mid-band B1/B2/B3/B4/B25
Benefits
•
Certified as a host device for ease of integration with several different types of applications.
• Quicker time to market (no additional carrier or regulatory certification).
• Less development time and costs for developer/device manufacturer in need of LTE Cat M1/NB-loT connectivity
• eSIM included in certification.
•
Build/Develop applications with the use of ST's vast set of software modules.
•
Availability of ST's Community and Development Forums.
Notice
•
This module cannot be used in a smartphone or other wireless telephone or a tablet and any device that is capable of
providing a wireless hotspot for other devices, is capable of providing two-way voice communication.
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018
LBAD0ZZ1SE Data Sheet, v1.2, 11/11/2021 Page 1 of 26
LBAD0ZZ1SE
LTE CAT
M1/NB-IoT
Module
