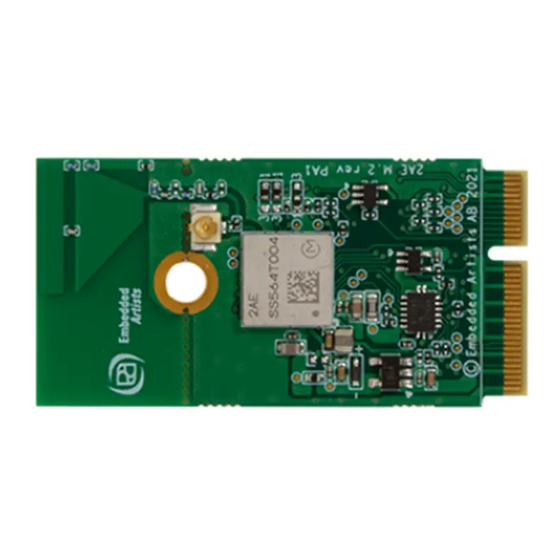

WLAN+Bluetooth Module User Manual
Part Number: LBEE5PK2BC
LBEE5PK2AE has been FCC/ISED certified as Single Modular Approval with the following IDs.
FCC ID: VPYLB2BC
The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring
that the end-user has no manual instruction to remove or install module.
Therefore, the final host product must be submitted to Murata for confirmation that the
installation for the module into the host is in compliance with regulations of FCC and IC Canada.
Specially, if an antenna other than the model documented in the Filing is used, a Class 2
Permissive Change must be filed with the FCC.
Changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment.
This module has been approved by FCC to operate with the antenna types with the maximum
permissible gain indicated. Antenna types not included in this list, having a gain greater than the
maximum gain indicated for that type, are strictly prohibited for use with this device. The
following antennas have been certified in combination with the module. Refer to next pages for
the antenna application guidance.
(a) Monopole PCB antenna with peak gains of 3.0dBi (2.4GHz) and 3.3dBi (5GHz);
(b) External dipole antenna with peak gains of 3.4dBi (2.4GHz) and 4.75dBi (5GHz);
The operational temperature is -20°C~70°C.

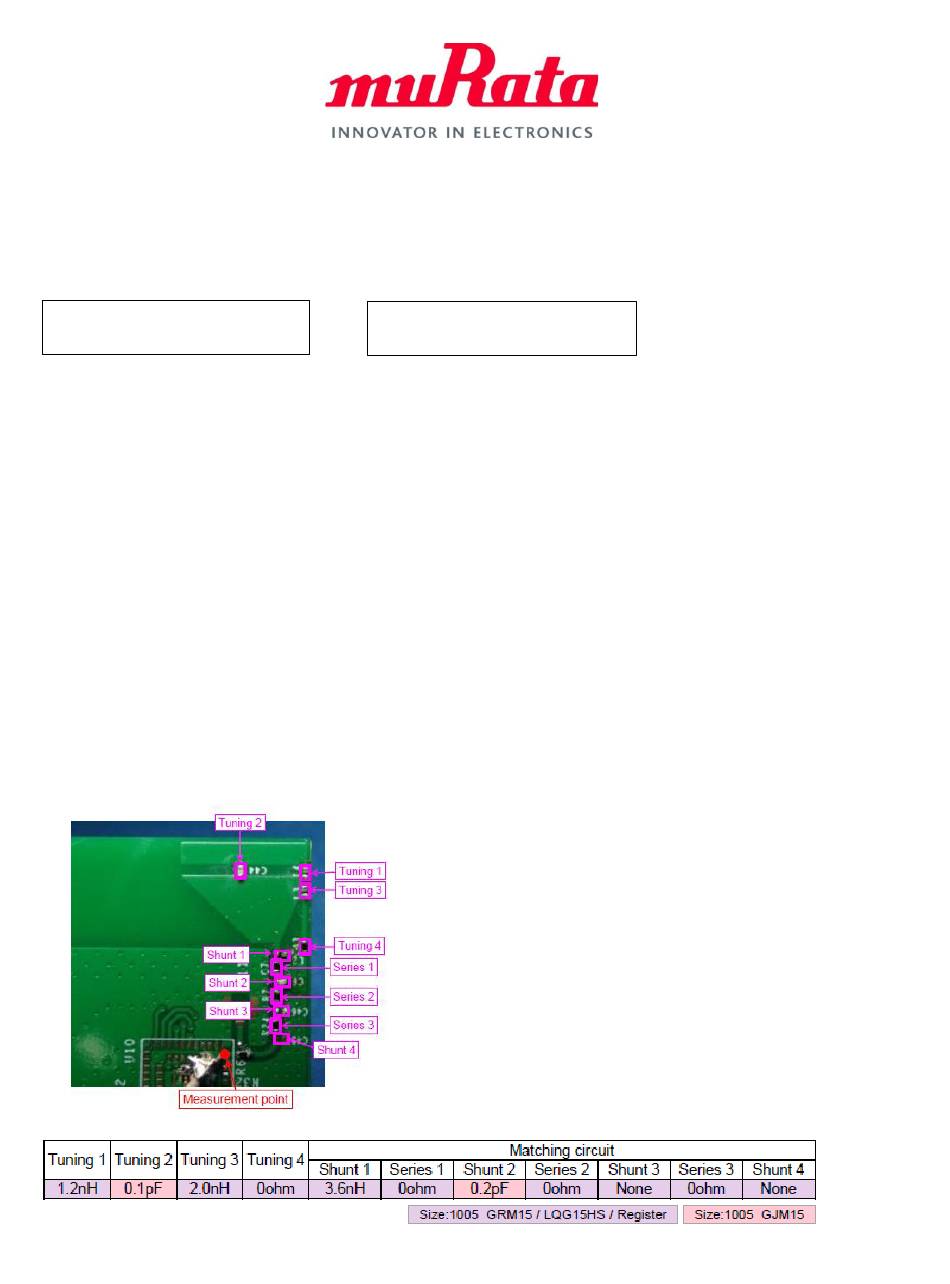

Antenna Application Guidance – Monopole PCB antenna
IC ID: 772C-LB2BC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Murata LBEE5PK2BC
Summary of Contents for Murata LBEE5PK2BC
- Page 1 Therefore, the final host product must be submitted to Murata for confirmation that the installation for the module into the host is in compliance with regulations of FCC and IC Canada.
- Page 2 Antenna Application Guidance – External dipole antenna FCC Statements Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...
- Page 3 the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 4 (dBi) PCB Antenna UNII-1 External Dipole Antenna 4.75 PCB Antenna UNII-2A External Dipole Antenna 4.75 PCB Antenna UNII-2C External Dipole Antenna 4.75 PCB Antenna UNII-3 External Dipole Antenna 4.75 There is only one antenna port, which is shared by all the radios by time divided. The module doesn’t have a permanent antenna.
- Page 5 ce matériel est conforme aux limites de dose d'exposition aux rayonnements, FCC / CNR-102 énoncée dans un autre environnement.cette eqipment devrait être installé et exploité avec distance minimale de 20 entre le radiateur et votre corps. Please notice that if the IC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.
- Page 6 Le présent émetteur radio 772C-LB2BC a été approuvé par Innovation, Sciences et Développement économique Canada pour fonctionner avec les types d'antenne énumérés ci- dessous et ayant un gain admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué pour tout type figurant sur la liste, sont strictement interdits pour l'exploitation de l'émetteur.
- Page 7 persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The end user manual shall include FCC Part 15 /ISED RSS GEN compliance statements related to the transmitter as show in this manual(FCC/ICanada statement). Host manufacturer is responsible for compliance of the host system with module installed with all other applicable requirements for the system such as Part 15 B, ICES 003.
