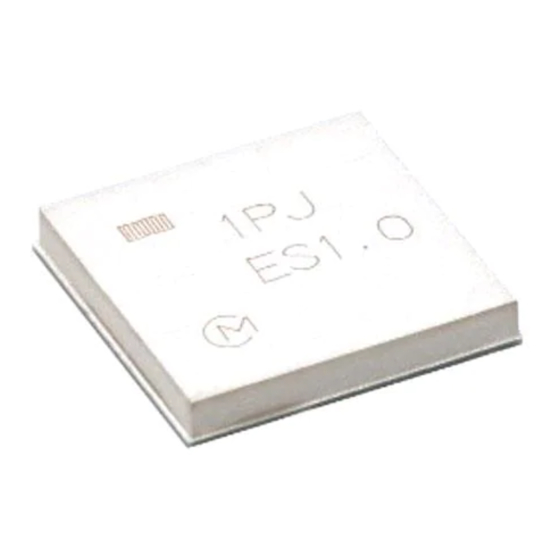

Murata 1PJ User Manual

1PJ User Manual for FCC
Since this module is not sold to general end users directly, there is no user manual of
module.
For the details about this module, please refer to the specification sheet of module.
This module should be installed in the host device according to the interface specification
(installation procedure).
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Fcc Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to
operate the equipment.
Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog
baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital
baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be
on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue
transmission in case of either absence of information to transmit or operational failure.
Frequency Tolerance: ±20 ppm
FCC ID:VPYLBEE5ZZ1PJ
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
1
02 April 2021
