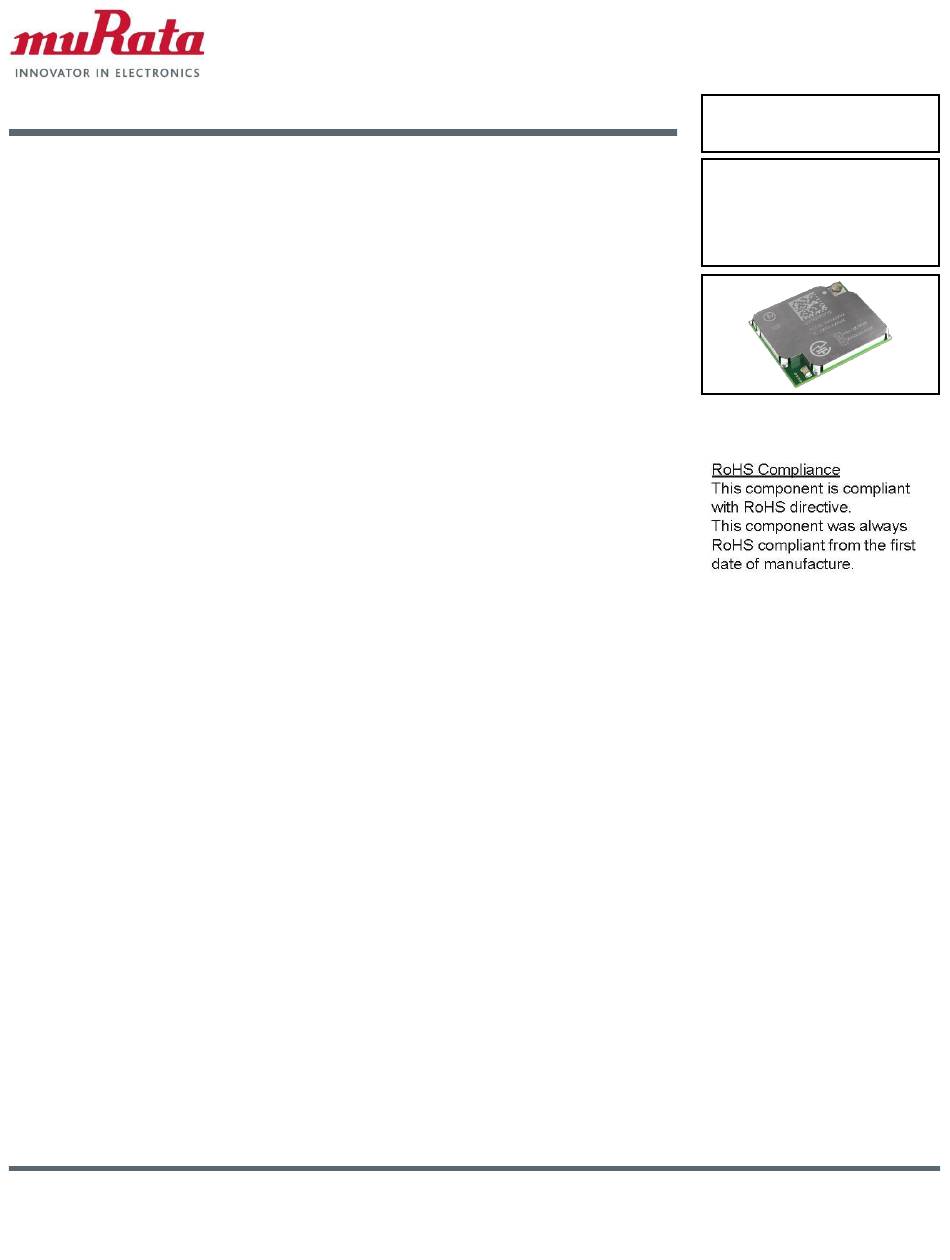

Features
LTE Cat M1 – Class 3, up to 23dBm
•
•
NB-IoT (NB1) Rel. 13
•
STM32L462RE/Cortex M4 w/512KB Flash and 160 KB SRAM
•
1MB on-board Serial Flash
•
Dimension: 15.4 x 18.0 x 2.5 mm (max)
•
Package: LGA
•
SIM card: internal eSIM (WLCSP)
•
Antenna configurations: U.FL antenna connection
•
3GPP eDRX and PSM modes
•
Power Consumption: enables up to 10-year battery life
•
Support PSM and eDRX
•
Operating temperature range: -40 °c to 85 °c
•
OTA firmware upgrade
•
Global Certifications: GCF and PTCRB
•
IPv4/IPv6 stack with TCP and UDP protocol
•
SSL/TLS
•
LTE universal modem supports (low-band and mid-band):
• Low-band B5/B8/B12/B13/B14(CAT M1 Only)/B17/B18/B19/B20/B26/B28
• Mid-band B1/B2/B3/B4/B25
Benefits
•
Certified as a host device for ease of integration with several different types of applications
• Quicker time to market (no additional carrier or regulatory certification)
• Less development time and costs for developer/device manufacturer in need of LTE Cat M1/NB-loT connectivity
• eSIM included in certification
•
Build/Develop applications with the use of ST's vast set of software modules
•
Availability of ST's Community and Development Forums
•
Secure boot architecture and a robust hardware-based security framework
Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018
LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020
Page 1 of 26

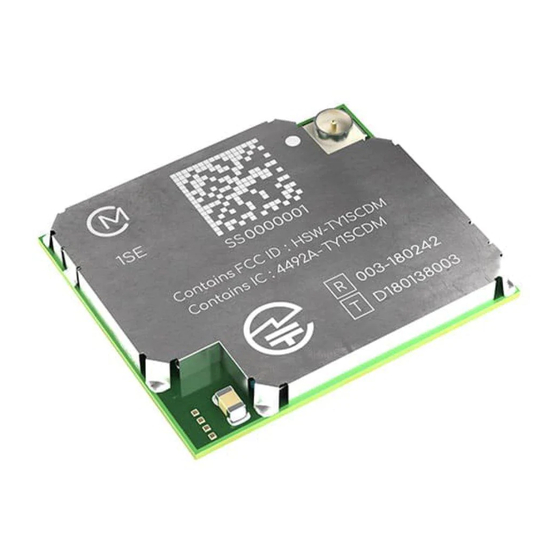

LBAD0ZZ1SE
LTE CAT
M1/NB-IoT
Module
www.murata.com
Advertisement
Table of Contents
Related Manuals for Murata LBAD0ZZ1SE
Summary of Contents for Murata LBAD0ZZ1SE
- Page 1 Build/Develop applications with the use of ST's vast set of software modules • Availability of ST's Community and Development Forums • Secure boot architecture and a robust hardware-based security framework Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 1 of 26 www.murata.com...
- Page 2 Revision History Revision Date Author Change Description 10/05/2020 RF PD Initial release Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 2 of 26 www.murata.com...
-
Page 3: Table Of Contents
9.5 Labeling Requirements ............................16 9.6 Additional Testing Requirements ..........................16 9.7 Test Modes................................16 ROHS INFORMATION ..............................17 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 3 of 26 www.murata.com... - Page 4 Table 10-1 FCC Test Data ..............................14 Table 10-2 ISED Test Data ..............................15 Table 11-1 Ordering Information ............................17 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 4 of 26...
-
Page 5: Block Diagram
15.4 x 18.0 x 2.5 mm (max) Peripheral Interfaces GPIO, ADC, I2C, PWM, SPI, UART Operating Temp -40° to 85° C Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 0 of 26 www.murata.com... -
Page 6: Features
15.4 ±0.2mm x 18.0 ±0.2mm x 2.5 (max) 3.2 Top and Side View Figure 3.1 Module Top and Side View (Unit: mm) Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 1 of 26... -
Page 7: Revision History
3.3 PCB Footprint Top View Figure 3.2 Module Footprint Top View (Unit: mm) Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 2 of 26 www.murata.com... -
Page 8: Table Of Contents
RFT_UART1_CTS Log UART_CTS No Connect No Connect No Connect No Connect No Connect No Connect No Connect No Connect Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 3 of 26 www.murata.com... - Page 9 PB8/I2C1_SCL VBAT Power Backup supply; connect to VDD_1V8 if not used SPI1_SCK PA5/SPI1_SCK SPI1_MOSI PB5/SPI1_MOSI SPI1_MISO PB4/SPI1_MISO/NJTRST SPI1_NSS PA15/SPI1_NSS/JTDI Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 4 of 26 www.murata.com...
- Page 10 PB11/QUADSPI_BK1_NCS; connect to 98 to use internal QUADSPI_nCS serial flash SF_nCS Internal serial flash chip select QUADSPI_IO1 PB0/QUADSPI_BK1_IO1 QUADSPI_IO3 PA6/QUADSPI_BK1_IO3 QUADSPI_IO2 PA7/QUADSPI_BK1_IO2 102- Ground Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 5 of 26 www.murata.com...
-
Page 11: Dc Electrical Specification
Module is fully functional fully meets 3GPP specification (†) Functional: the module is able to connect to PDN and transfer data. Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 6 of 26... -
Page 12: Application Information
6.3 Development Kit and Reference Design The development kit of type 1SE module is jointly developed by Murata and ST Micro Semiconductor. The kit offered by ST Micro Semiconductor. Please refer to ST Micro B-L462E-CELL1 Discovery Kit and related documents for detail [2]. -
Page 13: Assembly Information
100 °C. Soldering must be carried out by the conditions mentioned above to prevent products from damage. Set up the highest temperature of reflow within 260 °C. Contact Murata before use if concerning other soldering conditions. Reflow soldering standard conditions Figure 7.1 Reflow Profile... -
Page 14: Packaging And Marking Information
To be added Figure 8.1 Tape Dimensions (Unit in mm) 8.2 Dimensions of Reel Figure 8.2 Reel Dimensions (Unit: mm) Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 9 of 26 www.murata.com... -
Page 15: Taping Diagrams
[4] Base tape : As specified in (1) Feeding Hole Feeding Direction Pin 1 Marking Chip Figure 8.3 Tape Diagram Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 10 of 26 www.murata.com... -
Page 16: Leader And Tail Tape
Material: Base tape : Plastic Reel : Plastic Cover tape, cavity tape and reel are made the anti-static processing. Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 11 of 26 www.murata.com... -
Page 17: Peeling Force
Tape and reel must be sealed with the anti-humidity plastic bag. The bag contains the desiccant and the humidity indicator. Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 12 of 26... -
Page 18: Module Marking Information
Figure 8.7 Module Marking Diagram 8.8 Moisture Sensitivity Level The LBAD0ZZ1SE is planned to be qualified to moisture sensitivity level 4 (MSL4) in accordance with JEDEC J-STD-020. Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 13 of 26 www.murata.com... -
Page 19: Regulatory Information
Band 25 1850.2 12.15 15.01 12.15 23.40 24.00 10.36 38.45 2726.69 0.543 0.543 Band 26 814.1 15.05 10.36 10.36 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 14 of 26 www.murata.com... -
Page 20: Ised Test Data
Part 22 Subpart H Part 24 Subpart 24E Part 27 Subpart B, C & L Part 90 R & S Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 15 of 26 www.murata.com... -
Page 21: Labeling Requirements
The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. 9.7 Test Modes Murata Manufacturing Co., Ltd.uses various test mode programs for test set up which operate separate from production firmware. Host integrators should contact Murata Manufacturing Co., Ltd.for assistance with test modes needed for module/host compliance test requirements. -
Page 22: Rohs Information
LBAD0ZZ1SE-TEMP 1 pcs Production Module Type 1SE LBAD0ZZ1SE-493 500 pcs Development Kit STMirco B-L462E-CELL1 Discovery kit B-L462E-CELL1 1 pcs Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 17 of 26 www.murata.com... -
Page 23: Notice
IN and OUT terminals. Please refer to the specifications for the standard land dimensions. The recommended land pattern and dimensions is as Murata's standard. The characteristics of products may vary depending on the pattern drawing method, grounding method, land dimensions, land forming method of the NC terminals and the PCB material and thickness. -
Page 24: Input Power Capacity
- Freezing place. If there are possibilities for products to be used under the preceding clause, consult with Murata before actual use. As it might be a cause of degradation or destruction to apply static electricity to products, do not apply static electricity or excessive voltage while assembling and measuring. -
Page 25: Preconditions To Use Murata Products
We disclaim any liability for consequential and incidental damages. If you can’t agree the above contents, you should inquire our sales. Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 20 of 26... -
Page 26: References
[1] STMicro Semiconductor, STM32L462CE STM32L462RE STM32L462VE datasheet, May 2018. [2] STMicro Semiconductor, B-L462E-CELL1 Discovery Kit for NB/M1 communication Discovery Board, UMxxxx, User Manual Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2018 LBAD0ZZ1SE Data Sheet, v1.0, 10/05/2020 Page 21 of 26...
