Summary of Contents for Drucker Diagnostics 614B

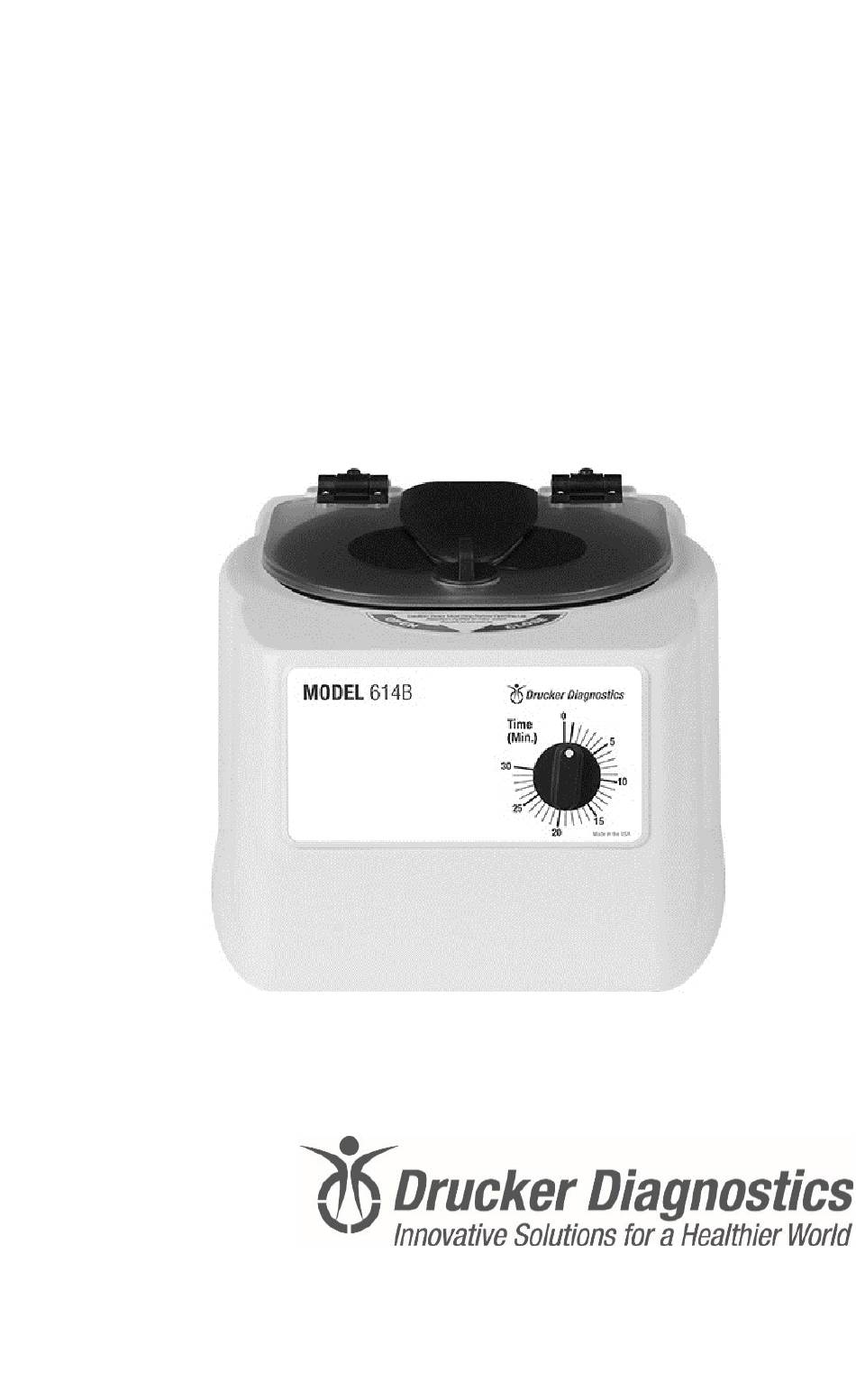

- Page 1 614B Operator’s Manual P/N 03-0-0002-0040 Rev. G...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Model Description ..................1 Intended Use: ....................1 Supplied Equipment ..................2 Features ....................... 2 Warranty ..................... 2 General Specifications ................. 3 Setup Location ..................... 3 Initial Setup Procedure ................4 Operation ....................5 Spinning Balanced Loads ................5 Rotor Removal And Installation .............. - Page 4 This page intentionally left blank...
-
Page 5: Model Description

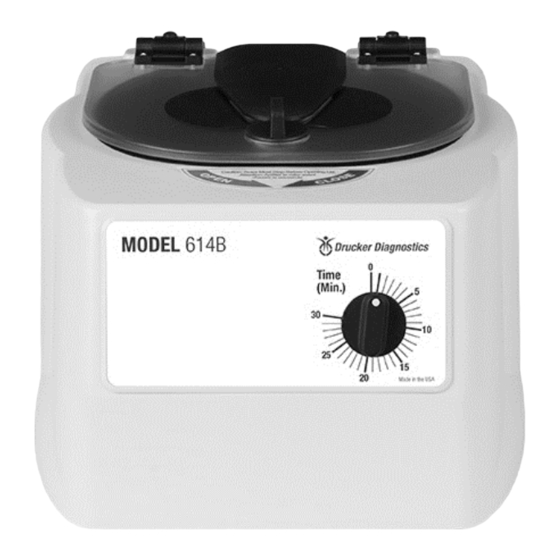

ODEL ESCRIPTION The Model 614B is a continuous duty centrifuge designed for the small lab or doctor’s office for the purposes of separating laboratory fluids. The unit is controlled by a mechanical timer settable from 1 to 30 minutes. -
Page 6: Supplied Equipment
• Clear lid for safe observation of samples and optical calibration of • speed. ARRANTY Drucker Diagnostics warranties that this centrifuge is free from defects in workmanship and parts for 2 years. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 2... -
Page 7: General Specifications
No adjustment is necessary for leveling the centrifuge, however, the surface should be flat and level. Be sure the outlet is always within reach as the line cord is the means of emergency disconnection! Page | 3 Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com... -
Page 8: Initial Setup Procedure
5. Turn the centrifuge on by turning the timer to 10 minutes. 6. Listen to the centrifuge. A smooth whirring sound should be heard. After the centrifuge has passed this procedure it is ready for operation. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 4... -
Page 9: Operation
3. If an odd number of samples is to be spun, fill a tube with water to match the weight of the unpaired sample and place it across from this sample. Page | 5 Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com... -
Page 10: Rotor Removal And Installation
See page 4 for this procedure. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 6... -
Page 11: Care And Preventative Maintenance
For proper care, the following steps should be taken: 1. Provide Adequate Ventilation: For cooling purposes, the Model 614B draws in ambient air through the air intake cover on the top of the lid and exhausts this air in the rear of the base. The centrifuge should be placed on a hard smooth surface for good air circulation. -
Page 12: Cleaning And Disinfection
7. It may be necessary to remove the rotor and clean the rotor chamber. Follow the instructions on page 6 to remove and reinstall the rotor. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 8... -
Page 13: Troubleshooting
Contact Drucker Diagnostics for further assistance. The printed circuit board may be damaged. Have a technician test and replace the circuit board if necessary. Page | 9 Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com... -
Page 14: Calibration Testing
AFETY The Model 614B complies with US, Canadian, and European Safety standards. Lid Safety Switch: The Model 614B lid is secured to the top of the cabinet by a latching knob and pawl system. When the knob is rotated clockwise, the pawl grips the underside of the cabinet opening and prevents the lid from opening. -
Page 15: Replacement Parts
1” Tube cushion Shield caps SmartView™ Platform p/n 1525 p/n 7713011 Only use with p/n p/n 00-079-009-001 7713031, 7713032, & 7713033 100mm Tube Holder, Red 75mm Tube Holder, Green p/n 7713031 p/n 7713033 Page | 11 Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com... - Page 16 FDA LISTED Made in the USA by 200 Shady Lane, Suite 170 • Philipsburg, PA 16866 +1-866-265-1486 (U.S. only) • +1-814-692-7661 • www.druckerdiagnostics.com Protected by U.S. Patents #6,811,531, & #D718463 Other Patents Pending...
