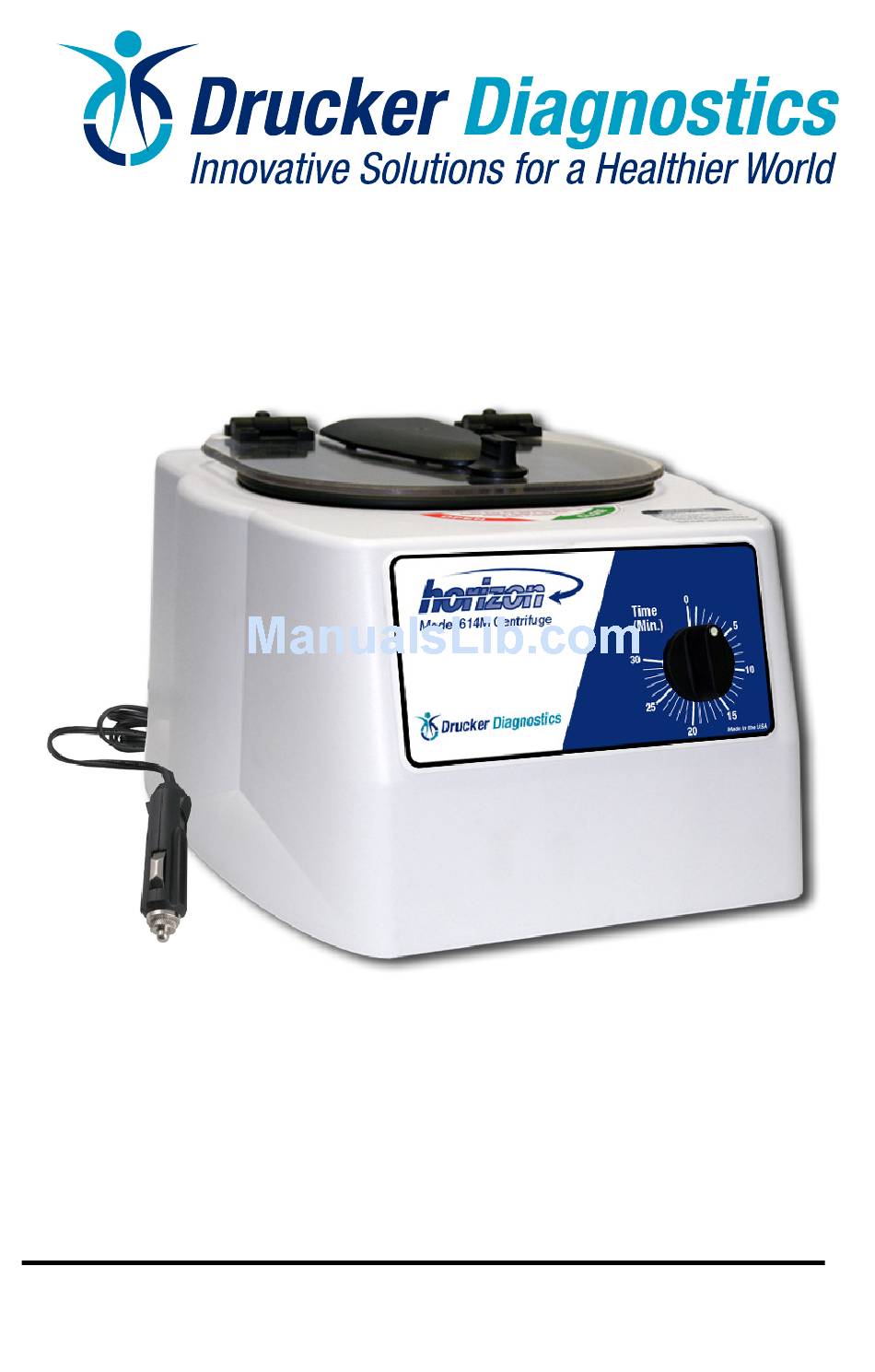

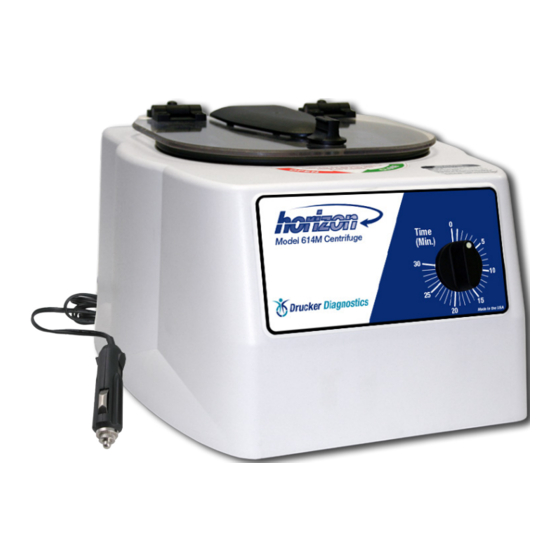

- Page 1 Operator’s Manual Model 614M • 12VDC Mobile Laboratory Centrifuge P/N 03-0-0002-0105 Rev. B...
-
Page 2: Table Of Contents
Manufacturer is explicitly prohibited. [Maximum sample density is 1.15 grams/mL]. Supplied Equipment: The following items come standard with each Model 614M centrifuge: The rotor and rotor accessories are rated for a rotation frequency of 4,000 RPM. One (1) six-place fixed-angle rotor... -
Page 3: Technical Specifications
Technical Specifications: General Specifications for the Model 614M Centrifuge Voltage: ..........13.8V DC Power: ..........100 Watts Maximum load: ........6 x 15mL Maximum Sample Density: ....1.15 grams / mL Nominal Speed (125 mm holders): ..3,750 (± 175) RPM Nominal RCF (125 mm holders): .. -
Page 4: Front Panel Controls
This page was left intentionally blank Page 4... -
Page 5: Operation
Operation: NOTE: Follow the initial setup procedure on page 3 before initial operation. a) If any problems are found during the initial setup procedure, refer to the troubleshooting section. b) Plug the power cord into the automobile’s 12V accessory outlet. c) Turn the latch counterclockwise and open the lid. -
Page 6: Tube Holder Configurations
Tube Holder Configurations: The fixed-angle rotor that came with your Model 614M is capable of spinning test tubes up to 17 mm x 125 mm. Use the following chart and drawing to determine which tube holder and cushion combination should be used with your application. -
Page 7: Rotor Removal And Installation
With proper care and maintenance your centrifuge will provide years of laboratory service. For proper care, the following steps should be taken: Provide Adequate Ventilation: For cooling purposes, the Model 614M draws in ambient air through the air intake cover on the top of the lid and exhausts this air in the rear of the base. -
Page 8: Cleaning And Disinfection
Motor and Electrical Maintenance: The Model 614M motor should not need servicing for the life of the centrifuge. The electrical components are selected for high reliability and should not need service. Tube Holder Replacement: It is recommended that the tube holders be replaced after 24 months of use. -
Page 9: Troubleshooting
– Check the fuse in the end of the power cord. If the filament is broken, the fuse has blown and must be replaced with a fuse of the same type and rating. Contact Drucker Diagnostics for further assistance. For servicing information or additional technical support, contact... -
Page 10: Safety
Safety: - The centrifuge should be placed on a stable, flat surface. - Before using the centrifuge, check the rotor. Do not operate the centrifuge if the rotor is loose, or does not rotate freely. - Rotors and accessories that show evidence of damage or corrosion or are to be taken out of service. -
Page 11: Calibration And Ground Testing
This is the date that the repaired centrifuge was last factory test- ed and calibrated. For additional servicing information and technical support, contact Drucker Diagnostics or your authorized distributer. Disposal: This device is labeled with the WEEE symbol (a crossed out “waste bin”). The final user should not discard this product along with other household waste. -
Page 12: Available Accessories
Tube Adapter p/n 7713068 p/n 7713065 WARRANTY: Drucker Diagnostics warranties that this centrifuge is free from defects in workmanship and parts for 2 years. Made in the USA by 200 Shady Lane, Suite 170 • Philipsburg, PA 16866 +1-866-265-1486 (U.S. only) or +1-814-692-7661 • Fax: 814-692-7662 www.druckerdiagnostics.com...
