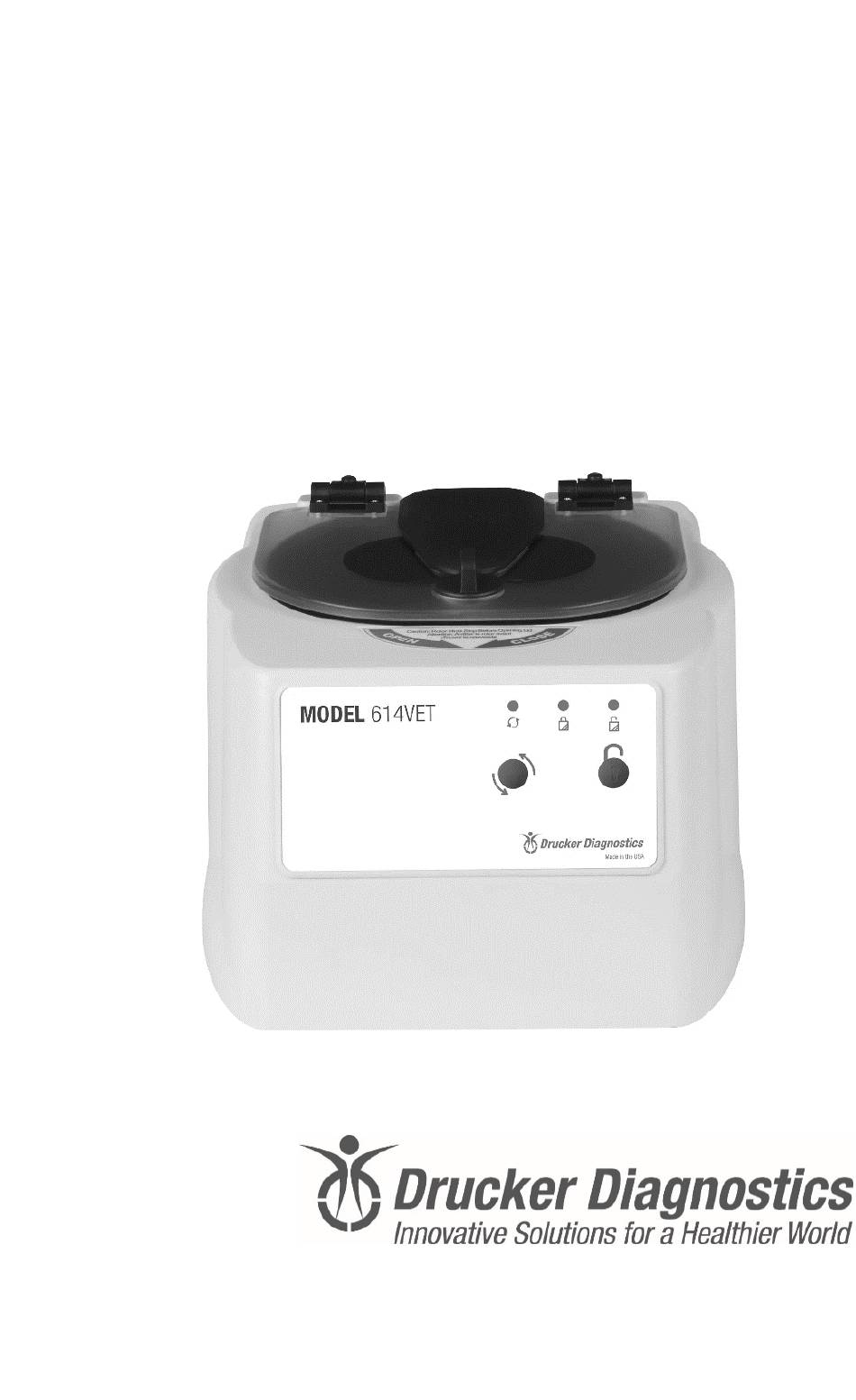

- Page 1 614VET Operator’s Manual P/N 03-0-0002-0229 Rev. C...
-
Page 2: Table Of Contents
Care And Preventative Maintenance ............11 Cleaning and Disinfection ................12 Troubleshooting ..................13 Emergency Rotor Chamber Entry .............. 14 Calibration Testing ..................14 Safety ......................15 Replacement Parts ..................16 Available Accessories ................. 16 Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 2... -

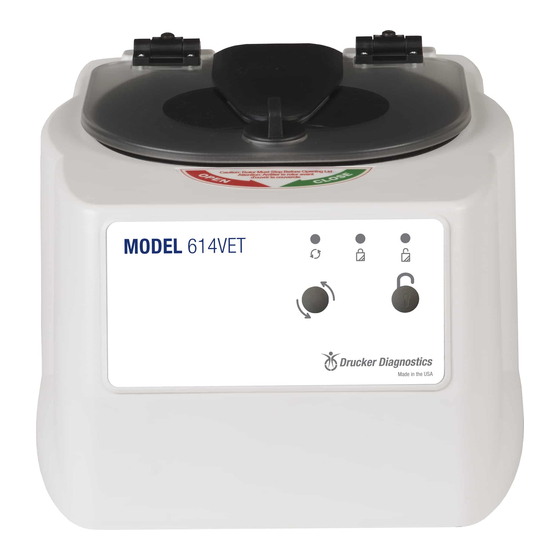

Page 3: Model Description
Samples can be safely viewed through the transparent lid. Entry into the machine is restricted during operation by the safety interlock system. The Model 614VET features a lighted control panel that displays the status of the machine, easily viewable from a distance. -
Page 4: Supplied Equipment
Electronically controlled timed operation (see pg. 8) • Push-button operation • • Indicator lights: Color Status ‘RUNNING’ Green Power is applied to the motor ‘LATCHED’ Yellow Lid is closed and latched ‘UNLOCKED’ Lock system is deactivated Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 4... -
Page 5: General Specifications
No adjustment is necessary for leveling the centrifuge; however, the surface should be flat and level. Be sure the outlet is always within reach as the line cord is the means of emergency disconnection! Page | 5 Drucker Diagnostics +1-814-692-7761 - CustomerService@DruckerDiagnostics.com... -
Page 6: Initial Setup Procedure
Drucker Diagnostics for assistance. Close and latch the lid. 12. Push the ‘OPEN / STOP’ button. The ‘RUNNING’ indicator light should go out and the motor should slow to a stop. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 6... -
Page 7: Control Panel
13. The lid should remain locked until the rotor has nearly stopped. If the machine unlocks prematurely, contact Drucker Diagnostics for assistance. 14. Once the rotor has stopped, the interlock system will become disengaged for sixty (60) seconds. The ‘UNLOCKED’ indicator light will illuminate during this time. -
Page 8: Verifying The Preset Time
10. The green ‘START’ indicator light will flash each time you press the start button. When you are finished, press the ‘OPEN’ button to exit. Use the above procedure to verify the run time and brake setting change. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 8... -
Page 9: Operation
11. Turn the lid knob counterclockwise and open the lid. 12. Remove the samples. 13. If the machine re–locks before the samples are removed, press the ‘OPEN/STOP’ button to unlock the lid for an additional fifteen (15) seconds. Page | 9 Drucker Diagnostics +1-814-692-7761 - CustomerService@DruckerDiagnostics.com... -
Page 10: Spinning Balanced Loads
See page 6 for this procedure. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 10... -
Page 11: Care And Preventative Maintenance
For proper care, the following steps should be taken: 1. Provide Adequate Ventilation: For cooling purposes, the Model 614VET draws in ambient air through the air intake cover on the top of the lid and exhausts this air in the rear of the base. The centrifuge should be placed on a hard smooth surface for good air circulation. -
Page 12: Cleaning And Disinfection
7. It may be necessary to remove the rotor and clean the rotor chamber. Follow the instructions on page 10 to remove and reinstall the rotor. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 12... -
Page 13: Troubleshooting
The latch makes contact with a switch underneath the front top of the cabinet. If this switch is not activated, the light will not turn on and the machine will not run. Page | 13 Drucker Diagnostics +1-814-692-7761 - CustomerService@DruckerDiagnostics.com... -
Page 14: Emergency Rotor Chamber Entry
Drucker Diagnostics. ALIBRATION ESTING It is recommended that the top speed be tested every two years for continued safe operation. Contact Drucker Diagnostics for further information or testing availability. Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 14... -
Page 15: Safety
AFETY The Model 614VET complies with US, Canadian, and European Safety standards. Lid Safety Switch: The Model 614VET lid is secured to the top of the cabinet by a latching knob and pawl system. When the knob is rotated clockwise, the pawl grips the underside of the cabinet opening and prevents the lid from opening. -
Page 16: Replacement Parts
FDA LISTED Made in the USA by 200 Shady Lane, Suite 170 • Philipsburg, PA 16866 +1-866-265-1486 (U.S. only) • +1-814-692-7661 • www.druckerdiagnostics.com Protected by U.S. Patents #6,811,531, & #D718463 Other Patents Pending Drucker Diagnostics +1-814-692-7661 - CustomerService@DruckerDiagnostics.com Page | 16...
