Summary of Contents for Ancona GCT436

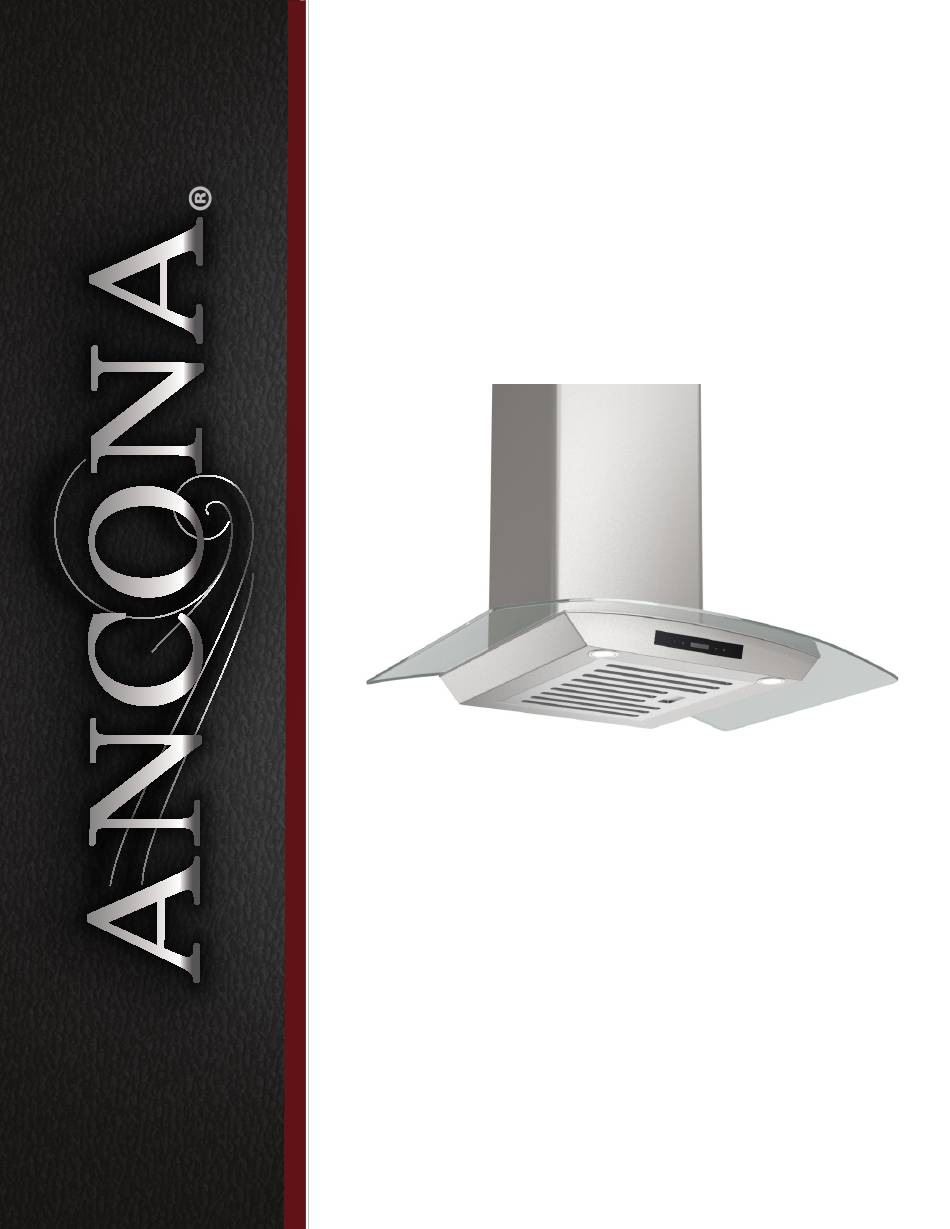

- Page 1 Ancona Range Hood GCT436 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1177-01...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy •...
-
Page 6: Included Parts
Included Parts Damper Range Hood Hood Mounting Bracket Lower Chimney Upper Chimney Bracket Lower Chimney Bracket Upper Chimney 4 x Screws / Washers Installation of Glass Canopy 1 Filter 4 x Damper Screws 4 x Chimney Screws Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 10.8”(275 mm) 19” - 37.75” (480 mm - 954 mm) 2.72” 19 ” (69 mm) Glass Depth 15” (380 mm) 19.6” (500 mm) 15.71” (399 mm) 36” (914 mm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cETLus Certified) Total Input Power 235.1 W Motor Input Power... -
Page 8: Mounting Brackets
Mounting Brackets Upper Chimney Bracket Lower Chimney Bracket Mounting Bracket Hook — 8 —... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools •... -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. For the most efficient & quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 10”... - Page 11 Installation IMPORTANT: • A minimum of 6” round or 3-1/4 x 10” rectangular duct higher than 30-inch for electric cook tops. (purchased separately) must be used to maintain maximum • It is important to install the hood at the proper mounting airflow efficiency. height. Hoods mounted too low could result in heat •...
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations: NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. •... -
Page 13: Step 10 - Installing The Damper
STEP 10 Installing the damper • Fix the damper on the top vent of hood with 4 screws. (See Figure # 3) • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6”... -
Page 14: Step 13 - Install Chimney
Installation STEP 13 Install Chimney Inner Chimney Bracket • Place chimney on top of the main housing. • Remove the protective coating from the upper chimney. Carefully slide the upper chimney down into the lower chimney. • Use 2 screws to fix the two chimneys together with the lower chimney bracket, make sure upper chimney is moving freely. -
Page 15: Step 15 - Install Filters
Installation STEP 15 Install Filters To install filters for the following four steps (See Figure # 8): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. •... -
Page 16: Operation
Operation 3 minute delay Off / On / Light Slow down Speed Up Power Settings Press the button + once and the motor starts to operate at Low speed. Press the button + again and the motor will reach Medium speed. Press the button + once more and the motor will reach High speed. -
Page 17: Maintenance
Maintenance Replacing the Light Bulbs IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF Replace with a 4 Volt, 2.5Watt max, LED lights. Do breaker. -
Page 18: Range Hood Assembly
Range Hood Assembly Number Part LED light puck Baffle filter Panel Rubber Rubber strip Blower Switch wire Switch bracket Switch box Switch Switch panel Glass Housing set Hook Outlet Power cord Electrical box base Capacitor Electrical box cover Outer chimney Inner chimney Outer chimney bracket Inner chimney bracket —... -
Page 19: Assembly
Assembly Circuit Diagram Blower Assembly Number Part Blower Wind Wheel Nut Wind Wheel Motor Incabloc Rubber Aluminum Cover Plastic Wind Net Sealing Gasket Electrical Assembly Number Part Electrical Box Base Capacitor Electrical box cover Switch box Switch — 19 —... -
Page 20: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 21 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1177-01 © 2017 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 21 —...
