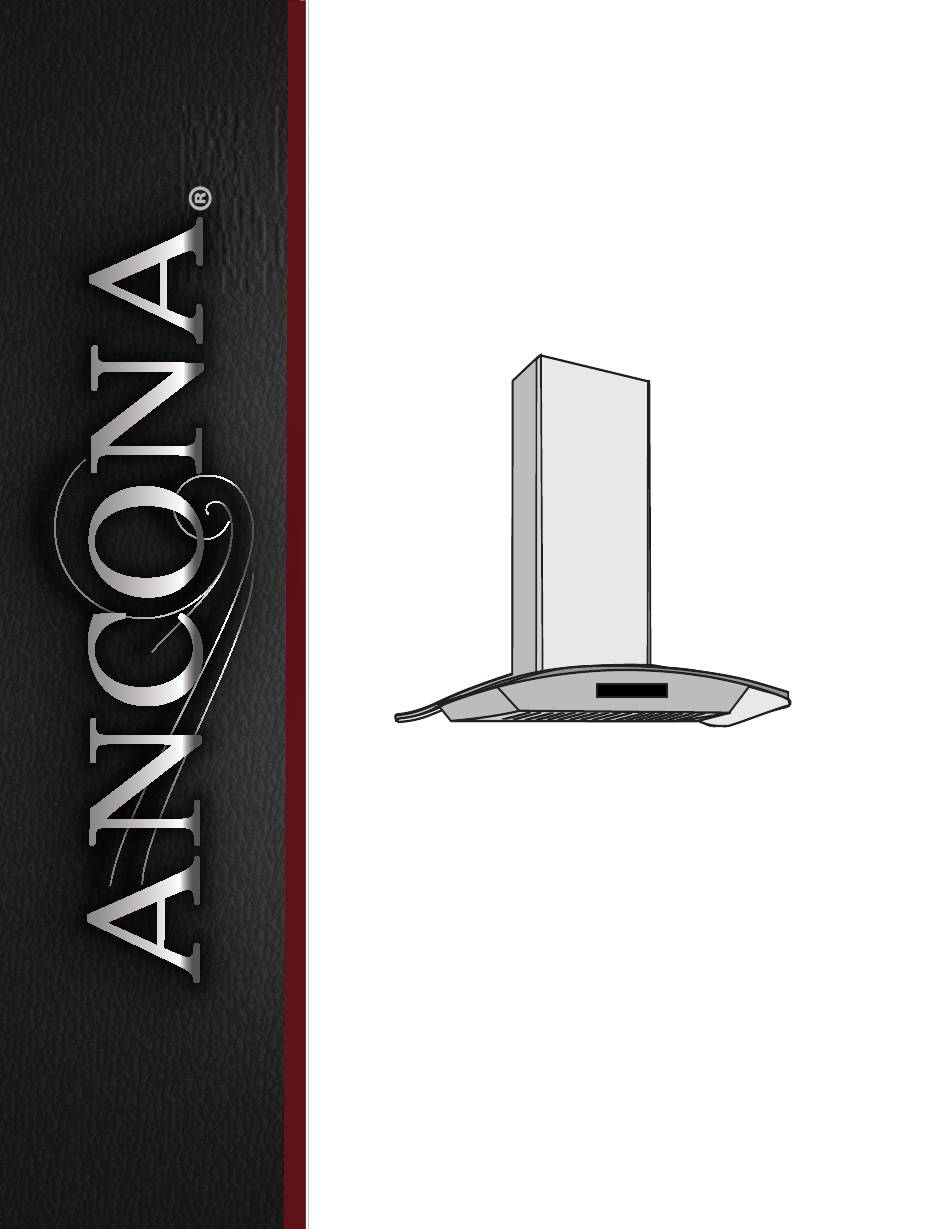

- Page 1 Ancona Range Hood GCL630 and GLC636 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1507-01 2018-08-02...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy •...
-
Page 6: Included Parts
Included Parts Damper flap Range Hood Hood Mounting Bracket Lower Chimney Upper Chimney Bracket Lower Chimney Bracket Upper Chimney 4 + 1 Screws C 4 + 1 Screws / Washers D Installation of Glass Canopy Installation of Glass Canopy 2 Filter 4 + 1 Chimney Screws E Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 10.7 in. (27.3 cm) 12 in. (30.5 cm) Ø 5.9 in. (15 cm) 22 - 40.9 in. (56-104 cm) 22 in. 8.2 in. (56 cm) (21 cm) 3.1 in. (8 cm) 14.9 in. (38 cm) 24.4 in. (62 cm) 29.5 in. -
Page 8: Mounting Brackets
Mounting Brackets Upper Chimney Bracket 8 1/4” (211 mm) 11 4/5” (300 mm) Lower Chimney Bracket 11 1/4” (287 mm) 7 1/2” (192 mm) 11 4/5” (300 mm) Mounting Bracket Hook 9 1/17” (230 mm) 4 1/2” (115 mm) 4 1/2” (115 mm) 1 5/8”... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 6 in. - Page 11 Installation IMPORTANT: • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (25.4 cm higher than 30-inch for electric cook tops. x 8.3 cm) rectangular duct (purchased separately) must be • It is important to install the hood at the proper mounting used to maintain maximum airflow efficiency. height.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 13: Step 10 - Installing The Damper Flap
Installation STEP 10 Installing the Damper Flap • Fix the damper flap into the damper hole on top of the range hood motor box. (See Figure # 3) • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6 in. round ducting is recommended. Fig #3 STEP 11 Mount Range Hood onto Wall... -
Page 14: Step 13 - Install Chimney
Installation STEP 13 Install Chimney Inner Chimney Bracket • Place chimney on top of the main housing. • Remove the protective coating from the upper chimney. Carefully slide the upper chimney down into the lower chimney. • Use two screws E to fix the two chimneys together with the lower chimney bracket, make sure upper chimney is moving freely. -
Page 15: Step 15 - Install Filters
Installation STEP 15 Install Filters To install filters for the following three steps (See Figure # 8): • Angle the filter into slots at the left side of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. Fig #8 Cleaning Filters IMPORTANT: Drain oil from baffles, spacers, filters, oil tunnels, oil containers before oil and residue overflow! -
Page 16: Operation
056B 056B 056B 056B Operation 056B 056B 056B 056B 056B 056B 013B 056B 056B 056B 056B 013B 013B 056B 056B 056B 056B Decrease Increase Lamp Timer Power 013B 013B 013B 056B 056B 056B Speed Speed 013B 056B 056B 056B 056B 056B NOTE: When the hood has been initially connected to the 056B... -
Page 17: Maintenance
Maintenance Replacing the Light Pucks IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF Replace with a 10.2 Volt, 2.5 Watt max, LED lights. breaker. -
Page 18: Range Hood Assembly
Range Hood Assembly Range Hood Assembly Number Part Upper chimney Lower chimney Upper chimney bracket Lower chimney bracket Number Part Hood mounting bracket Upper chimney Power cord Lower chimney Damper flap Big glass Upper hood-mounting bracket Cover of electronic box Lower hood-mounting bracket Capacitor Hood mounting bracket Power cord... -
Page 19: Assembly
Assembly Circuit Diagram Motor 0V 60Hz Capacitor Main PCB _ _ _ LED Pucks CH B MAX 10.2V 250mA 2.5W Temperature / Humidity Sensor (Optional) Blower Assembly Number Part Left blower housing Impeller Motor Right blower housing Electrical Assembly Number Part Junction box cover Capacitor... -
Page 20: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 21 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1507-01 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 21 —...
- Page 22 Notes — 22 —...
