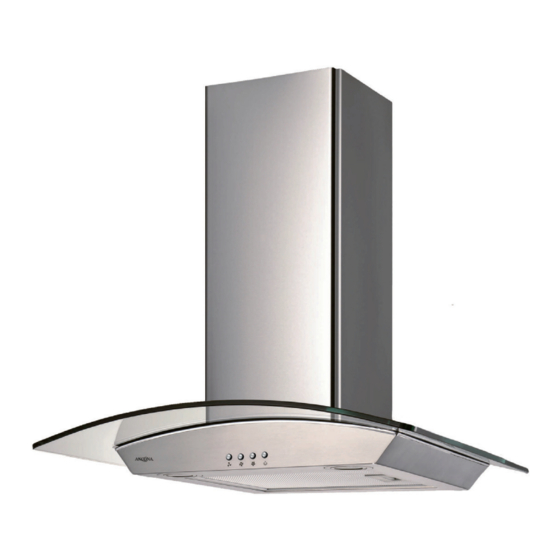

- Page 1 Ancona Range Hood GCP430 and GCP436 User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1186-03 2018-03-05...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy •...
-
Page 6: Included Parts
Included Parts Damper Range Hood Hood Mounting Bracket Lower Chimney Upper Chimney Bracket Lower Chimney Bracket Upper Chimney 4 + 1 Screws C 4 + 1 Screws / Washers D Installation of Glass Canopy Installation of Glass Canopy 4 + 1 Chimney Screws F 4 + 1 Damper Screws E 1 Filter Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to... -
Page 7: Range Hood Dimensions
Range Hood Dimensions 10.8”(275 mm) 10.8" 19" to 37.75" (275 mm) (480 mm to 954 mm) 2.72” 19.6” (69 mm) (500 mm) Glass Depth 15.71” (399 mm) 15” (380 mm) 29.52” (750 mm) / 35 3/8” (900 mm) 19.6” (500 mm) Specifications Body Design Stainless Steel... -
Page 8: Mounting Brackets
Mounting Brackets Upper Chimney Bracket Lower Chimney Bracket Mounting Bracket Hook — 8 —... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools •... -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. • If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 10 in. - Page 11 Installation IMPORTANT: • A minimum of 6 in. round or 3-1/4 x 10 in. rectangular duct higher than 30-inch for electric cook tops. (purchased separately) must be used to maintain maximum • It is important to install the hood at the proper mounting airflow efficiency. height. Hoods mounted too low could result in heat • Always use rigid type metal/aluminum ducts if available to damage and fire hazard; while hoods mounted too high maximize airflow when connecting to provided duct.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 13: Step 10 - Installing The Damper
Installation STEP 10 Installing the Damper • Fix the damper on the top vent of hood with four screws E. (See Figure # 3) • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6 in. -
Page 14: Step 13 - Install Chimney
Installation STEP 13 Install Chimney Inner Chimney Bracket • Place chimney on top of the main housing. • Remove the protective coating from the upper chimney. Carefully slide the upper chimney down into the lower chimney. Using gloves is recommended to avoid scratching the chimney •... -
Page 15: Step 15 - Install Filters
Installation STEP 15 Install Filters To install filters for the following three steps (See Figure # 8): • Angle the filter into slots at the left side of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. -
Page 16: Operation
Operation Medium High Light Speed Speed Speed Power Settings Lights Press the button once and the motor starts to Press the light button to turn LED lights on operate at Low speed. and off. Press the button and the motor will reach Medium speed. -
Page 17: Range Hood Assembly
Range Hood Assembly Number Part Aluminium filter LED light puck Switch panel Rubber strip Switch box Electronic switch Switch box cover Switch bracket Blower Propeller Motor Inlet grid Housing set Hook Outlet Power cord PCB box base PCB box cover Glass Lower chimney Lower chimney bracket... -
Page 18: Assembly
Assembly Circuit Diagram Blower Assembly Number Part Blower Wind Wheel Nut Wind Wheel Motor Incabloc Rubber Aluminum Cover Plastic Wind Net Sealing Gasket Electrical Assembly Number Part PCB box base Capacitor PCB box cover — 18 —... -
Page 19: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1186-03 © 2018 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
