- Page 1 User's Guide 1500Amp True RMS AC/DC Clamp Meter Model MA1500...
- Page 2 Introduction Congratulations on your purchase of this MA1500 True RMS Clamp Meter. This meter measures AC Current, DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Duty Cycle and Continuity. The molded case is designed for heavy duty use. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 SAFETY NOTES • Do not exceed the maximum allowable input range of any function. • Do not apply voltage to meter when resistance function is selected. • Set the function switch OFF when the meter is not in use. • Remove the battery if meter is to be stored for longer than 60 days.
-
Page 4: Meter Description

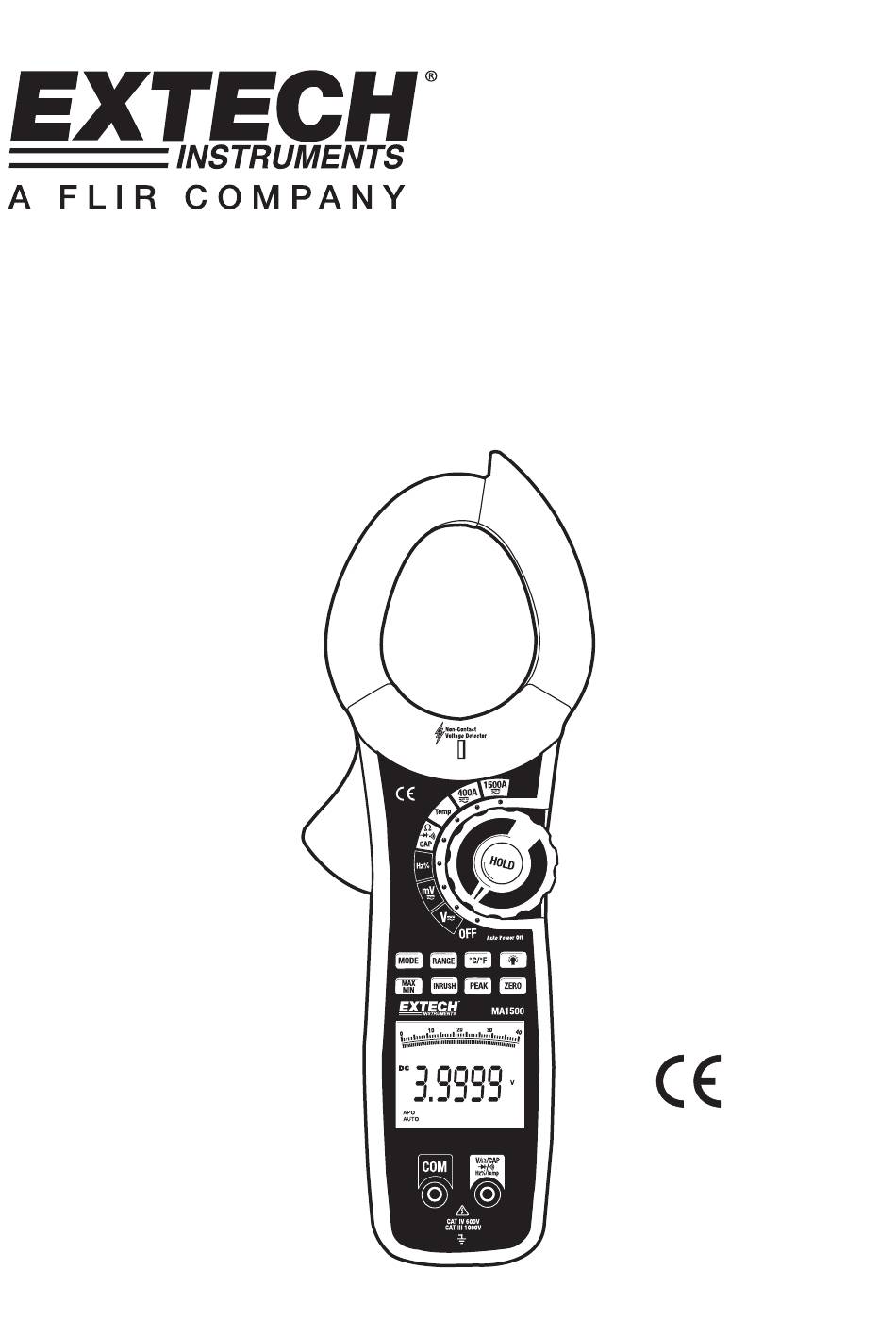

Description Meter Description Current clamp Clamp opening trigger RANGE Button MODE button MAX/MIN button INRUSH button Backlit LCD Display Non-Contact Voltage Detector NCV LED indicator 10. Function switch and HOLD button F select button 12. Back light button 13. ZERO button 14. -
Page 5: Operation
Operation NOTES: Read and understand all Warning and Caution statements in this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use. Non-Contact Voltage Detector WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation. -
Page 6: Ac/Dc Voltage Measurements
AC/DC Voltage Measurements CAUTION: Do not measure voltages if a motor on the circuit is being switched ON or OFF. Large voltage surges may occur that can damage the meter. Rotate the function switch to the V position. Press the MODE button to select AC or DC Voltage. Insert the black test lead banana plug into the negative COM jack. -
Page 7: Capacitance Measurements
Capacitance Measurements WARNING: To avoid electric shock, discharge the capacitor before measuring. Set the function switch to the CAP position. Insert the black test lead banana plug into the negative COM jack. Insert the red test lead banana plug into the positive jack. -
Page 8: Lcd Backlight
Max/Min Press the MAX/MIN button to activate the MAX/MIN recording mode. The display icon "MAX" will appear. The meter will begins recording and displaying the maximum value measured. Press the MAX/MIN button and “MIN” will appear. The meter will display the minimum value measured during the recording session. -
Page 9: Maintenance
Maintenance WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads from the input terminals, and turn OFF the meter before opening the case. Do not operate the meter with an open case. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent;... -
Page 10: Specifications
Specifications Function Range& Resolution Accuracy (% of reading) DC Current 400.00 ADC ± (2.0% +30digits) 1500.0 ADC ± (2.5% +30digits) AC Current 400.00 AAC ± (2.8% +30digits) True RMS (50Hz to 60 1500.0 AAC All AC current ranges are specified from 5% to 100% of range 400.00 mVDC ±... - Page 11 IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category IV 600V and Category III 1000V, Pollution Degree 2. Approvals Copyright © 2011 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com...
