Summary of Contents for FLIR MR55
- Page 1 Quick Start Pin Moisture Meter with Bluetooth ® Model MR55...
- Page 2 Quick Start INTRODUCTION The latest versions of the detailed User Manual and Quick Start, with translations, are located on the http://support.flir.com web site (download tab). Please read these documents carefully before use. QUICK STEPS 1. Ensure that two fresh 1.5V ‘AA’ batteries are installed in the me- ter’s rear compartment.

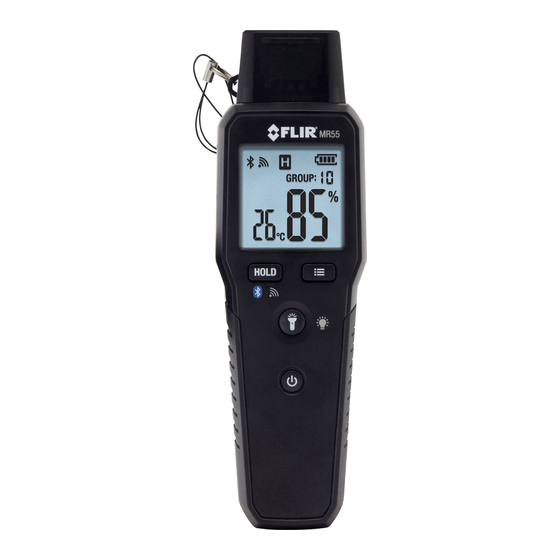

- Page 3 METER DESCRIPTION 1. Temperature / RH sensors 2. Electrode pins 3. Backlit LCD 4. Data Hold / Transmit button 5. Worklight / Backlight button 6. Power ON-OFF button 7. Material group select and Temperature/RH button 8. Worklight 9. Battery compartment lock 10.
- Page 4 FUNCTION BUTTONS Long press to power the meter ON/OFF Short press to freeze/unfreeze displayed readings (readings must HOLD be held before they can be transmitted via Bluetooth) Long press to transmit held reading to remotely connected device using Bluetooth Short press to switch worklight ON/OFF Long press to switch display backlight ON/OFF Short press to select a material group number (1~11) Long press to select ambient temperature or relative humidity dis-...
- Page 5 FLIR camera is established, the Bluetooth icon appears on the MR55 display. • Refer to the FLIR Tools help utility (in the mobile app) for detailed information regarding FLIR Tools. • To transmit a displayed reading, first short press the MR55 HOLD button to freeze the reading (the ‘H’...
- Page 6 Customer Support Customer Support Telephone List: https://support.flir.com/contact Repair, Calibration, and Technical Support https://support.flir.com Three-Year Limited Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit www.flir.com/testwarranty to read the 3-Year Limited Warranty document. #NAS100098; r. AB/80702/80849; en-US...
- Page 8 Customer support http://support.flir.com Copyright © 2021, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
