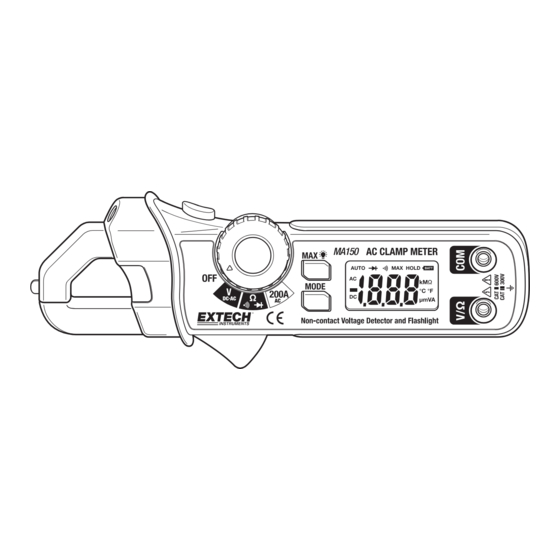

FLIR Extech Instruments MA150 Manual

200a ac mini clamp-on meter
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

User's Guide
Model MA150
200A AC Mini Clamp-on Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extech Instruments MA150 and is the answer not in the manual?

Questions and answers

Related Manuals for FLIR Extech Instruments MA150

Summary of Contents for FLIR Extech Instruments MA150

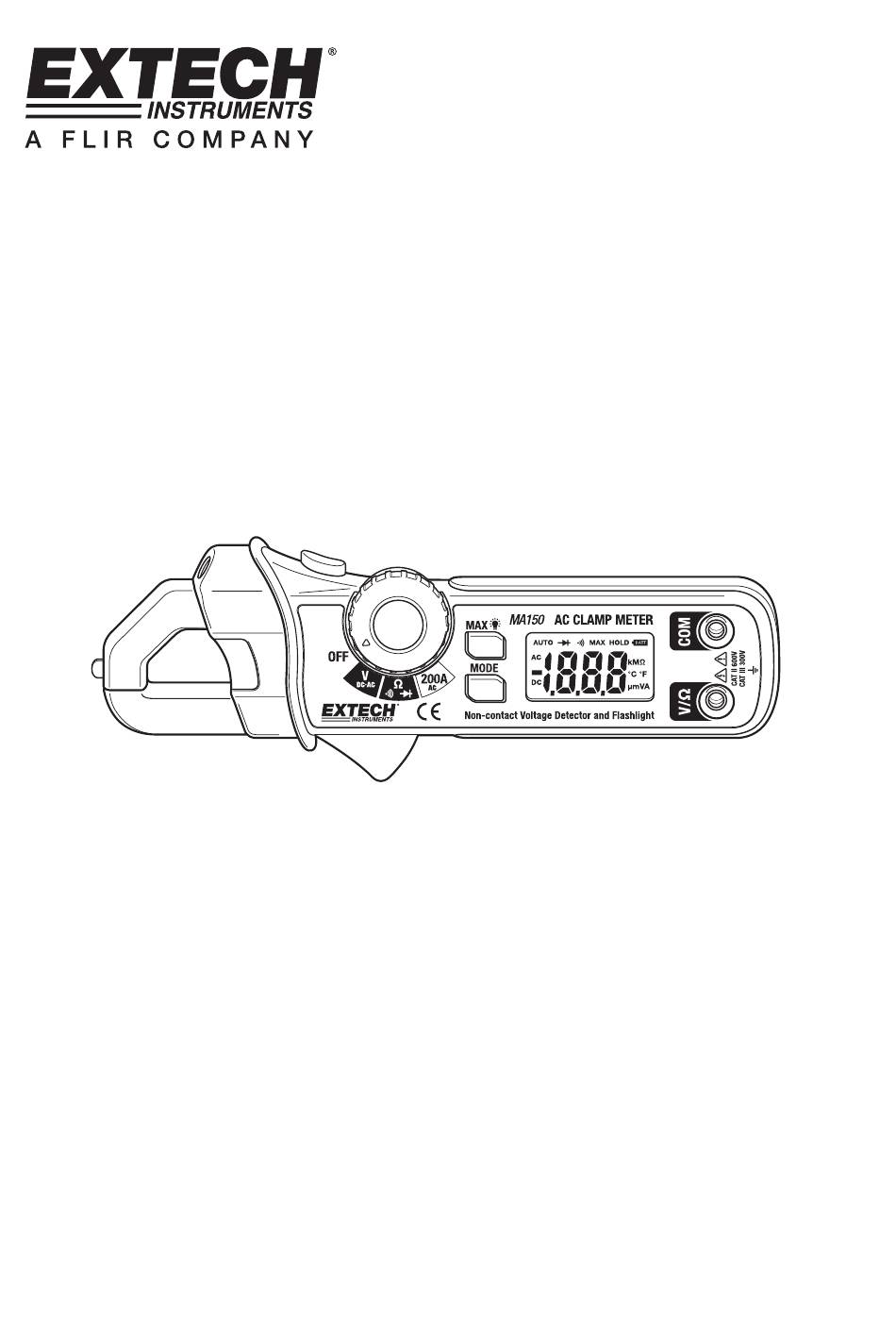

  • Page 1 User’s Guide Model MA150 200A AC Mini Clamp-on Meter...

  • Page 2: Meter Description

    Introduction Congratulations on your purchase of Extech’s MA150 AC Mini Clamp Meter. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Meter Description 1. Current sense jaw 6. LCD display 2. Non-contact AC voltage indicator light 7.

  • Page 3: Operation

    Operation AC Current Measurements 1) Set the Function switch to the 200A AC range. 2) Press the jaw trigger and clamp around, fully enclosing a single conductor. Do not allow a gap between the two halves of the jaw. Refer to the diagram at right for the correct way to enclose a single conductor.
  • Page 4 Non-Contact AC Voltage Detection WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation 1) AC Voltage detection operates on any of the three Function switch positions. 2) Touch the probe tip to the hot conductor or insert into the hot side of the electrical outlet. 3) If AC voltage is present, the detector light will illuminate.

  • Page 5: Specifications

    Specifications General Specifications Display 2000 count Digit LCD with white LED backlight Polarity Minus sign (-) indicates negative polarity Jaw opening 0.7” (18mm) Current sensor Hall effect sensor type AC Current Bandwidth 50/60Hz AC Voltage Bandwidth 50/400Hz Overload indication “OL” displayed on the LCD Display rate 2 readings/second, nominal Battery...
  • Page 6 Range Specifications Function Range Resolution Accuracy (of reading) ± (2.5% rdg + 10 digits) AC Current 200.0A 0.1A DC Voltage ±(0.5% rdg + 5 digits) 200.0mV 0.1mV 2.000V 20.00V 10mV ±(1.2% rdg + 3 digits) 200.0V 0.1V ±(1.5% rdg + 3 digits) 600V AC Voltage 2.000V...

  • Page 7: Maintenance

    Warranty EXTECH INSTRUMENTS CORPORATION (a FLIR company) warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization.

This manual is also suitable for:

Extech instruments ma150-nist
