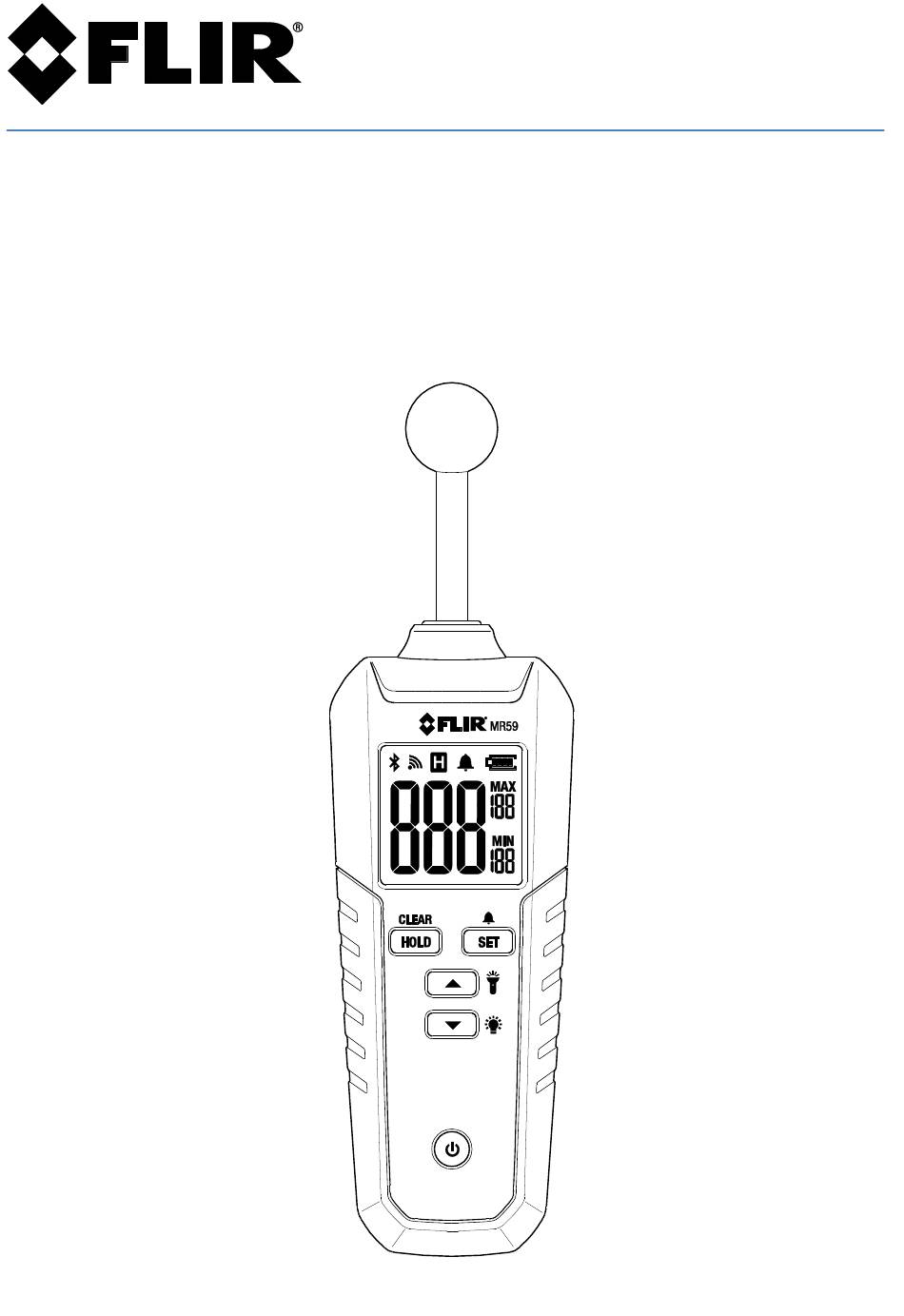

- Page 1 User Manual Ball Probe Moisture Meter With Bluetooth® Model MR59...
-
Page 2: Table Of Contents
7.1 Cleaning ............................9 7.2 Battery Installation and Replacement ....................9 8. Safety ........................10 8.1 FCC Compliance ........................... 10 9. Specifications ......................10 10. Technical Support ....................11 11. Three-Year Limited Warranty .................. 11 FLIR MR59 USER MANUAL Document Identifier: MR59-en-US_AB... -
Page 3: Advisories
1. Advisories 1.1 Copyright © 2018, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of FLIR Systems. -
Page 4: Introduction

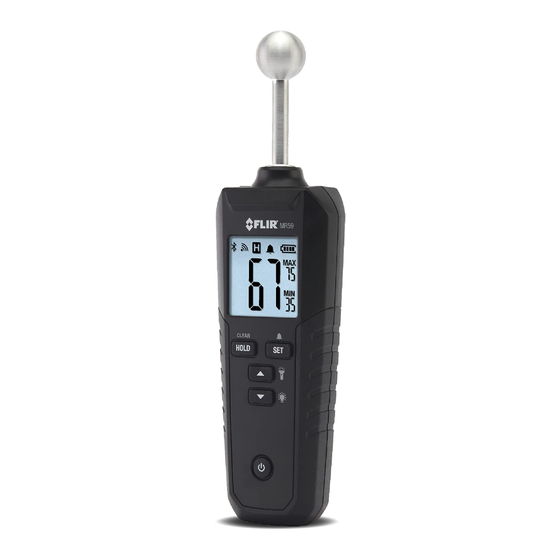

2. Introduction Thank you for selecting the FLIR MR59 Ball Probe Moisture Meter with Bluetooth®. This instrument detects moisture in wood and other building materials and transmits readings to a remotely paired smart device. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. -
Page 5: Display Description
In the Alarm limit mode, increase the moisture alarm threshold In the Alarm limit mode, decrease the moisture alarm threshold Long press to switch Worklight ON/OFF Long press to the switch display backlight ON/OFF FLIR MR59 USER MANUAL Document Identifier: MR59-en-US_AB... -
Page 6: Operation
LCD backlight ON/OFF. Over use of the backlight will shorten battery life considerably. 4.6 Worklight Long press the Worklight button to switch the light ON/OFF. To conserve battery life use the light only as needed. FLIR MR59 USER MANUAL Document Identifier: MR59-en-US_AB... -
Page 7: High Moisture Audible Alarm
4.7 High Moisture Audible Alarm The MR59 beeps when the moisture reading exceeds the high alarm limit. To set the alarm limit, short press the SET button and use the arrow buttons to set the value. To exit the alarm programming screen, short press the SET button again. To enable/disable the audible alarm, long press the SET button. -
Page 8: Field Firmware Upgrades Via Usb Interface
6. Field Firmware Upgrades via USB Interface The MR59 includes a micro USB port, located inside the battery compartment. The USB port allows the user to upgrade the System firmware or the Bluetooth® firmware by first downloading an upgrade file from the FLIR website and then connecting the meter to a PC to transfer the file to the meter. -
Page 9: Bluetooth® Firmware Upgrade
Section 6.1, System Firmware Upgrade, above. If there is an error, the ‘Err’ icon will flash and the meter will return to the normal operation mode. If this error occurs, please repeat the upgrade procedure. If the problem persists, contact FLIR technical support. 7. Maintenance 7.1 Cleaning ... -
Page 10: Safety
4.0” (100mm), this may vary depending upon material under test. Response time 0.5 seconds Display Backlit, multifunction LCD Worklight High intensity white LED Auto Power OFF (APO) After 30 minutes Power supply 9V battery (rear compartment) FLIR MR59 USER MANUAL Document Identifier: MR59-en-US_AB... -
Page 11: Technical Support
+1 855-499-3662 option 3 (toll-free) 11. Three-Year Limited Warranty This product is protected by FLIR’s 3-Year Limited Warranty. Visit www.flir.com/testwarranty to read the 3-Year Limited Warranty document. Register your product at the website to receive a free 1-year warranty extension. - Page 12 Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855-499-3662 option 3 (toll free) Publication Identification No.: MR59-en-US Release Version: Release Date: August 2018 Language: en-US FLIR MR59 USER MANUAL Document Identifier: MR59-en-US_AB...
