Installation

Framing
The Revillusion Built-in Electric Firebox does not require any special venting.
1.

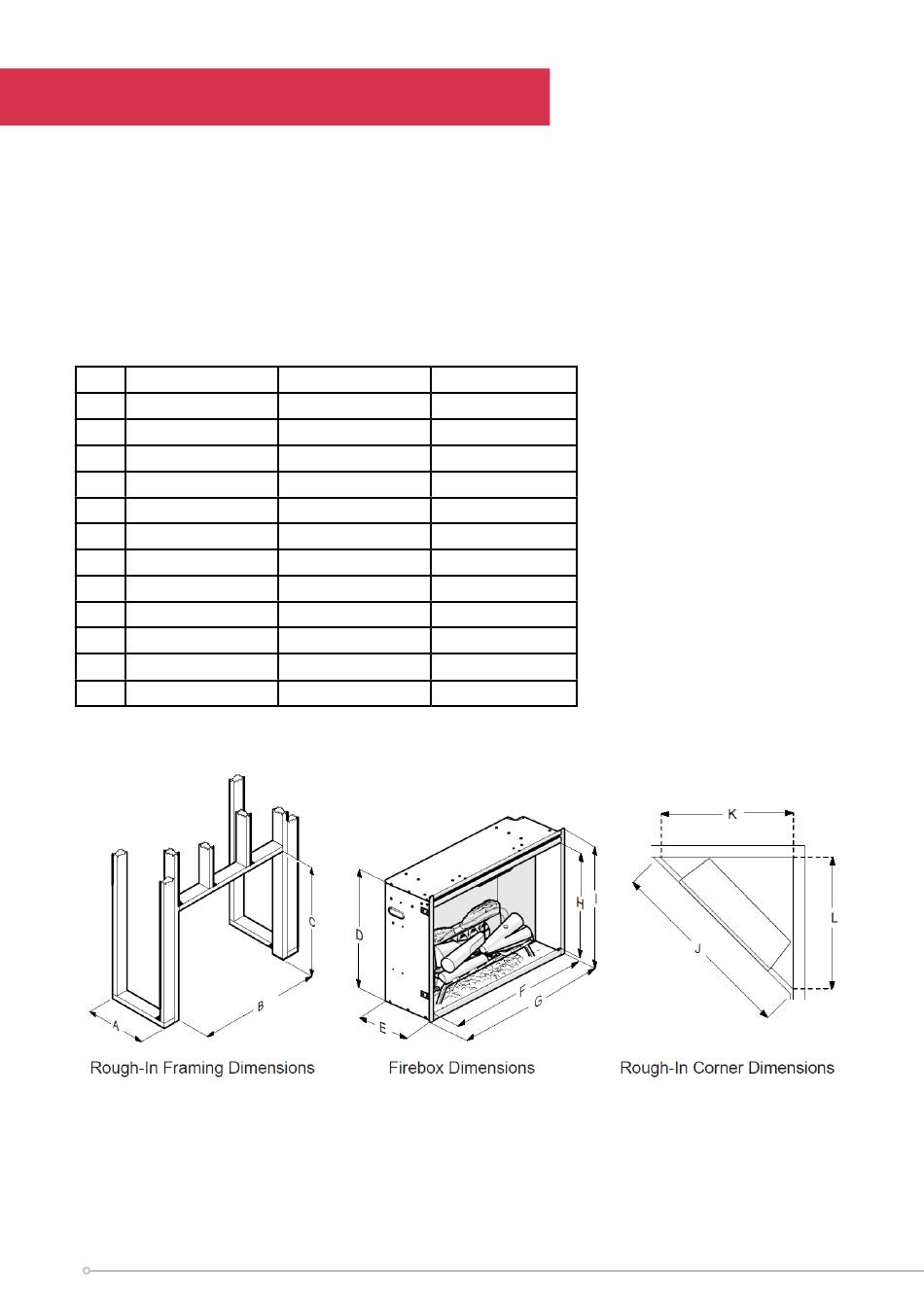

2. Rough in the framing opening. Follow the recommended framing dimensions below.
NOTE: The materials used for the finished surround must be cut to precise dimensions
(dimensions B & C) as the 0.6cm self trimming flange is only to create a finished
appearance.
RBF30C
A 318mm
B 778mm
C 665mm
D 654mm
E 306mm
F 746mm
G 792mm
H 578mm
I 6764mm
J 1378mm
K 978mm
L 978mm
8
RBF36C RBF42C
318mm 318mm
930mm 1083mm
665mm 778mm
654mm 768mm
306mm 306mm
898mm 1053mm
944mm 1098mm
578mm 691mm
674mm 788mm
1524mm 1689mm
1080mm 1194mm
1080mm 1194mm
