Figure 1-6 Connecting A Serial Terminal To An L2 Controller - Silicon Graphics Altix 350 Quick Start Manual

1: SGI Altix 350 Quick Start Guide
8
If your Altix 350 system was shipped in a rack with an optional Level 2 controller, you should
connect a serial terminal to that Level 2 controller, which is located in the top of the rack as shown
in Figure 1-6 (this view shows the back of the rack).
Serial terminal

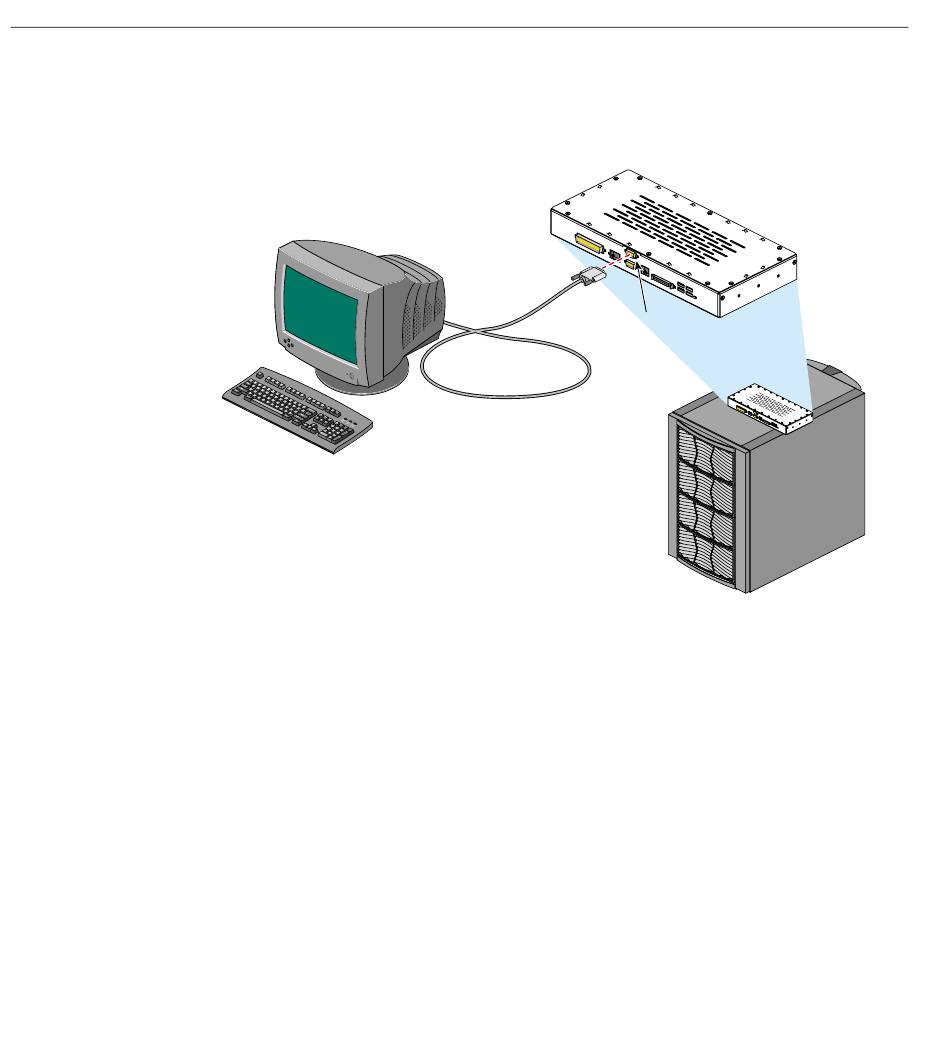

Figure 1-6 Connecting a Serial Terminal to an L2 Controller
L2 controller
Console port
SGI Altix 350
system
