1: SGI Altix 350 Quick Start Guide
6
Figure 1-4 shows a system with a base compute module, one CMPX module, and one CPU
expansion module.
NUMAlink 0
NUMAlink 0
NUMAlink 0

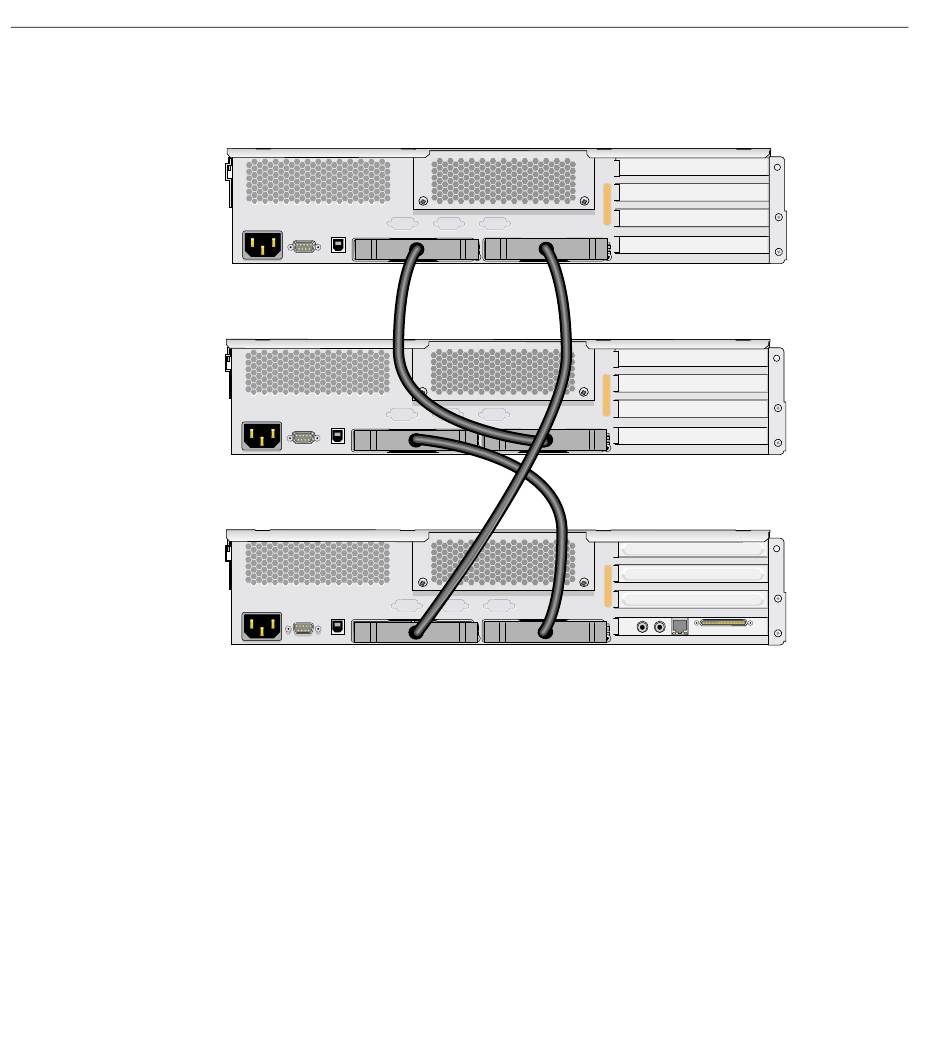

Figure 1-4
Cabling in a Three-module Altix 350 System
NUMAlink 1
NUMAlink 1
NUMAlink 1
CPU
expansion
module
CMPX
module
Base compute
module
007-4417-001
