Waltron 9033X User Manual

Sodium analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

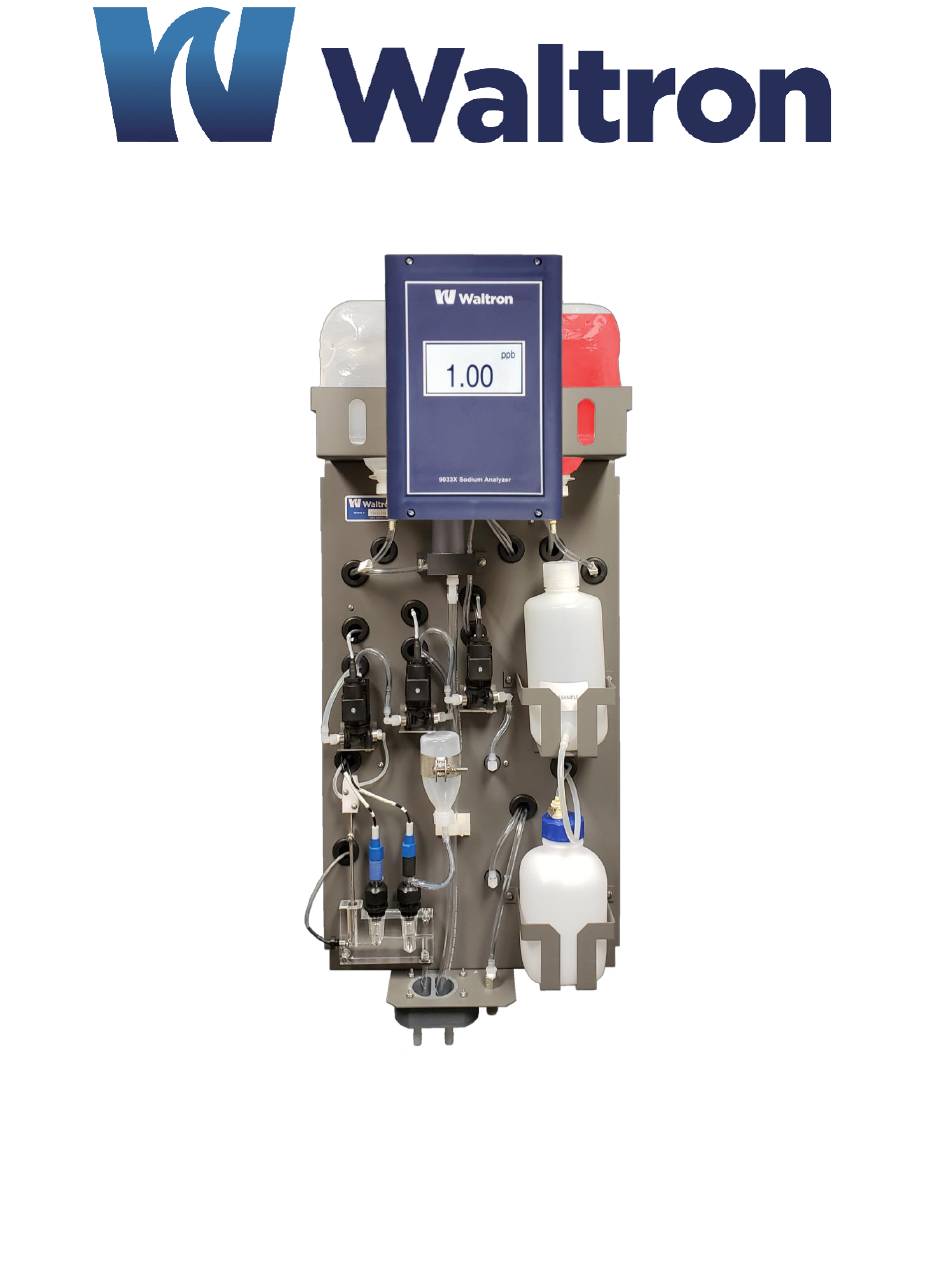

EXPERTS IN WATER CHEMISTRY SINCE 1903
9033X Sodium Analyzer
User Manual
101-044-E.1

Advertisement

Table of Contents
loading

Related Manuals for Waltron 9033X

Summary of Contents for Waltron 9033X

  • Page 1 EXPERTS IN WATER CHEMISTRY SINCE 1903 9033X Sodium Analyzer User Manual 101-044-E.1...
  • Page 2  Calibration slope values and detailed description of problem. Waltron’s technical expertise and extensive experience provides personalized solutions to the water quality industry. It is Waltron’s commitment to provide the customer with timely and accurate technical service and support. Waltron fully expects the customer to be satisfied with the quality, performance, and cost of this product.
  • Page 3  Follow all regulations and warning labels when disposing of chemicals. Do not mix chemicals. To obtain analyzer safety information or Safety Data Sheets (SDS), please contact Waltron or logon to www.waltron.net . Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 4 If, within one year from the date of shipment, the customer experiences any equipment defects or is not satisfied with the analyzer manufacturing, Waltron will repair, or at its option, replace any defective part(s) free of charge. This warranty requires that the defective part(s) be returned to Waltron with shipping charges prepaid.
  • Page 5 9033X Checklist of Materials In order to ensure customer satisfaction, Waltron does its best to provide adequate and timely packaging and shipping services. Please perform the following after receiving a shipment:  Inspect all shipping containers upon receipt and record any visible damage. If there are any outward signs of damage, please retain all containers and packages for inspection by carrier.

  • Page 6: Table Of Contents

    MAINTENANCE ....................43 BUFFER SOLUTION(S) ..................43 STANDARD SOLUTIONS ..................44 ETCHING SOLUTION ..................44 REFERENCE ELECTRODE FILL SOLUTION (For Use with N3010-174) ....45 SCHEDULED SERVICING ..................45 5.5.1 WEEKLY ......................45 Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 7 MONTHLY ..................... 45 SHUT-DOWN PROCEDURE - (Prolonged Shut-Down, 1+ months) ....46 5.6.1 STORAGE OF ELECTRODES ................47 pH EFFECTS......................47 SPARE PARTS ..................... 48 TROUBLE-SHOOTING ..................50 SPECIFICATIONS ....................53 APPENDIX ......................54 Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 8: Introduction

    Sampling points for power generation include mixed bed outlets, extraction pump discharge, boiler feed, boiler drum and steam. The measurement range of the 9033X analyzer spans from 0.01ppb to 10ppm. 1.2 MAIN FEATURES Features of the 9033X Sodium Analyzer unit include: 1.

  • Page 9: System Description & Architecture

    9033X 1.3 SYSTEM DESCRIPTION & ARCHITECTURE The 9033X Sodium analyzer system is comprised of the following: 1. Wet-Section (Sensor Unit) a. Reagent solution containers b. Hydraulic panel consisting of constant head, flowcell, tubing, thermistor and 3 solenoid valves c. Sodium and reference electrodes d.

  • Page 10: Wet Section Unit

    9033X 1.3.1 WET SECTION UNIT The 9033X Sodium system is capable of monitoring sodium concentrations in sample feed. Three solenoid valves are used to select between analyzing the sample, calibration solution 1 (CAL1), calibration solution 2 (CAL2) and grab sample.

  • Page 11: Pre-Amplifier

    9033X 1.3.2 PRE-AMPLIFIER The 9033X Sodium analyzer requires a pre-amplifier unit which amplifies and converts the voltage output from the electrodes into proportionate current. Thermistor output is also fed to transmitter unit via pre-amp section. The pre-amplifier houses the wiring connection terminals from electrodes.

  • Page 12: Location And Layout

    2.1.1 LOCATION AND LAYOUT Mount the analyzer in a clean, vibration-free area avoiding direct radiant heat, sunlight and drafts. Avoid areas containing chlorinating equipment. The 9033X Sodium analyzer default design has the two main sections (transmitter and wet section) combined as a single unit.

  • Page 13: External Piping Connections

    2.4.1 PROBE CONNECTIONS Wires coming from Pre-Amp Quick connect electrode connection Sodium Reference (Measuring) Electrode (Refillable Electrode version shown) Probe positioning clamp (finger tighten) Flowcell Figure 6. Placement of electrodes in the flowcell. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 14: Gel Filled Reference Electrode (Alternate)

    Electrode Electrode Probe positioning clamp (finger tighten) Flowcell Adjust tip 5-10mm into sample The Gel filled reference electrode has an inner element consisting of a gel solution which does NOT require electrolyte refilling. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 15: Automatic Kcl Refill System (Optional)

    6. Poke a small hole in the top of the bottle so KCl flows freely and vacuum does not form. 7. Rinse off any spilled KCl with DI water before installing probe in the flowcell. (KCl will interfere with sample reading if it gets in the flowcell.) Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 16: Probe Installation Procedures

    Refer to figure below. Tip of reference Tip of measuring electrode electrode positioned 5mm positioned just off into sample Figure 8. Proper installation of the bottom of flowcell electrodes in the flowcell. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 17: Electrical Connections

    Solenoid 3 – G.S. KCl Refill Reservoir Bottle Clamp Entrainment T Heat Exchanger (behind plate) Measuring Probe Reference Probe Reagent Bottle Thermistor Sample Drain Overflow Drain Sample Inlet Figure 9. The wet section layout and connections. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 18: Pre-Amp Unit

    1. Multicore cable (8-Core) for interfacing the transmitter unit with pre-amp at J3. Pin 1 (Black Wire) Pin 2 (White/Black Wire). Pin 3(Red Wire) Pin 4(White Wire) Pin 5(Red/Black Wire) Pin 6(Green Wire) Pin 7(Blue Wire) Pin 8(Orange Wire) Pin 4(Shield). Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 19: Transmitter Unit

     Sample Flow Switch IF INSTALLED - OPTIONAL 4-20 mA Output RS485 Flow Switch Alarm (Optional) Relays Solenoid Power Valves 1,2,3 Supply Pre-Amplifier Power Input Figure 12. The layout and connections for the transmitter case. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 20 Connecting the power supply earth (ground) ensures the safety of assembly personnel, reduction of the effects of Radio Frequency Interference (RFI), and ensures operation of the power supply interference filter. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 21 Pin 4 NC 6 o Pin 5 COM 6 o Pin 6 NO 6  High Alarm o Pin 7 NC 7 o Pin 8 COM 7 o Pin 9 NO 7 Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 22 Pin 4: - EV2 – Solenoid Valve 2 (Calibration Standard 2 [1000ppb]) – Black Pin 5: + EV3 – Solenoid Valve 3 (Grab Sample) – Red Pin 6: - EV3 – Solenoid Valve 3 (Grab Sample) – Black Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 23: Operating The Analyzer

    Drain Figure 15. Sample flow during normal operation. The 9033X Sodium analyzer system is comprised of a stainless steel backplate. The internal hydraulic components and pipe work are mounted directly onto the metal backplate. Sample enters through the inlet compression fitting at the bottom of the case and first passes through the sample flow switch before going to the heat exchanger.
  • Page 24 The display then shows the ppm/ppb concentration of the sample while the analyzer compensates for the variations in the sample temperature automatically. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 25: Alarms

    3.2 ALARMS Sample Concentration Alarms When the 9033X Sodium system is in normal operation mode one alarm operates as a “low” alarm and the other operates as a ‘high’ alarm. Alarm 1 (A1) operates as a LOW alarm and is activated when the sodium level decreases below the set value. Alarm 2 (A2) operates as a HIGH alarm and is activated when the sodium level increases above the set value.

  • Page 26: Software Structure Map

    The default display when the analyzer is online is the Main Menu in User Mode. In User Mode the user is able to access only the COMMANDS window and the DISPLAY window and all functions within these windows. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 27: Commands Window

    The GRAB SAMPLE cycle is helpful in that it can be used as a bench test or QA/QC check. The grab sample is used to measure the sodium concentration of any “grab sample” solution. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 28 10 minutes; final millivolt output for CAL1 (m1) reading is taken and stored into memory. 5. Calibration is complete. Results are shown on display for 1 minute and then stored in the Calibration Data Log. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 29 CF. The frequency of calibrations depends on the operating conditions and electrode conditions. Waltron recommends performing a 2-Point calibration at least once a week to eliminate drift due to changing electrode response. Description of 2-Pt Calibration Process: 1.
  • Page 30 The analyzer calibrates by changing the offset of the strength/slope taken during the last 2-Pt calibration. To perform Process Calibration: From the Commands Window, press the “PROCESS CAL” button. Press on the “0.0 ppb” to open the numerical keypad. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 31 “Process cal. value” window. If you wish to make changes to the entered value, press the number “XX.X ppb” to edit the value and hit “ENT” again. Press “CALIBRATE” when ready. The Process Calibration will begin. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 32: Display Window

    The analyzer can graph real time the last 10 minutes of the sensor reading in mV. Each vertical line represents two minutes. The Y axis represents the sensor output in mV. To access the Display Window: Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 33 To simulate the 4-20mA output press on the button and then enter a value as a percentage into the white box using the keypad. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 34 Dates are displayed in YY.MM.DD format. Results are recorded to the nearest hudredth of a ppb. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 35 The last 10 alarms are saved under the Alarms Datalog with red text. The user may press on the red text to turn it green to indicate the alarm has been addressed. A description of all the alarms are given in Section 3.2 Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 36: Main Menu - Service Mode

    More features are available for the advanced user within the Service Mode which is password protected. To access Service Mode: From the Main Menu, select “service” from the drop down menu at the top of the screen. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 37 3.4.5.1 Configuration Window – Service Mode The Configuratin Window will give you access to calibration setup and general settings. To access the Configuration Window: From the Main Menu under service mode, press the “CONFIGURATION” button. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 38 Week frequency = 4 will set calibration for every 4 weeks. If you wish to turn automatic calibration off, set Wee frequency = 0. Waltron recommends week frequency = 1 for optimal performance of your analyzer.

  • Page 39: Service Menu

    3.4.6 SERVICE MENU The service menu allows you to adjust some of the programming of the analyzer. The software version number is indicated in the menu bar at the top of the window. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 40 Average factor: increasing the average factor will increase noise dampening and decrease response time of the analyzer. Waltron recommends Average factor = 30 Sensor data: this is a free text field up to 12 characters. The user may input the date of exchange of a new sensor, the name of a sensor, etc.

  • Page 41: Auto Calibration

    (See next section - Troubleshooting). NOTE: During single and two point calibrations sample needs to be delivered to analyzer at flow rate of 150-400ml/min. If not, calibration will result in CF. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 42: Troubleshooting - Calibration Fail

     Make sure standard containers (CAL1 and CAL2) are full of solution.  Make sure the low 100ppb standard is connected to Cal1 tubing and high 1000ppb standard is connected to Cal2 tubing. Note that the high standard is red in color. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 43: Maintenance

    Wear rubber gloves and eye protection. In warm weather pressure increases in the bulk container of ammonia and the cap must be released with care. Note. Waltron offers Ammonium Hydroxide in a 2.5 liter container. Part N1234-116. Diisopropylamine Solution WARNING! Diisoproplyamine is an extremely inflammable and irritating colorless liquid with a strong smell of ammonia.

  • Page 44: Standard Solutions

     Waltron offers Sodium Standard, 100 ppb, in a 1 gallon container. Part Number N1234-540.  Waltron also offers Sodium Standard, 1 ppm, in a 1 gallon container. Part Number N1234-541. Note that the high calibration standard is red in color to avoid confusion when installing calibration standards.

  • Page 45: Reference Electrode Fill Solution (For Use With N3010-174)

    5.4 REFERENCE ELECTRODE FILL SOLUTION (For Use with N3010-174) Waltron offers a stock solution of 3.5 KCL Ref. Electrode Filling Solution in a 2oz. size. Part Number N1234-548. This solution is required for refilling the calomel reference electrode. This solution should be stored in a tightly sealed plastic bottle.

  • Page 46: Shut-Down Procedure - (Prolonged Shut-Down, 1+ Months)

    24 hours after replenishment to allow pH stability to be achieved. This procedure applies to both ammonia and amine buffered systems. 5.6 SHUT-DOWN PROCEDURE - (Prolonged Shut-Down, 1+ months) o Close the sample valve upstream of the monitor. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 47: Storage Of Electrodes

    100ppb Na+, the pH must be greater than 8.4 o 10ppb Na+, the pH must be greater than 9.4 o 1ppb Na+, the pH must be greater than 10.4 o 0.5ppb Na+, the pH must be greater than 11.4 Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 48: Spare Parts

    Consumable Parts PART NUMBER DESCRIPTION N1234-540 Sodium Standard, 100ppb, 1 Gallon Cube, 9033X N1234-541 Sodium Standard, 1000ppb (1 ppm), Red, 1 Gallon Cube, 9033X N1234-548 3.5 M KCl Reference Solution Kit, 9033X N1234-116 29% Ammonium Hydroxide (2.5 L) N1234-579 99% Di-Isopropylamine (1 Gallon) N1234-543 Sodium Electrode Regeneration Solution (2 fl.oz.)
  • Page 49 P2000-039A Flowcell Assembly, 9033X N3010-170C Thermistor N1053-106A Earthing Tube K1152-200 Nupro Filter, Stainless Steel, 60 Micron P2000-009B Pre-Amp Assembly, 9033X, BNC Connections P2000-054 Solenoid Cable Assembly N2554-066A Entrainment “T” Assembly P5000-019 Transmitter Assembly, Sodium X Series N1142-116B Buffer Bottle, Square...

  • Page 50: Trouble-Shooting

    Strength is too high. >110 Make sure both containers of standard are full of solution. Calibration Fail Strength is too high. >110 Check level of reference electrode salt bridge solution; add more if necessary Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 51 Readings are not accurate – Poor electrode Regenerate/replace sodium too high. performance. Bad measuring electrode, calibration. Sodium leak in refill/replace reference sample system. electrode. Check calibration log and run another calibration if last result is not good. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...
  • Page 52 No thermistor response. Clean/replace thermistor. Check thermistor connection at pre-amp. Display read “OVR” Signal from electrodes too Check sample high – sample concentration. Check concentration over electrode connections at maximum range (>10ppm) pre-amp. Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 53: Specifications

    Composition: Sample should be filtered to 60 microns, free of film forming compounds Power Less than 20VA Consumption: Sample Inlet ¼” Swagelok Fitting: Sample Outlet Barbed fitting for 3/8” ID hose connection Fitting: Waltron User Manual 101-044-E.1 9033X Sodium Analyzer...

  • Page 54: Appendix

    -180.83 2 ppm -163.02 5 ppm -139.47 10ppm -121.67 Approximate electrode mV outputs for calibrations using Waltron Electrodes: Refillable Reference Electrode Gel-Filled Reference Electrode mV 1 (100 ppb) mV 2 (1 ppm) mV 1 (100 ppb) mV 2 (1 ppm)
