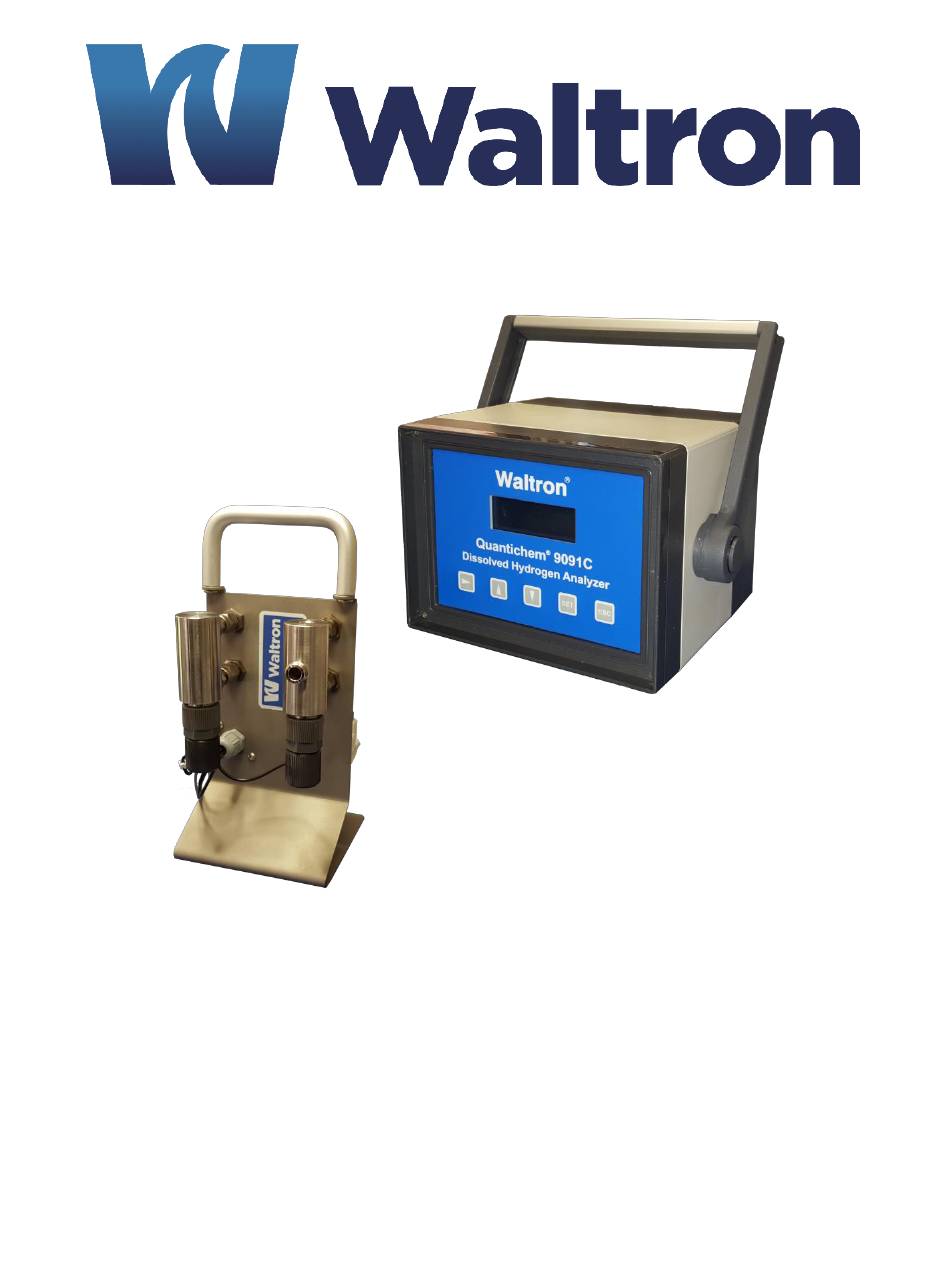

- Page 1 EXPERTS IN WATER CHEMISTRY SINCE 1903 9091C Dissolved Hydrogen Analyzer User Manual Revision 2.04...
- Page 2 It is Waltron’s commitment to provide the customer with timely and accurate technical service and support. Waltron fully expects the customer to be satisfied with the quality, performance, and cost of this product. If there are any questions or concerns regarding this product, please feel free to contact Waltron at (908)-534-5100.
- Page 3 Keep analyzer chemicals away from heat and extreme temperatures. Reagent powders must be kept dry. Follow all regulations and warning labels when disposing of chemicals. Do not mix chemicals. To obtain analyzer safety information or Safety Data Sheets (SDS), please contact Waltron or visit the website at www.waltron.net...
- Page 4 Warranty Agreement If, within one year from the date of shipment, the customer experiences any equipment defects or is not satisfied with the analyzer manufacturing, Waltron will repair, or at its option, replace any defective part(s) free of charge. This warranty requires that the defective part(s) be returned to Waltron with shipping charges prepaid.
- Page 5 Checklist of Materials In order to ensure customer satisfaction, Waltron does its best to provide adequate and timely packaging and shipping services. Please perform the following after receiving a shipment: Inspect all shipping containers upon receipt and record any visible damage. If there are any outward signs of damage, please retain all containers and packages for inspection by carrier.
-
Page 6: Table Of Contents
Table of Contents INTRODUCTION ....................7 AREAS OF APPLICATION ................7 DESCRIPTION OF DEVICE ................8 THE MEASURING SYSTEM ................. 10 BLOCK DIAGRAM OF SENSOR SYSTEM ..........11 INSTALLATION ....................12 DELIVERED PARTS ..................12 ACCESSORIES ....................12 TECHNICAL DATA ..................13 OPERATING PROCEDURES ................ -
Page 7: Introduction
1 INTRODUCTION 1.1 AREAS OF APPLICATION The Waltron 9091C Dissolved Hydrogen Analyzer is used for the automatic, continuous measurement and control of hydrogen concentration in aqueous solutions. Examples of the applications of the unit include the determination of residual hydrogen concentration... -
Page 8: Description Of Device

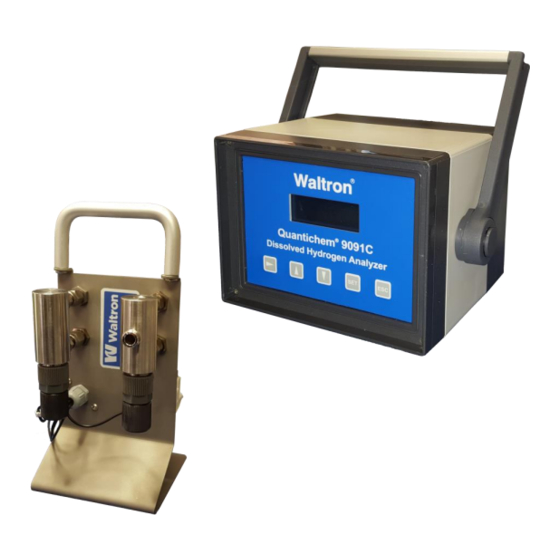

(<10,0 µg/l) up to saturation concentrations of higher than 1600 µg/l under normal conditions. The Waltron 9091C Dissolved Hydrogen Analyzer can be divided into two primary function parts. The first is the electronic component which consists of the display and input elements as well as the measuring data collection and data processing elements. - Page 9 This sturdy and reliable measurement system makes it possible to operate very accurately, even under extremely harsh operating conditions. Waltron 9091C Dissolved Hydrogen...
-
Page 10: The Measuring System
1.3 THE MEASURING SYSTEM Measuring cell Calibration cell... -
Page 11: Block Diagram Of Sensor System
1.4 BLOCK DIAGRAM OF SENSOR SYSTEM... -
Page 12: Installation
2 INSTALLATION 2.1 DELIVERED PARTS WALTRON Plug Arrangement Rear Analog Output Color Code Analog Output Digital → 0/4…..20 mA + White Output → 0/4…..20 mA - Brown Main Sensor → Green Limit (low) Connection Connection → Yellow Common → Gray Limit (high) 2.2 ACCESSORIES... -
Page 13: Technical Data
2.3 TECHNICAL DATA Measurement principle:..microprocessor based, potentiostatic three electrode system Calibration:......build-in, single button operation Auto-calibration:....option Measuring range: Measuring group I:....0,0..500,0 µ g/l range selectable between 20..500 µg/l Measuring group II:....0,00..20,00 mg/l range selectable between 4..20 mg/l Auto-changing-range:.... -
Page 14: Operating Procedures
3 OPERATING PROCEDURES 3.1 PRINCIPLE OF MEASUREMENT The new patented 9091C Dissolved Hydrogen Analyzer electrochemical hydrogen sensor functions in a potentiostatic mode with an open three-electrode system. The measuring electrode is made of solid titanium, coated with platinum. The counter electrode is made of stainless steel and the reference electrode of silver/silverchloride. -
Page 15: Calibration Via Electrolysis
3.2 CALIBRATION VIA ELECTROLYSIS The calibration cell contains two stainless steel electrodes, between which water is dissociated by a constant, controlled, current. According to Faraday’s law the rate of hydrogen production in the calibration cell is directly proportional to the current. A constant electric current of 13.4 mA, for example, produces an increase in the hydrogen concentration of 50 µg/l at a flow rate of 10 l/h. -
Page 16: Start-Up
4 START-UP 4.1 MENU STRUCTURE 100 μg/l Please insert PIN > 10.4 μg/l 0000 9.1 l/h 22.2°C Menu 01/11 Range 000.0 μg/l Range > CalModus ElyseCal ElyseCal Countdown ElyseCal > Press > to start Elyse 6:00 min Menu 02/11 CalModus SubCal 000.0 μg/l CalModus >... - Page 17 from previous Menu 08/11 Logging Logging Info Logging > Info > Logging active 01.01.00 12:00 000011 entries Logging Info Logging stopped 01.01.00 12:00 No entries Logging Logging Interval Interval > 10 sec Logging Interval 30 sec Logging Interval 1 min Logging Interval 2 min Logging Interval...
-
Page 18: Preparing To Measure
4.2 PREPARING TO MEASURE Before you start measuring you my perform the following procedures. 1. The electrical power supply has to be connected according to the local power authority guidelines with the terminal box, with witch the connectors to the 0(4)...20 mA analog output (see the circuit diagram on the cover plate) should be combined. - Page 19 > and AutoCal >. (option only). With the key you can go ahead. With the key will release the electrolytic calibration if you start from position ElyseCal >. From SubCal > you are setting the present hydrogen concentration digit for digit, finally push key SET.
-
Page 20: Measuring Mode
5 MEASURING MODE 5.1 OPERATING CONDITIONS For an accurate measurement of hydrogen the probe’s environment must fulfill certain conditions regarding conductivity, flow, temperature and pressure. The probe conductivity must be 10 µS/cm; otherwise the salt cell must be refilled (see also Section 4.2). ... -
Page 21: Maintenance
2) If you selected the calibration mode SubstCal > in the CalModus : You start the calibration procedure by pressing key (suitable for Hydrogen measuring). The display changes to: SubCal 000.0 μg/l The setting of the present hydrogen concentration is performed digit for digit. If the value is correct, press key SET. -
Page 22: Cleaning Of Cells
6.2 CLEANING OF CELLS The cleaning cycle of both the counter electrodes of the measuring and calibration cells is the same as those of the measuring electrode and calibration electrode. To clean the counter electrodes, you close the inlet valve and remove the plug connectors (A), (K) for the calibration cell, as well as (M), (C) and (R) for the measuring cell. -
Page 23: Spare Parts And Accessories
If you observe unsteady or unlikely results during the measurements, check if the plug connectors are dry and make sure that the reference electrode is completely immersed into the KCl-solution. During longer periods, where no measurement a takes place, (for example longer than 3 weeks) it is advisable to clean the analyzer.
