- Page 1 F O R S M A L L B U S I N E S S Quick Installation Guide IP PHONE SYSTEM CooVox-T200...

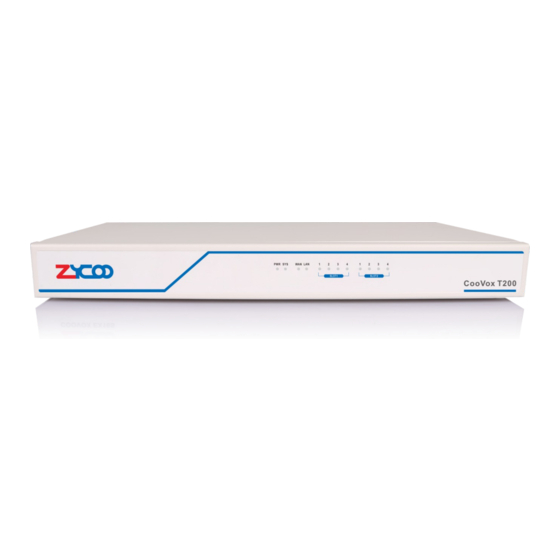

- Page 2 CooVox-T200 Thank you for using the ZYCOO IP PBX, Please read the instructions carefully before use. CooVox-T200 is an easy-to-config and delicate moderate-sized IPPBX system specially designed for SMEs. CooVox-T200 is well suited for enterprises with around 200 people, and it fulfills all the needs of an enterprise's office phone system.
-
Page 3: Table Of Contents
CONTENTS 1 ....Package Contents 2 ....Hardware Installation 2. -
Page 4: Package Contents
Package Contents Thank you for purchasing ZYCOO IP phone system. These are the items Included with your IP phone system purchase: Power Adapter(1PCS) Antenna(only for GSM) IP PBX T200(1PCS) Network cable(1PCS) Two mounting brackets Quick Installation Guide and fittings (1PCS) -
Page 5: Hardware Installation
Hardware Installation The followings are the instructions for setting up ZYCOO CooVox-T200 IP PBX. Please refer to the illustration and follow the simple steps below to quickly install your IP phone system. Safety Precautions To avoid any device damage and bodily injury caused by improper use, please observe the following rules. - Page 6 Site Requirements 40℃ 0℃ To ensure normal operation and long service life of the device, please install it in an environment that meets the requirements described in the following subsection. Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may lead to bad insulation, electricity leakage, mechanical property changes and corrosions.
- Page 7 The dust accumulated on IP PBX can be absorbed by static electricity and result in poor contact of metal contact points. Some measures have been taken for the device to prevent static electricity, but too strong static electricity can cause deadly damage to the electronic elements on the internal circuit board.
-
Page 8: Product Installation
Check if the module is clean and intact. Please ensure the power of IP PBX is cut off. Please ensure the direction of the module is correct (ZYCOO-logo side up). Push the module into the module slot through the guide rail. - Page 9 Rack Installation To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: Check the grounding and stability of the rack. Secure the supplied rack-mounting brackets to each side of the device with supplied screws as illustrated in the following figure. Rack-mounting Bracket Screw PW R SY...
- Page 10 PW R SY WA N LA SLO T1 SLO T2 C o o V o x T 2 After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure. Notes: 1.Please ensure the correct installation for the grounding of the rack, which is the most important guarantee of avoiding ESD, electricity leakage, lightening,...
- Page 11 Connect to Ground Connecting the device to ground is to quickly release the lightning over-voltage and over-current of the device, which is also a necessary measure to protect the body from electric shock. In different environments, the device may be grounded differently. Two measures are given in the following, of which the Grounding bar is better for the protection of lightening.
- Page 12 If the device is installed in the normal environment, the device can be grounded via the PE (Protecting Earth) cable of the AC power supply as shown in the following figure. [1] IP PBX(Rear panel) [2] AC Power Cord(with PE cable) Console Reset SLOT2...
-
Page 13: Physical Connection
Physical Connection Power Adapter PSTN Analog Phone Router... -
Page 14: Led Definitions
LED De nitions Indication Function Explaination Status Power on Power Status Power off Off System works Blink System failure System Status Off System doesn’t boot Data transfer Blink WAN Data Status Disconnected Off Connected but no data transfer Data transfer Blink Disconnected Off... -
Page 15: Basic System Configuration
Basic System Con guration Web Login Connect the CooVox-T200 with a PC directly via the WAN or LAN port. Make sure the PC and the IP-PBX are in the same network segment, that is, 192.168.1.xx if you are connected to WAN or 192.168.10.xx if you have connected to LAN. 1. - Page 16 Fu her Con guration Thank you for the purchase of ZYCOO products. The above steps introduce basic configurations for CooVox–T200. For further configurations, please refer to the user manual. If you have other questions, please contact the ZYCOO local dealers or distributors from where you purchased this product.
- Page 20 Leading IP Phone System Provider ZYCOO Co., Ltd. Address:No. 1602, 16th Floor, Building No. 599, Century City South Road, High-tech Zone, Chengdu, Sichuan Province, China Telephone:+86 (28)85337096 ext 813 / 815 Website:www.zycoo.com...
