Assembly and installation
IMPORTANT!
The Flowmax 54i must be installed without mechanical tensions on the
existing pipe system. The flowmeter may be damaged if there is tension on
the existing pipe system.
IMPORTANT!
The hydraulic screw connections on the process side must be hand-
tightened.

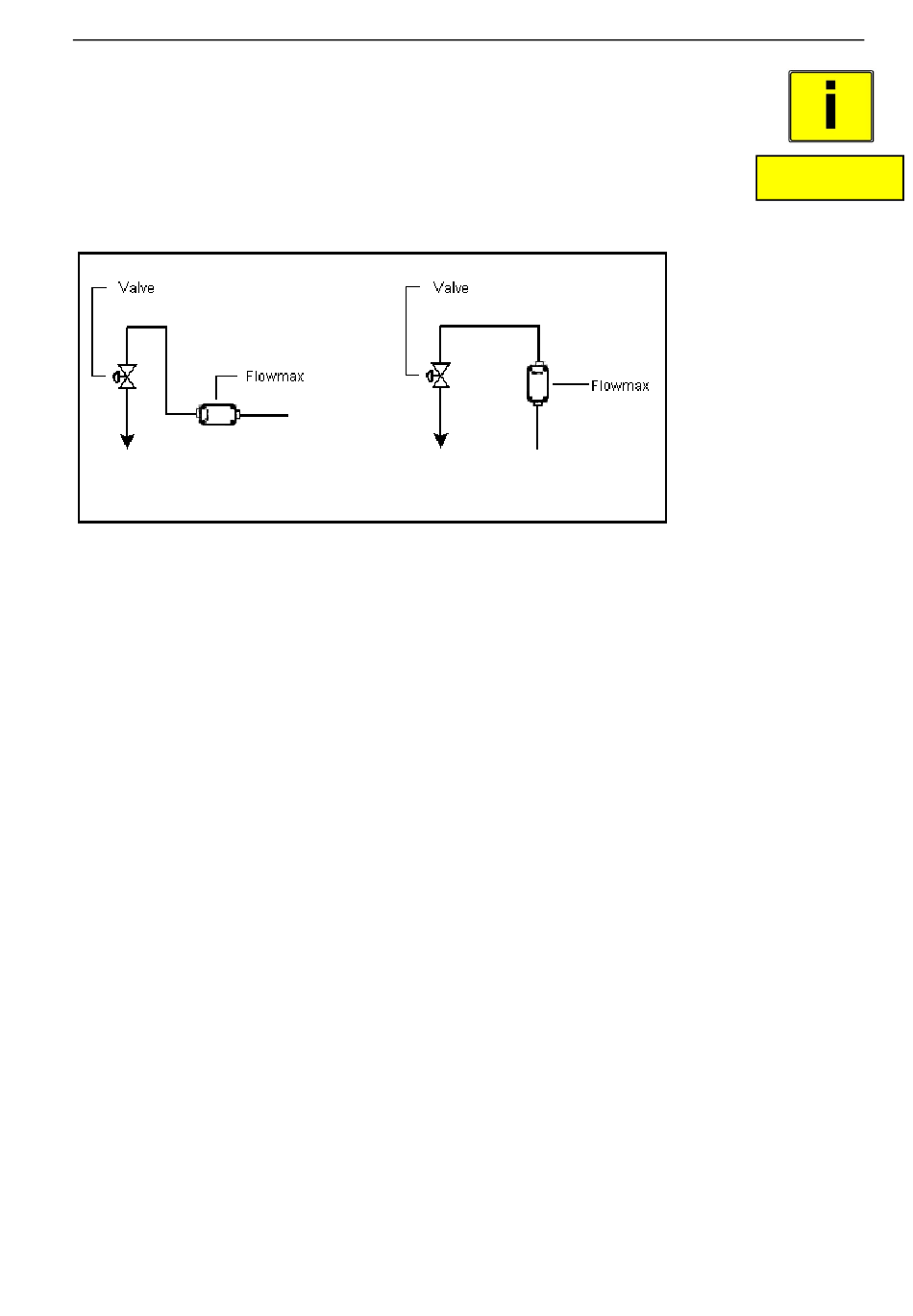

Figure 4: Mounting possibilities

Vibrations or mechanical forces may decrease measuring accuracy.
