Flowmax 42i Assembly and installation
IMPORTANT!
Flowmax 42i must be installed without mechanical tensions on the
existing pipe system. The flowmeter may be damaged if there is tension
IMPORTANT!
on the existing pipe system.
WARNING!
Non-compliance of the installation instructions may result in tearing of the
housing, liquid may leak out.
WARNING!
Valve
Valve
Flowma
Flowmax
Process Process

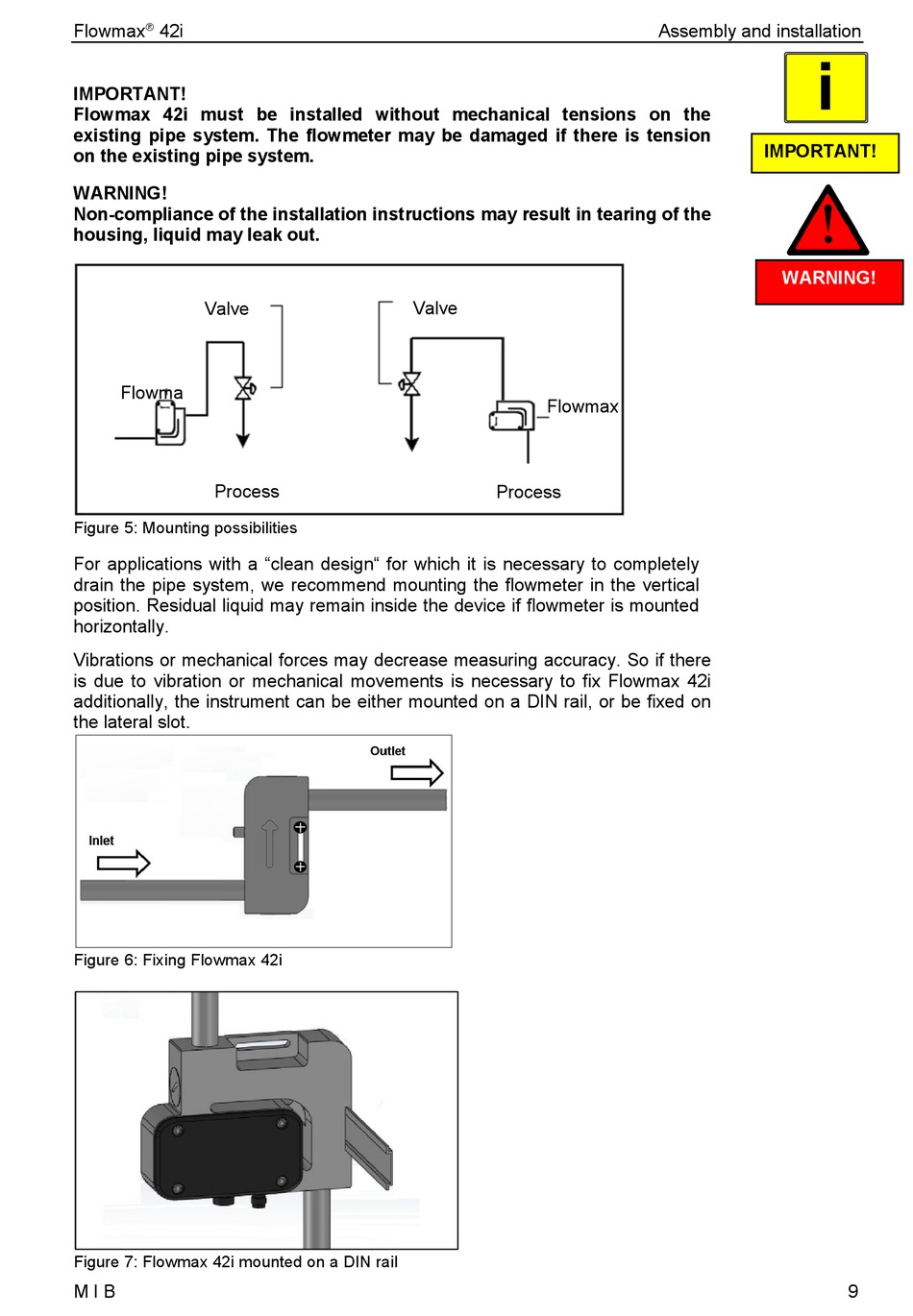

Figure 5: Mounting possibilities

For applications with a "clean design" for which it is necessary to completely
drain the pipe system, we recommend mounting the flowmeter in the vertical
position. Residual liquid may remain inside the device if flowmeter is mounted
horizontally.
Vibrations or mechanical forces may decrease measuring accuracy. So if there
is due to vibration or mechanical movements is necessary to fix Flowmax 42i
additionally, the instrument can be either mounted on a DIN rail, or be fixed on
the lateral slot.

Figure 6: Fixing Flowmax 42i

Figure 7: Flowmax 42i mounted on a DIN rail
