Assembly and installation

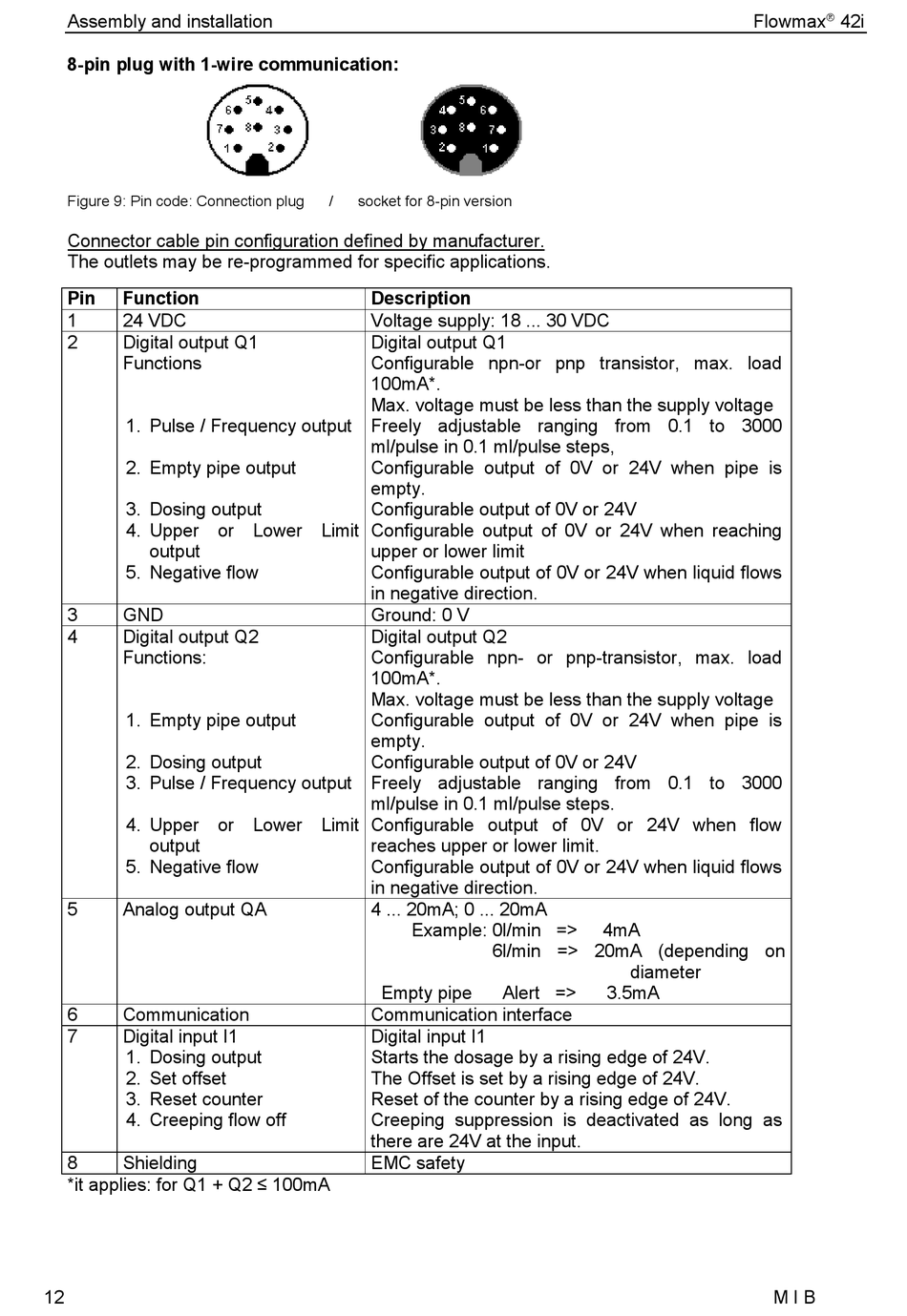

8-pin plug with 1-wire communication:
Figure 9: Pin code: Connection plug
Connector cable pin configuration defined by manufacturer.
The outlets may be re-programmed for specific applications.
Pin Function
1 24 VDC
2 Digital output Q1
Functions
1. Pulse / Frequency output
2. Empty pipe output
3. Dosing output
4. Upper or Lower Limit
output
5. Negative flow
3 GND
4 Digital output Q2
Functions:
1. Empty pipe output
2. Dosing output
3. Pulse / Frequency output
4. Upper or Lower Limit
output
5. Negative flow
5 Analog output QA
6 Communication
7 Digital input I1
1. Dosing output
2. Set offset
3. Reset counter
4. Creeping flow off
8 Shielding
*it applies: for Q1 + Q2 ≤ 100mA
12
/ socket for 8-pin version
Description
Voltage supply: 18 ... 30 VDC
Digital output Q1
Configurable npn-or pnp transistor, max. load
100mA*.
Max. voltage must be less than the supply voltage
Freely adjustable ranging from 0.1 to 3000
ml/pulse in 0.1 ml/pulse steps,
Configurable output of 0V or 24V when pipe is
empty.
Configurable output of 0V or 24V
Configurable output of 0V or 24V when reaching
upper or lower limit
Configurable output of 0V or 24V when liquid flows
in negative direction.
Ground: 0 V
Digital output Q2
Configurable npn- or pnp-transistor, max. load
100mA*.
Max. voltage must be less than the supply voltage
Configurable output of 0V or 24V when pipe is
empty.
Configurable output of 0V or 24V
Freely adjustable ranging from 0.1 to 3000
ml/pulse in 0.1 ml/pulse steps.
Configurable output of 0V or 24V when flow
reaches upper or lower limit.
Configurable output of 0V or 24V when liquid flows
in negative direction.
4 ... 20mA; 0 ... 20mA
Example: 0l/min =>
6l/min => 20mA (depending on
Empty pipe
Communication interface
Digital input I1
Starts the dosage by a rising edge of 24V.
The Offset is set by a rising edge of 24V.
Reset of the counter by a rising edge of 24V.
Creeping suppression is deactivated as long as
there are 24V at the input.
EMC safety
4mA
diameter
Alert => 3.5mA

