USB Driver Installation

The USB driver is available for download on https://multilaneinc.com/berts-gui/.
The following instructions are applicable for a manual USB driver installation using
Windows XP, Windows 7, 8 and 10.
 Power on the instrument.
 Plug-in the USB cable into the PC and connect it to the panel
Make sure the PC can locate and install the driver. If this does not happen automatically,
you will need to give Windows the path to the driver's folder.
USB Driver Installation on Windows platforms:
 Ignore the messages new hardware found or driver software not successfully
installed by pressing cancel or close.
 Go to the device manager via a right click on My Computer:
o Click on Manage.
o Click on Device Manager.
 Right click on the top-level tab
(Here multilane-PC) and select "Scan for hardware changes".

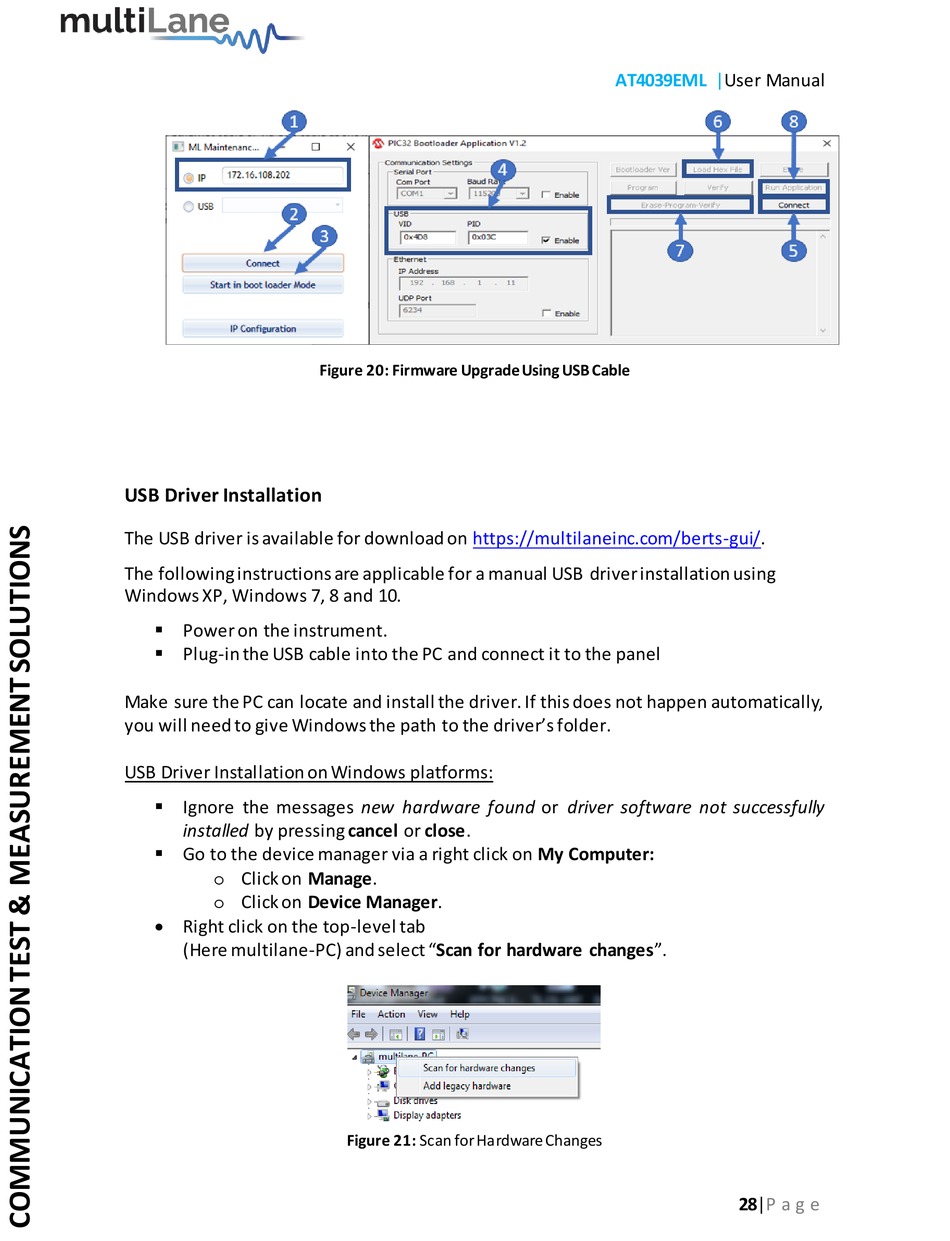

Figure 20: Firmware Upgrade Using USB Cable
Figure 21: Scan for Hardware Changes
AT4039EML |User Manual
28|P a g e
