Summary of Contents for MULTILANE ML4015E

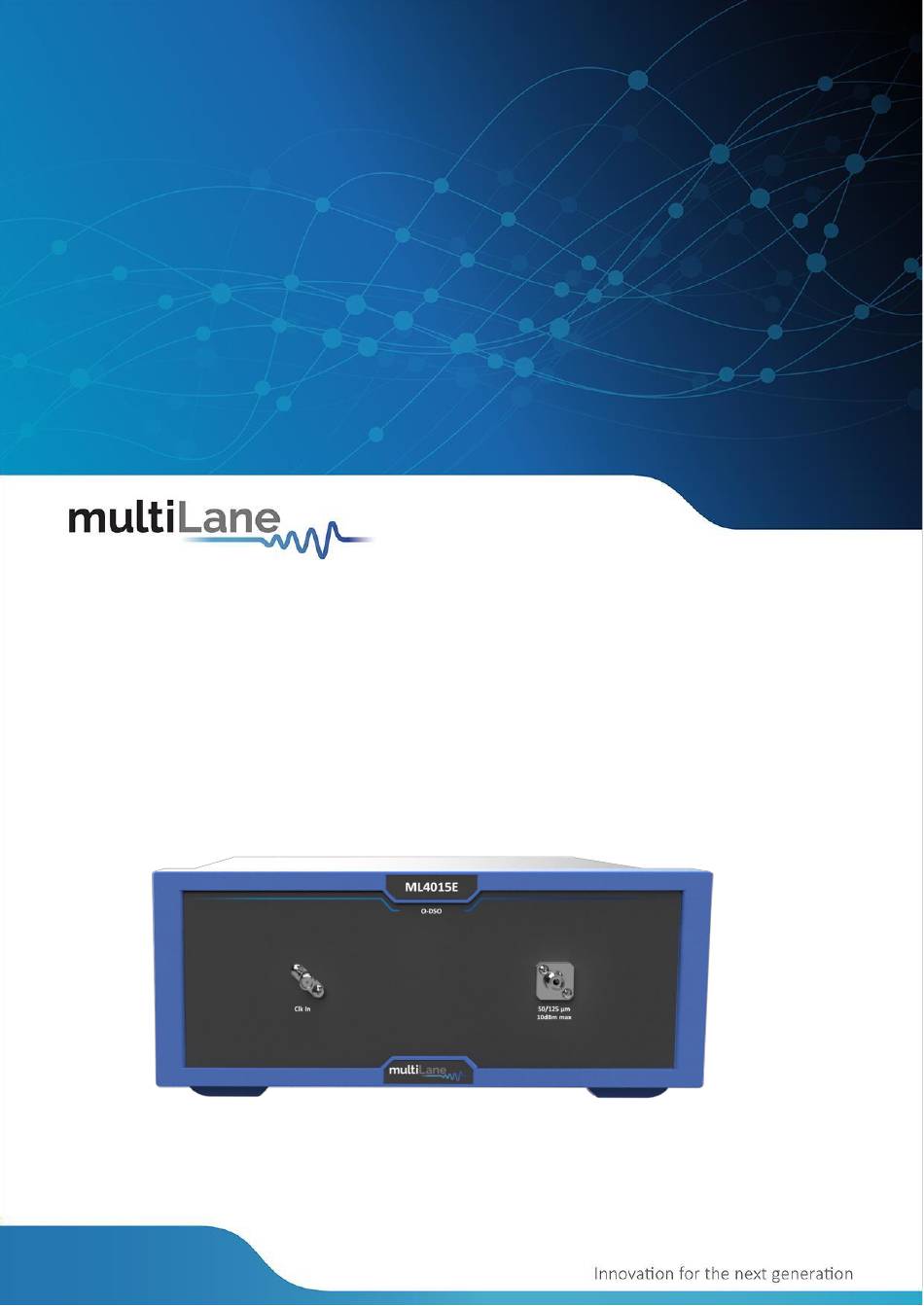

- Page 1 USER MANUAL ML4015E User Manual Connection | Installation | Calibration | Measurement | Troubleshooting User Manual Revision 1.0, May 2024...
- Page 2 Copyright © MultiLane Inc. All rights reserved. Licensed To Avoid Fire or Personal Injury software products are owned by MultiLane Inc. or its suppliers and are protected by United States copyright Use Proper Power Cord. Only use the power cord specified laws and international treaty provisions.
-
Page 3: Table Of Contents
CONTENTS This User Manual consolidates instructions to operate the MultiLane ML4015D Digital Sampling Oscilloscope. CONTENTS ........................3 INTRODUCTION ........................ 4 Product Features ........................5 Product Description ......................... 6 Overview ..........................6 Key Features ..........................7 Scope Measurement Suite ....................... 7 Target Applications ........................ -
Page 4: Introduction
INTRODUCTION Acronym Definition Bandwidth Non-Return to Zero Device Under Test SONET Synchronous Optical Networking System on a Chip PCIe Peripheral Component Interconnect Express SATA Serial Advanced Technology Attachment PAM4 Pulse Amplitude Modulation 12G Wideband Optical Reference Receiver Simulation Conf Configuration Product Requirements Document HW, FW, SW Hardware, Firmware, Software... -
Page 5: Product Features
Product Features • Noise floor: ➢ 5 µW at 25 GHz bandwidth. ➢ 6-7 µW at 42 GHz bandwidth. • Sensitivity level -11dBm for a 25.78 Gbps NRZ signal. • Up to 50-70 MHz sampling rate. • Supports 802.3 TDECQ measurements via SSPRQ patterns. •... -
Page 6: Product Description
Product Description ▪ Installation explains how to configure and install the instrument as well as how to install the included system software. ▪ Incoming Inspection provides a verification procedure for basic operation and functionality. ▪ Accessories and Options lists the instrument options available along with the standard/optional accessories for this product. -
Page 7: Key Features
Key Features ▪ High-value instrument grade sampling scope optimized for high-speed data analysis. ▪ External reference clock input ▪ Single ended and differential electrical inputs supported. ▪ Eye capture, jitter, rise/fall, histogram, mask measurement, pattern capture, S21 Capture & frequency domain, all in a single instrument. ▪... -
Page 8: Target Applications
Single edge measurement in pattern capture Pre-emphasis (positive and negative, height bandwidth) ▪ Jitter analysis Deterministic jitter. Random jitter. ▪ S-parameters & harmonic distortions Target Applications Figure 1: DSO Application ▪ Interconnect testing (SFP, SFP28, CFP, CFP2, CFP4, QSFP, QSFP28, ...) ▪... -
Page 9: Product Software
Product Software Figure 2: DSO GUI Minimum PC Requirements The Windows PC properties for the MultiLane software must meet the following specifications: ▪ Windows 7 or greater ▪ Minimum 4 GB RAM ▪ 1 Ethernet card to establish connection with the device. -
Page 10: Installation
Installation This section address installation and bring-up of the instrument, addressing the following topics: - System start-up - Connection guide System Start-up To use the DSO under Windows XP, Windows 7 and Vista, it is important that the correct start-up sequence is followed: ▪... -
Page 11: Dso Gui Overview
DSO GUI Overview Figure 3: GUI ▪ Open DSO Gen3 Gui after installation ▪ The “Connect to DSO” window will popup. ▪ Click on the Button if you want to load a simulation. •This window will popup, Navigate and choose the file you want to simulate. -
Page 12: Dso Configuration
DSO Configuration Connection Configuration Change the configuration as needed: ▪ The default display name of the target DSO can be edited as preferred. ▪ The IP of the DSO connected by writing it next to “IP” label. Data Configuration The DSO has 3 SMA inputs (two for the differential data RF Input + and RF Input –, and one for the Clock input). - Page 13 Accumulation works in infinite persistence mode, and unless the points are cleared or the connection is reset, all acquisitions will take part in the accumulated result with equal amounts of points randomly selected from each acquisition. PRBS Pattern Samples Per Symbol ML4015E PRBS7 4095 ML4015E-E PRBS9 1800...
-
Page 14: Dso Menu
DSO Menu Figure 6: DSO menu bar File Menu Save: after clicking on this icon, a save window appears, enabling you to save configurations, data and measurements files for each acquisition. In the case of being connected to multiple DSOs, there are check boxes next to each DSO, check the one related to the needed DSO and save preferences. - Page 15 The version for this software can be found after selecting the “About” under “help” menu option. Zooming can be done by clicking on the graph and dragging, which would draw a dotted window. When the mouse is released, the graph will zoom to display only the content within the drawn box.
- Page 16 Copy, Save, Undo Zoom and Print a Graph Right clicking the graph exposes these features: Copy: copy the present graph as an image into clipboard. Save Image As: save the present graph in the desired location. Page Setup: view page information for printing. Print: print the graph.
- Page 17 Eye Measurement Mode Regardless of hardware or simulation mode, it is possible to draw the eye and capture measurements after filling the configuration window and connecting to the instrument. In Eye Mode, in order to draw the eye diagram, click on the Start Data Acquisition button Check the Check All button to view all the eye measurements down the screen for one time or select the needed measurement only by pressing on the desired icons.
-
Page 18: Status Bar
Status Bar Number of Samples The status bar displays the number of kilo-samples captured in the Eye mode. ‘1K Samples’ is equivalent to 1000 sample points in the Eye graph, including accumulated point when applicable. Operation Status Operation Status Status Description Gathering Data Acquiring data (reading from hardware) Saving Data... -
Page 19: Oscilloscope Measurements
Oscilloscope Measurements While capturing the eye, a user can perform measurements by simply clicking the corresponding buttons: Top, Base, Min, Max, Fall time, Rise time, Peak to Peak, Eye Amplitude, Eye Height, Eye Width, Jitter, and the crossing percentage. The Check All text box can be selected to capture all the measurements in one action. - Page 20 Measurements Measurement Screenshot Description One and Zero The average y-values at 20% around center of Levels the eye The minimum sample value. The maximum sample value. The difference between the max and the min eye sample values, here max is the value of the Peak to Peak sample point with the highest amplitude and min is the value of the sample point with the...
- Page 21 Measurement Screenshot Description Eye Height is the vertical opening of the eye measured as the difference between the -3 Eye Height sigma value of the high samples within the NRZ window and the +3 sigma values of the low samples within the NRZ window. The time between the latest possible occurrences of one eye crossing to the Eye Width...
- Page 22 Pattern Capture mode enables the raw bit sequence captured by the DSO to be captured. In order to see the behavior of a specified sequence of bits, zoom in and out by scrolling the mouse wheel, or using the Pattern Capture cursor to specify the region to be zoomed in Mode upon.
- Page 23 This library is a consolidation of all vertical noise measurements including rms and Noise deterministic noise. For an optical DUT signal this will be depicted in Watts. The signal to noise is a ratio of the signal difference between one level and zero level relative to the noise present at both levels.
- Page 24 Signal-to-Noise Distortion Ratio in dB. SNDR is defined by: �� ������ 2 10 × log ) where �� + �� �� �� SNDR maximum value of P(k) which is the linear fit pulse response, �� is the standard deviation �� of the error e(k) and ��...
-
Page 26: Filters
Multiple Measurements The multiple measurements give the user the ability to view the different measurements: Top, Base, Min, Max, Fall/ Rise time, Peak to Peak, Eye Amplitude, Eye Height, Eye Width, Jitter, and the crossing percentage for a number of measurements specified in the repetitive box or for an undetermined number. - Page 27 Figure 10: PAM4 pattern mode Current List of Supported Filters: Moving Average Filter for signal smoothing: User can specify window size. Order Bessel Thomson filter at frequency equal to 0.75 of the bit rate (order and cutoff are configurable). CTLE filter: User can automatically or manually select the filter parameters. Adaptive CTLE can determine the CTLE for best Eye Height.
- Page 28 Filter Configuration Parameters follow: FFE: 1. The tap delay is expressed as an integer fraction of the bit period. 2. Select the number of taps. 3. Tap coefficients: enter the different tap coefficients separated by commas, from tap 0 to tap N. 4.
- Page 29 3. Add FFE 5 taps Right click SRC Add FFE 5 taps Optimize Generate 4. Press on TDECQ...
