AT4039EML
|User Manual

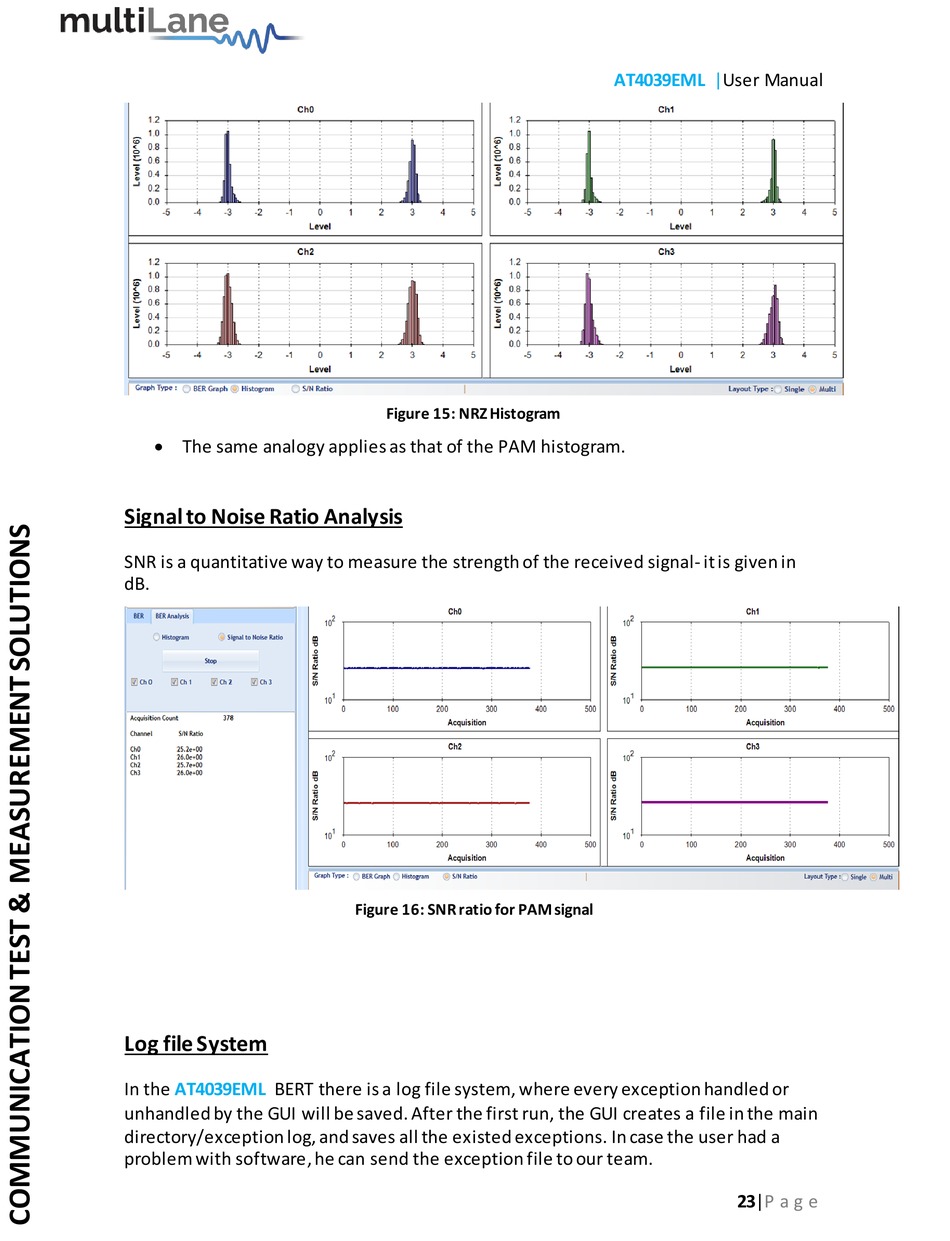

Figure 15: NRZ Histogram
The same analogy applies as that of the PAM histogram.
Signal to Noise Ratio Analysis
SNR is a quantitative way to measure the strength of the received signal- it is given in
dB.
Figure 16: SNR ratio for PAM signal
Log file System
In the
AT4039EML
BERT there is a log file system, where every exception handled or
unhandled by the GUI will be saved. After the first run, the GUI creates a file in the main
directory/exception log, and saves all the existed exceptions. In case the user had a
problem with software, he can send the exception file to our team.
23|P a g e
