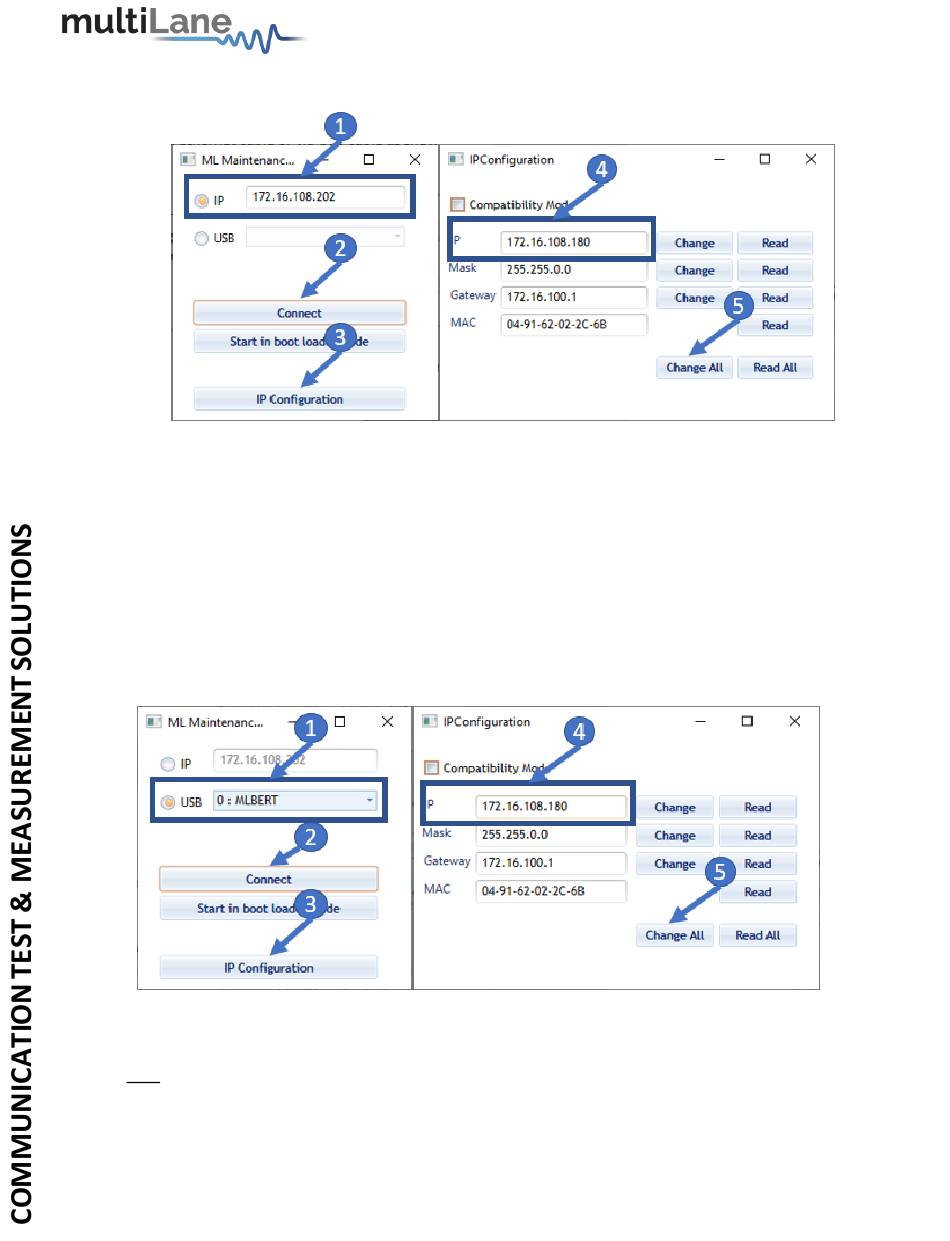

Figure 17: IP Address Changing Using Ethernet Cable

Using USB cable:

1- Download the ML Maintenance Application from the ML website
2- Make sure the USB driver of the instrument is installed. If successfully installed, a
USB instance will appear in the ML Maintenance next to the USB radio button
selection
3- Connect to your instrument using the USB option
4- Click on "IP Configuration" to substitute the old IP with the new desired one
5- Power cycle the instrument
N.B: Please make sure you print a label with the newly assigned IP address and stick it on
the instrument. If for some reason you cannot remember what IP address your
instrument has, you will have to use the USB interface together with the "ML
Maintenance" software to "read" the IP.
Figure 18: IP Address Changing Using USB Cable
