AT4039EML
|User Manual

BER Control

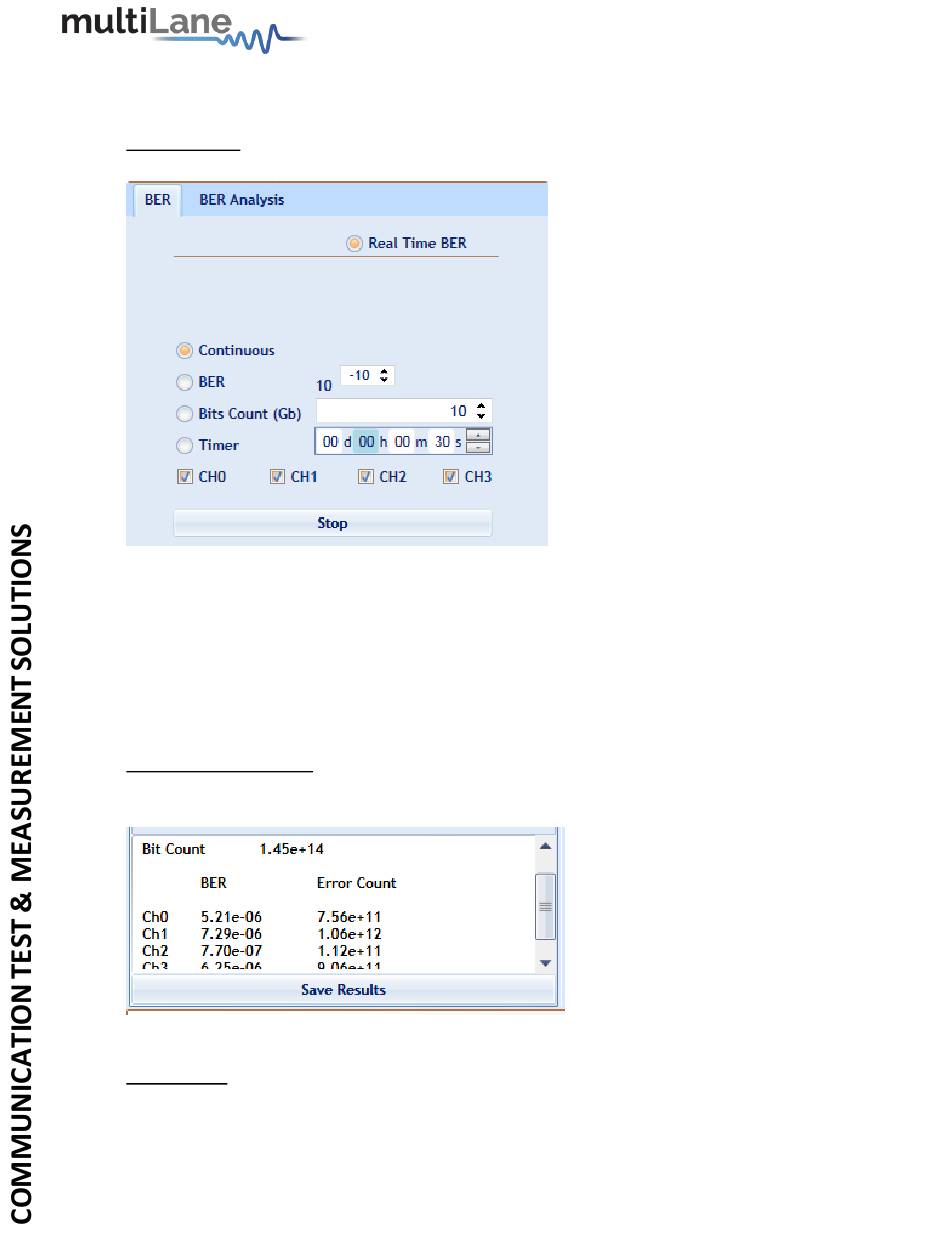

Figure 12: BER Control panel
A BER measurement can run in continuous mode, and will not stop until the user
intervenes and clicks the stop button. BER can also be set to run unit a target value is
reached or until a certain number of bits has been transmitted (units of 10 gigabits). The
Timer lets the user set a time for the BER to stop.

BER Tabe of Results

The summary of BER measurements is shown in the following pane:

BER Graph

Plots BER values collected on the graph
21|P a g e
