Summary of Contents for NXP Semiconductors MPC5775E-EVB

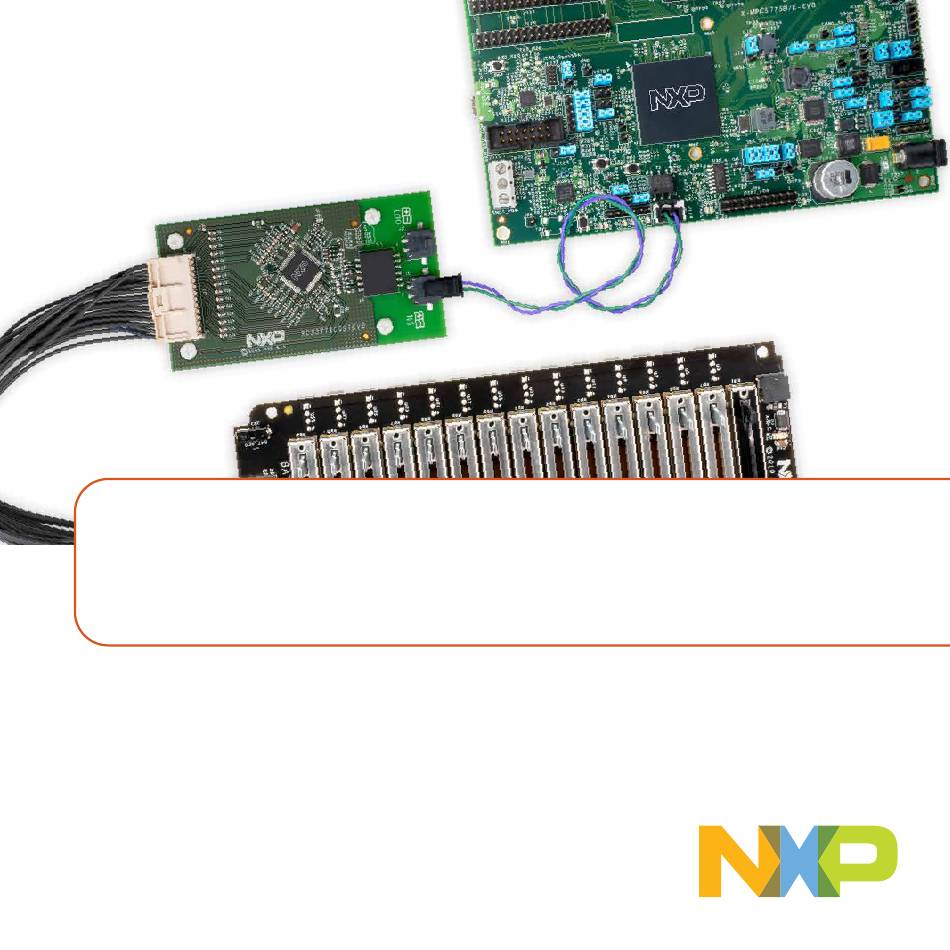

- Page 1 Quick Start Guide MPC5775E-EVB and MPC5775B-EVB NXP evaluation boards for inverter and battery management applications.
- Page 2 Quick Start Guide GET TO KNOW THE MPC5775E-EVB BOARD Motor Motor Control Edge Control Edge Connector Connector eTPU/IO eTPU/IO Analog Analog eMIOS/IO eMIOS/IO Inputs Inputs Power LED Power LED SDA Boot SDA Boot OpenSDA OpenSDA UART UART JTAG JTAG Ethernet...
- Page 3 www.nxp.com GET TO KNOW THE MPC5775B-EVB BOARD Motor Motor Control Edge Control Edge Connector Connector eTPU/IO eTPU/IO Analog Analog eMIOS/IO eMIOS/IO Inputs Inputs Power LED Power LED SDA Boot SDA Boot OpenSDA OpenSDA UART UART JTAG JTAG Ethernet Ethernet 12 V 12 V Power In Power In...
- Page 4 Quick Start Guide FEATURES OF THE MPC5775E-EVB AND MPC5775B-EVB BOARDS • SPC5775B (MPC5775B-EVB) or • Debug selectable between external SPC5775E (MPC5775E-EVB) silicon debug connection via JTAG or onboard OpenSDA (JTAG to USB • Requires 12 V external DC power interface) supply (included in kit) •...
- Page 5 HARDWARE INCLUDED IN THE PACKAGE 1. One MPC5775E-EVB or MPC5775B-EVB 2. One 12 V Power supply 3. One micro USB cable 4. Standoffs...
- Page 6 “Jump Start Go to the Device Manager and right- Your Design” at click the COM port detected and select nxp.com/MPC5775E-EVB Update Driver Software. Select Browse nxp.com/MPC5775B-EVB My Computer for driver software and select the OpenSDA driver that has been downloaded.
-
Page 7: Power Supply
www.nxp.com STEP-BY-STEP INSTRUCTIONS CONTINUED Connect the Reset the Power Supply Board Connect power supply to power socket After resetting the board by pressing the and micro USB cable to micro USB port Reset button (SW1), user will be able to on the development board. - Page 8 Quick Start Guide SOFTWARE AND TOOL SUPPORT Software tools available: • S32 Design studio for PowerPC from NXP – Download and install the NXP S32 Design Studio IDE – Built-in example codes available for many NXP power architecture products Debug tools available: •...
- Page 9 www.nxp.com HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM Board configuration for the project Connect J125-pin 2 to user LED header JP6-pin 2 with jumper wire. LED header JP6 DESCRIPTION LED D20 LED D21 LED D22 LED D23...
- Page 10 Quick Start Guide HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM CONTINUED 1. Run Design Studio for Power Architecture ® 2. Make or select a workspace then Click “OK”. 3. Start a “New” -> “S32DS Project from Example” from the File menu.
- Page 11 www.nxp.com HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM CONTINUED 4. Scroll down to the “SDK PARTM v3.0.0 Example Projects,” select “MPC5777C” and then select “Hello_world_mpc5777c“. Then click “Finish.”...
- Page 12 Quick Start Guide HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM CONTINUED 5. Click on the “Generate Processor Expert Code” icon.
- Page 13 www.nxp.com HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM CONTINUED 6. Click on “Run -> Debug Configuration…” 7. Select “Debugger” tab 8. Select the “OpenSDA Embedded Debug – USB Port” interface...
- Page 14 Quick Start Guide HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM CONTINUED After selecting the “OpenSDA Embedded Debug” interface, if the EVB is connected to the computer, the “Port“ should automatically be selected. 9. Click “Apply.” 10. Click “Debug.” 11. Click “Yes.”...
- Page 15 www.nxp.com HOW TO RUN YOUR FIRST HELLO WORLD PROGRAM CONTINUED 12. Finally, click the “Resume” icon as shown below. Then user able to observe the blinking LED D20. 13. Click “Terminate” icon to terminate the program execution. 14. Click “C/C++” prospective view to back to program window.
- Page 16 APPLICATION-SPECIFIC CONNECTIONS • MPC5775B-EVB: Targeted for the Battery management system application evaluation • MPC5775E-EVB: Targeted for the Inverter application evaluation • Refer to the AN12875 application note for detailed information on the MPC5775B- EVB and MPC5775E-EVB boards APPLICATION SPECIFIC ITEM...
- Page 17 DESCRIPTION LOCATION MPC5775E RM MPC5775E/MPC5775B Reference Manual NXP website MPC5775E DS MPC5775E/MPC5775B Data Sheet NXP website Getting Started with MPC5775E-EVB and MPC5775B- AN12875 NXP website OpenSDA OpenSDA User’s Guide NXP website S32 Design Studio for Power Architecture v2.1 - S32DS...
-
Page 18: Warranty
Visit www.nxp.com/support for a list of phone numbers within your region. Download installation software and documentation WARRANTY under “Jump Start Your Design” at Visit www.nxp.com/warranty nxp.com/MPC5775E-EVB complete warranty information. nxp.com/MPC5775B-EVB AUTOMOTIVE COMMUNITY Visit https://community.nxp.com/ community/s32 PRODUCT COMMUNITY Visit https://community.nxp.com/ community/s32/MPC5xxx nxp.com/MPC5775E-EVB...
