- Page 1 Quick Start Guide Part Number Here MPC-LS-VNP-EVB An advanced automotive gateway solution using NXP's MPC5748G gateway microcontroller and LS1043A communications processor SoCs MPC-LS-VNP-EVB...
- Page 2 GET TO KNOW THE MPC-LS-VNP-EVB CAN 6x2 LIN x 4 TJA1048 TJA1044 x 2 MPC2542 x 2 FlexRay x 2 MPC-LS Power Processor Supply Module PCIe x 16 RGMII_C Connector RGMII_C RGMII ENET RGMII_B SEGMII ENET MII ENET Figure 1: Front side of MPC-LS-VNP-EVB...
- Page 3 Quick Start Guide MPC-LS PROCESSOR MODULE Power Socket MPC5748G Reset LS JTAG MPC5748G Reset MPC5748G SJA1105S Micro SD Card Slot Ethernet Port PPC JTAG Micro USB Port Figure 1: Front side of MPC-LS-VNP-MOD...

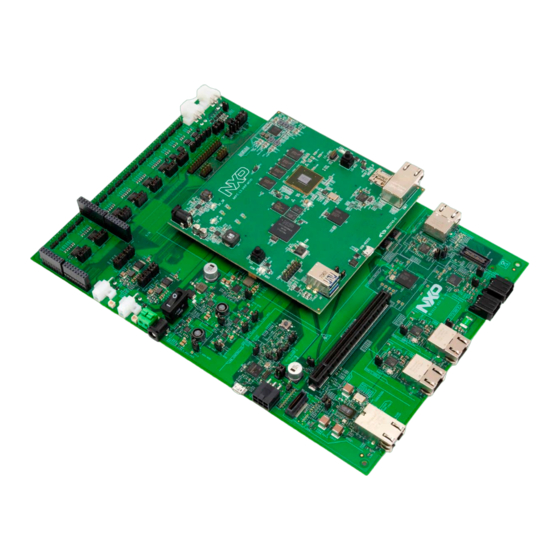

- Page 4 MPC-LS-VNP-EVB The NXP MPC-LS VNP EVB brings an advanced automotive gateway solution using NXP's MPC5748G gateway microcontroller and LS1043A communications processor SoCs. The combination of a real-time microcontroller with microprocessor application pro- cessing enables new gateway use cases and Service-oriented Gate-ways. The complete MPC-LS VNP EVB solution consists of two boards - a Processor Module and a Platform Board with a wide array of automotive interfaces.
- Page 5 Quick Start Guide MPC-LS-VNP-EVB FEATURES Hardware LS1043A Layerscape Microprocessor MPC5748G Automotive Microcontroller • (4x) Arm® Cortex-A53 64-bit processors • MPC-LS-VNP-EVBAEC-Q100, Grade 2 – Up to 1.6 GHz • ISO 26262 ASIL B Functional Safety • Gigabit Ethernet Packet Forwarding •...
-
Page 6: Connect The Power Supply
www.nxp.com STEP-BY-STEP INSTRUCTIONS Connect the Power Setup Tera Term Supply Console Connect power supply to power Open Tera Term on Windows PC. socket and micro USB cable to micro Select the serial port to which the USB port on the MPC-LS Processor micro USB of the MPC-LS Processor Module. -
Page 7: Default Jumper Settings
Quick Start Guide DEFAULT JUMPER SETTINGS Jumper Option Setting Description LS1043A console UART to USB Rx UART to LS1043A console USB Tx Lorem Ipsum Ut a conectem rum utem enis sunt volorib eatemoluptat Dolor... - Page 8 MPC-LS-VNP-EVB Block Diagram...
-
Page 9: Warranty
SUPPORT Get Started Visit www.nxp.com/support for a list of phonenumbers within your region. Download installation software and documentation under WARRANTY “Jump Start Your Design” Visit www.nxp.com/warranty for complete nxp.com/XXXXXXXXX. warranty information. www.nxp.com NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
