- Page 1 ELC-COPBDP Effective December 2010 Users Manual...
-
Page 3: Table Of Contents
Java® is the registered trade mark or trade mark of Sun Microsystems, Inc. in the United States or other countries. The companies and products mentioned in this operation manual can be the trade mark possessed by the owner of that trade mark right. MN05006003E For more Information visit: www.eaton.com... -
Page 4: Introduction
The Profibus system contains 3 types of protocols depending on different application demands: Profibus-DP, Profibus-PA and Profibus-FMS. The ELC-COPBDP provides the ability for an ELC processor to exchange data on a Profibus-DP network. The ELC-COPBDP acts as a Profibus-DP slave to a Profibus-DP master... -
Page 5: Product Profile And Outline
European community EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC Product Profile and Outline P OW ER NE T 1. Power LED 2. Net LED 3. Extension port 4. Address switch 5. Profibus connector Dimension 63.4 25.2 Unit: mm MN05006003E For more Information visit: www.eaton.com... -
Page 6: Installation And Wiring

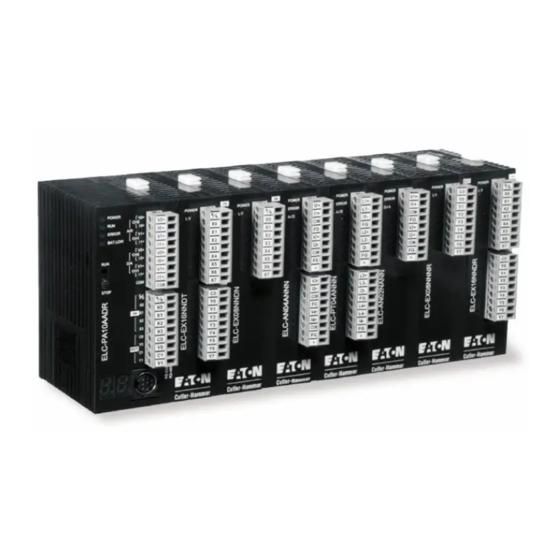

Installing the ELC-COPBDP with the ELC controller Open the extension cover with a screwdriver. Use a screwdriver to lift and unfasten the extension clips. Connect the ELC-COPBDP to the extension port of the ELC controller and fasten the extension clips. POWER... - Page 7 ELC-COPBDP Plug the PROFIBUS connector into the socket of the ELC-COPBDP, and tighten the screw to secure the connector. Limitation of Cable length vs. Baudrate The Maximum cable length in a segment depends on the transmission speed. PROFIBUS-DP communicates at speeds from 9.6kbps to 12Mbps over distances from 100 to 1,200 meters.
-
Page 8: Application Description
RED when node address is at 0, 0x7E to 0xFF 0x7E~ 0xFF. Application Description Connecting the ELC-COPBDP to the Profibus-DP network The ELC-COPBDP connects as a slave node on a Profibus-DP network: PC with master card Profibus network ELC-PS01 ELC-PC12NNDR... - Page 9 This data is automatically placed in the input points (X) assigned to the extension unit. For example if the ELC-COPBDP is the first extension unit, the 4 bytes of output data is placed in X20-X57 of the ELC controller.
- Page 10 ELC-COPBDP MEMO For more Information visit: www.eaton.com MN05006003E...
