Eaton ELC-COENETM Instruction Sheet

Ethernet communication module
Hide thumbs Also See for ELC-COENETM:

Advertisement

Quick Links

ELC-COENETM
Ethernet Communication Module
This instruction sheet only provides introductory information on electrical specification, general
specifications, installation, basic operation and settings of ELC-COENETM. For more detailed
information on the network protocols, please refer to relevant references or literatures.
This is an OPEN TYPE Controller. The ELC should be kept in an enclosure away from airborne
dust, humidity, electric shock risk and v bration. Also, it is equipped with protective methods
such as some special tools or keys to open the enclosure, so as to avoid the hazard to users
and the damage to the ELC. DO NOT touch terminals when power on.
Please read this instruction sheet carefully before use and follow this instruction to operate the
device in order to prevent damages on the product or injuries to staff.
Use cooper conductors only and the temperature is 60/70°C. Ambient temperature is 55°C.
Power, input and output (I/O) wiring must be in accordance with Class , Division 2 wiring
methods – Article 501-10(B)(1) of the National Electrical Code.
Suitable for use in Class , Division 2, Groups A, B, C, D or non-hazardous locations only.
Explosion hazard – Substitution of components may impair suitability for Class , Division 2.
Explosion hazard - DO NOT disconnect equipment unless power has been switched off or the
area is known to be non hazardous.
1
1.1 Model Explanation & Peripherals
Thank you for choosing Eaton Logic Controller (ELC) series products.
Functions:
Supports MODBUS TCP/IP
Supports Master and Slave Data Exchange
ELC-PV28NNDR/T Automatic Time Correction

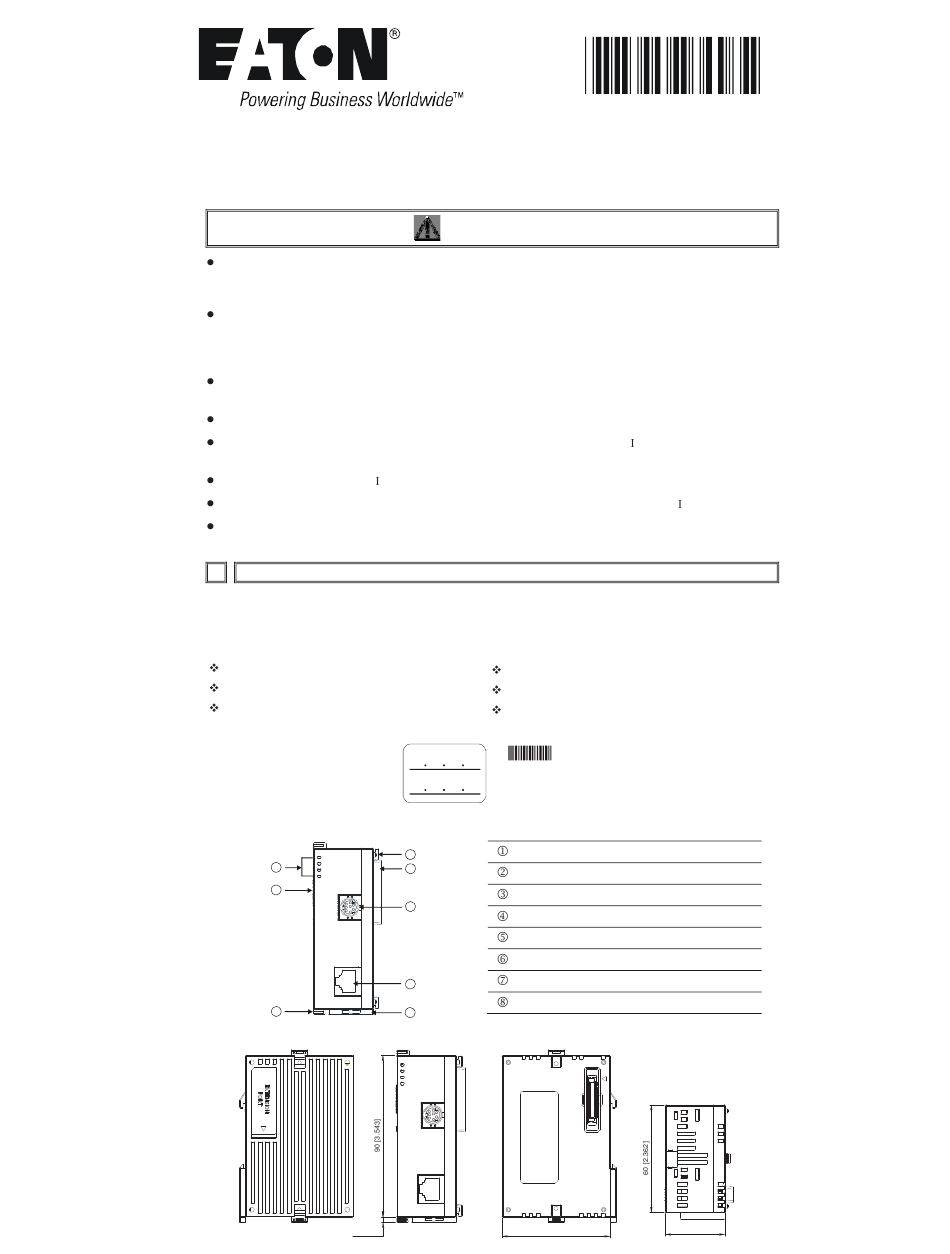

1.2 Product Profile & Outline
OWER
RS-232
3
00M
INK
2
RS-232
AN
4
Product Profile: Unit mm [inchs]
3 [0.118]
Instruction Sheet
WARNING
INTRODUCTION
Supports E-Mail
Supports SNMP V1 and V2
Transmission Speed: 10/100 Mbps
IP Label
MAC Address
IP AD DR ES S
00D0AF 100022
SU BN E T MA SK
Extension Port to connect Device
5
1
Extension Port to connect Extension module
POWER, LINK, RS-232, 100M LED
7
Extension clip
Extension hole for mounting unit or module
DIN rail clip
RS-232 port
8
E hernet RJ-45 port
6
OWER
RS-232
00M
NK
RS-232
AN
60 [2.362]
2011-01-17
5011670306-CEM6
33.1 [1.303]

Advertisement

loading

Summary of Contents for Eaton ELC-COENETM

  • Page 1 WARNING This instruction sheet only provides introductory information on electrical specification, general specifications, installation, basic operation and settings of ELC-COENETM. For more detailed information on the network protocols, please refer to relevant references or literatures. This is an OPEN TYPE Controller. The ELC should be kept in an enclosure away from airborne dust, humidity, electric shock risk and v bration.
  • Page 2 3.1 How to Connect ELC-COENETM with ELC 1. Adjust the extension clip on the left side of the MPU. 2. Meet the extension port of the MPU with ELC-COENETM and connect them as the figure shown below. 3. Fasten the extension clip.
  • Page 3 CR (CONTROL REGISTER) CR No. Type Register Descrip ion Model NO Read only; ELC-COENETM model NO.=H’4050 System firmware version; The type is hex. For Firmware version example, H’0100 means the firmware version is v1.00. Modbus TCP Mode set ing Communication Mode...
  • Page 4 #250 ~ #220 Reserved Reserved #251 Error Code The ELC-COENETM error code #255 ~ #252 Reserved Reserved Symbol defini ion: R: Read, W: Write Read and write CR register 1. ELC uses the FROM/DFROM instruction to read CR data of fast expansion modules.
  • Page 5 1 ~ 16, CR18# b0 ~ b8: Status of Data Exchange Slave 17 ~ 24. 5. CR#28: The Destination Slave ID for Data Exchange. Range: K1 ~ K255. ELC-COENETM will look up the Slave IP address in the Slave ID–IP lists of Data Exchange function. When CR#28 is set to 0, CR#25 and CR#26 will be the Slave IP Address.
  • Page 6 MPU is not powered POWER LED is normal. Not connected to MPU Check if ELC-COENETM is tigh ly connected with MPU. Check if he RJ-45 cable is correctly connected to the Not connected to the network network. LINK LED OFF...
