Eaton ELC-EX08NNSN Instruction Sheet

ELC-EX08NNSN
1
Carefully read this instruction sheet before operating ELC-EX08NNSN.
ELC-EX08NNSN is an OPEN-TYPE. Please place the module in an enclosure away from airborne dust or high
humidity and prevent electric shock or sudden shock on ELC-EX08NNSN. Also, it is equipped with protective
methods such as some special tool or key to open the enclosure, so as to avoid the hazard to users or any damage
to the module. Do NOT touch terminals when power on.
2
1.
Thank you for choosing EATON ELC series products. ELC-EX08NNSN shall be used together with ELC SLIM TYPE
with occupying 8 inputs. I/O can be extended up to 128 points including MPU's. Besides, there are special extension
modules available for up to 8 units connection.
2.
Directly execute instructions by switching X0~X7 without external power supply or external wiring for signal
receiving.
3.
The module can be used as a digital switch by directly inputting instruction without external wiring to receive signal
that ensures much convenience and safety for end user or for academic use.

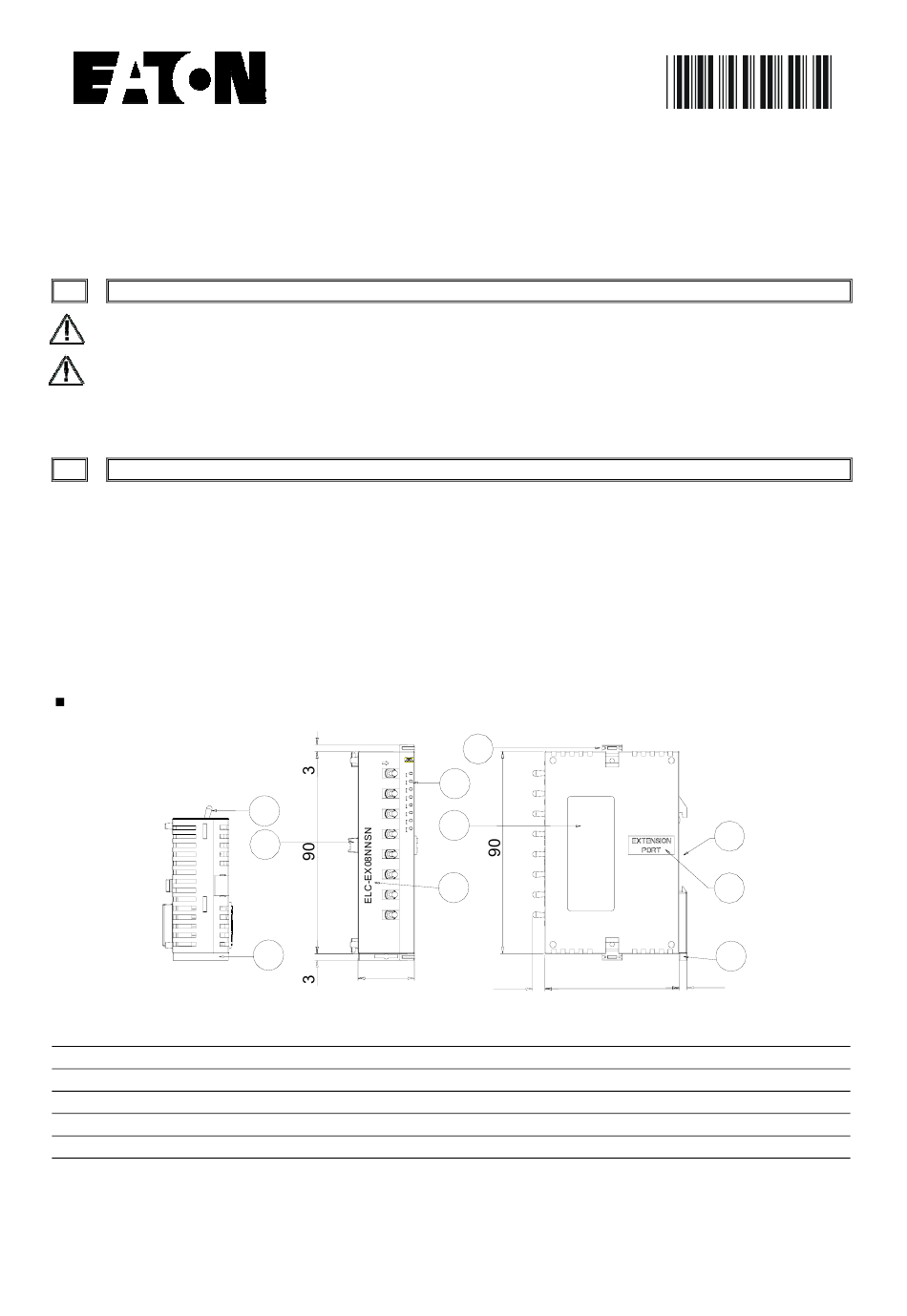

Product Profile:
1. DIN rail (35mm)
2. Extension unit/module connection port
3. Model name
4. LED indicators
5. DIN rail clip
ON
0
X0
X1
1
X2
6
X3
X4
2
X5
X6
9 X7
3
4
5
6
7
5
25.2
Unit: mm
Switch Type of Digital Extension
Module
Instruction Sheet
Warning
Introduction
7
4
8
3
5.5 60
6. Inputs
7. Fixing clip for extension module
8. Nameplate
9. Extension unit/module connector
10. Aiming pinhole for combining with MPU
1
IL05003017E.pdf
2005-11-15
5011640400-SN00
1
2
10
3.4
