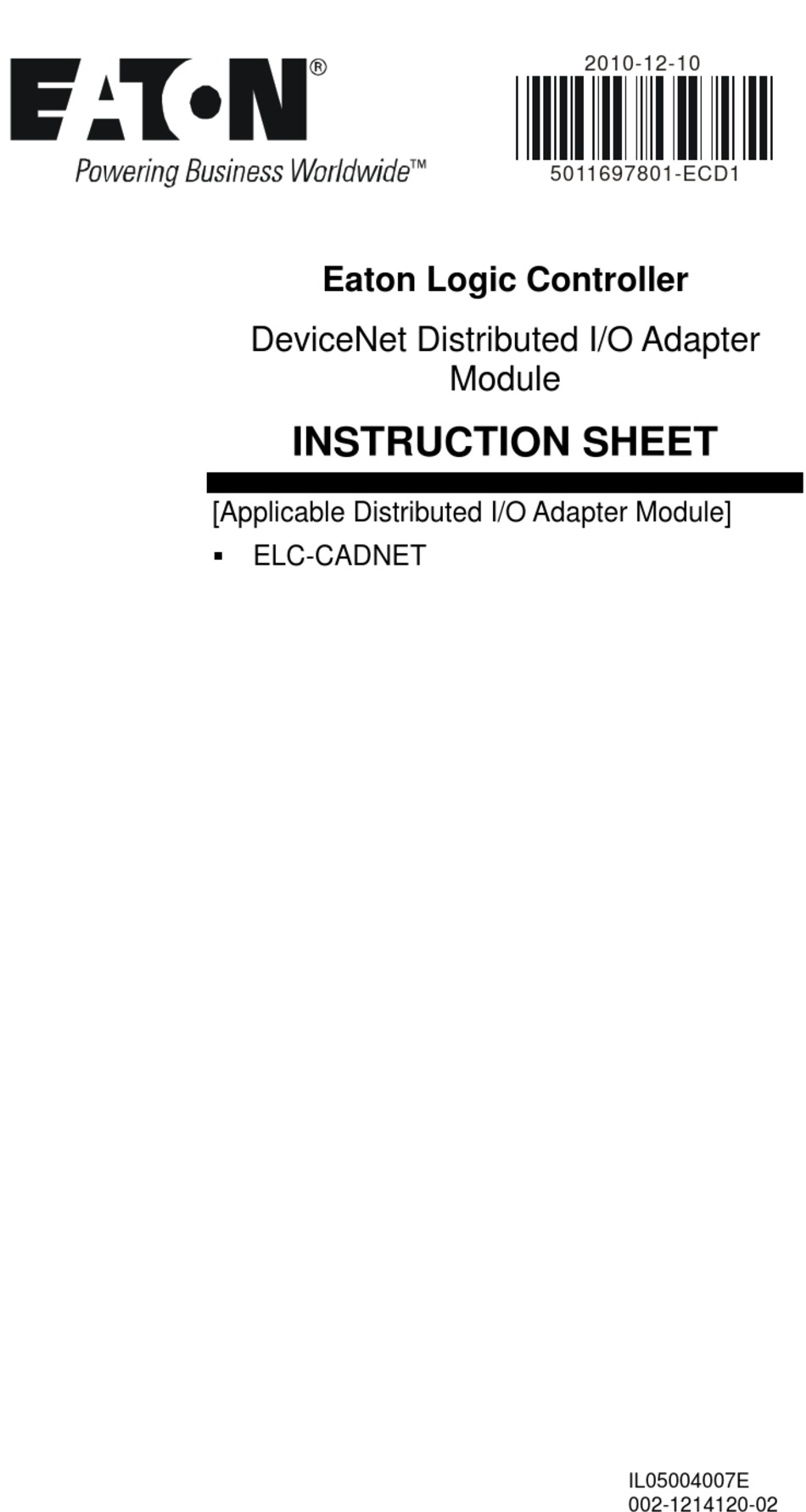

Eaton Logic Controller
DeviceNet Distributed I/O Adapter
INSTRUCTION SHEET
[Applicable Distributed I/O Adapter Module]
 ELC-CADNET
2010-12-10
5011697801-ECD1
Module
IL05004007E
002-1214120-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELC-CADNET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton ELC-CADNET

Summary of Contents for Eaton ELC-CADNET

  • Page 1 2010-12-10 5011697801-ECD1 Eaton Logic Controller DeviceNet Distributed I/O Adapter Module INSTRUCTION SHEET [Applicable Distributed I/O Adapter Module]  ELC-CADNET IL05004007E 002-1214120-02...
  • Page 2 Thank you for choosing the Eaton Logic Controller (ELC) series products. The ELC-CADNET is a distributed I/O adapter that connects ELC I/O modules to DeviceNet networks. The adapter provides I/O and module diagnostic information to DeviceNet scanners.  This instruction sheet provides information on the electrical specifications, functionality, installation and wiring for this module.

  • Page 3: Devicenet Port

    DeviceNet network in decimal format. Valid range: 00 ~ 63 Example: If you need to set the node address of the ELC-CADNET to 26, simply turn switch x10 to 2 and switch of x10 to 6.

  • Page 4: Function Specifications

     Note: 1. Please set up the function setup switches when the power is off. After the setup is completed, re-power ELC-CADNET. 2. When ELC-CADNET is operating, changing the setting of the function setup switch will be invalid.  Function Specifications ...

  • Page 5: Installation

     Installation How to connect extension modules to the ELC-CADNET: 1. Adjust the extension clip on the right side of the ELC-CADNET. 2. Line up the extension port of the ELC-CADNET with extension module and connect them as the figure shown below. Fasten the extension clip.
  • Page 6 When the control and status words of the ELC-CADNET are not included in the I/O data, the I/O data of the ELC-CODNETM (master) and ELC-CADNET (slave) are mapped per the tables below.  ELC-CODNETM Master → ELC-CADNET Slave ELC-CODNETM Digital/Analog Extension Module...
  • Page 7 Module D6044L X0 ~ X7 of ELC-EX16NNDR When the control and status words of the ELC-CADNET are included in the I/O data, the I/O data of the ELC-CODNETM (master) and ELC-CADNET (slave) are mapped per the tables below.  ELC-CODNETM Master → ELC-CADNET Slave...
  • Page 8  NS LED LED Status Indication How to deal with 1. Check the DeviceNet 24vdc power to the ELC-CADNET module. No power/Duplicate ID not 2. Check and make sure there is not a completed. duplicate ID on the network. 3. Make sure one or more nodes are communicating on the network.

  • Page 9: Alarm Led

    Duplicate ID, or Bus-off. same. 4. Check if the node address of ELC-CADNET is a valid address. 5. Check that there is proper network power (24vdc) across the red and black wires.  MS LED...
  • Page 10 LED Status Indication How to deal with 1. Check the power of ELC-CADNET. Error occurred, or low Red light 2. Acquire relevant diagnosis voltage is detected by flashes information from the DNetConfig ELC-CADNET. software. Acquire relevant diagnosis Fatal error occurred due to...
