Important safety instructions:
Please read carefully all instructions before assembly.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
Take out all parts and hardware from box.
Parts List
Description
Item
FRONT LEGS
P1
P2
RIGHT BACK LEG
LEFT BACK LEG
P3
P4
CHAIR
Hardware List
Item
H1
Bolts 5/16"x 2 -1/2"
H2
Lock Washers 5/16"
H3
Flat Washers 5/16"
H4
Alen Wrench
Step 1: Assemble the chair on a flat and soft surface either on a carpet or cloth to prevent the finish from
scratching. To locate the hardware, please turn the chair upside down, you will find the components beneath the
fabric cover that is secured by a Velcro strap underneath the seat cushion. Lift the strap upwards, legs and
hardware box could be located beneath the fabric cover.
ASSEMBLY INSTRUCTIONS
R

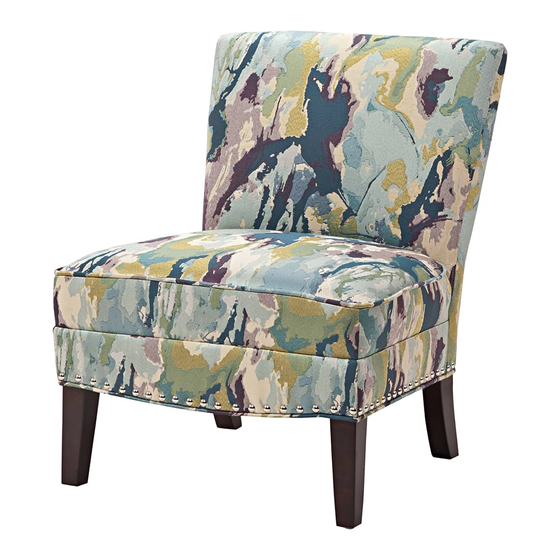

Description: Hayden Slipper Accent Chair
Description
QTY
2
1
1
1
QTY
8
1
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for Madison Park Hayden Slipper Accent Chair
Summary of Contents for Madison Park Hayden Slipper Accent Chair
- Page 1 ASSEMBLY INSTRUCTIONS Description: Hayden Slipper Accent Chair Important safety instructions: Please read carefully all instructions before assembly. For your safety and ease, assembly by two or more adults is recommended. Keep instructions for future use. Pre-assembly: Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
- Page 2 Step 2: Attach the Legs (P1), (P2), (P3) to the Chair (P4) as shown below. (H2)x8 (H3)x8 (H4)x1 H1 H2 Bottom Covering Step 3: Tighten cover sheet by stick two velcro Step 4: Turn the chair over and place it upright on a lines together level surface.
