jotron Tron 60S User Manual

Float-free and manual bracket emergency position indicating radio beacons (epirb)
Hide thumbs Also See for Tron 60S:
Table of Contents

Advertisement

Quick Links

Tron 60S/GPS EPIRB
Float-free and manual bracket
User manual

Advertisement

Table of Contents
loading

Related Manuals for jotron Tron 60S

Summary of Contents for jotron Tron 60S

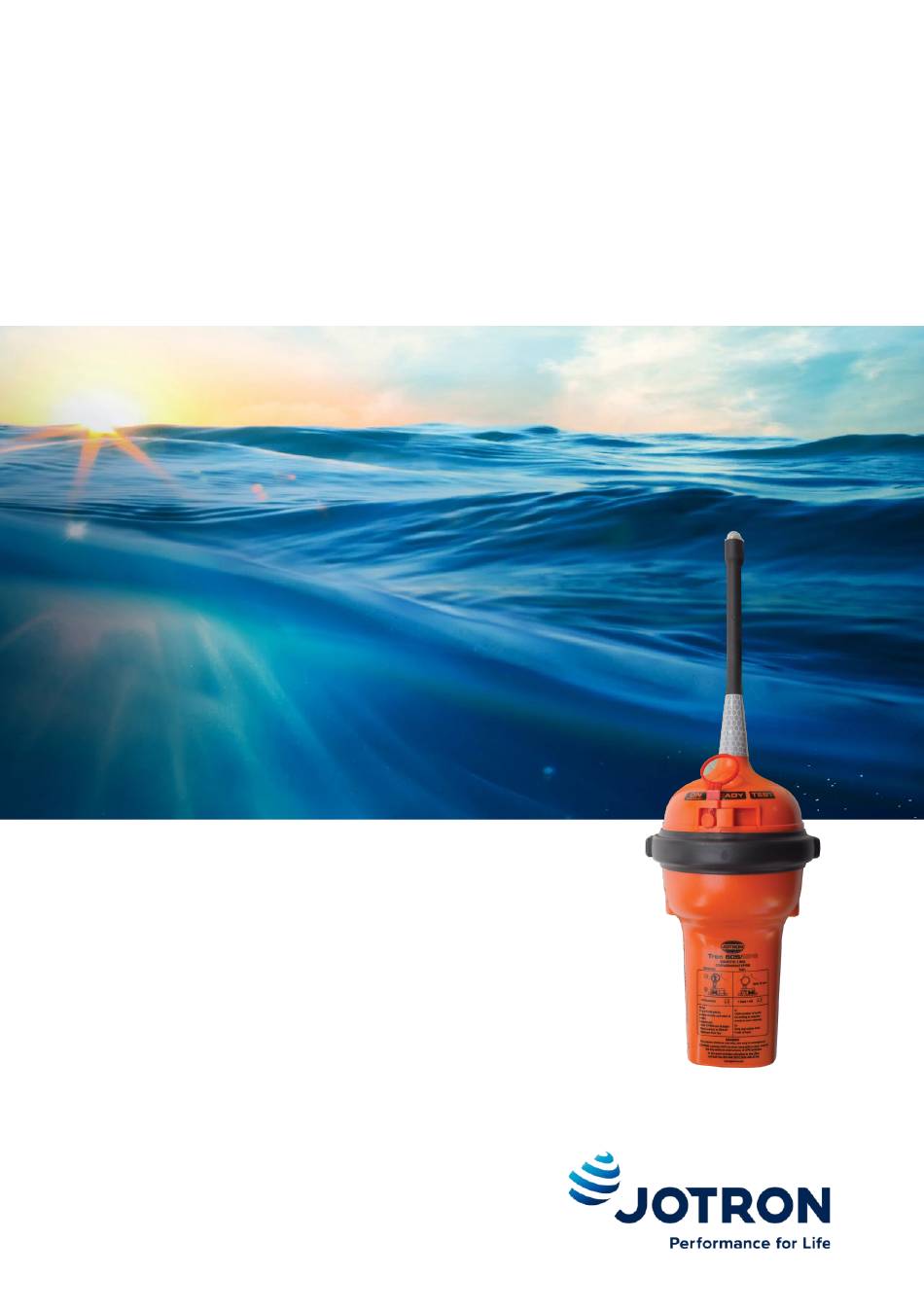

  • Page 1 Tron 60S/GPS EPIRB Float-free and manual bracket User manual...
  • Page 3 National Oceanic and Atmospheric Administration (USA) Rescue Coordination Centre Search and Rescue forces SARSAT Search and Rescue Satellite Aided Tracking System Shore Based Maintenance Unique Identifier Number USCG Unite States Coast Guard jotron.com Doc. No.: 85525 Rev. M Page 3 of 48...

  • Page 4: Table Of Contents

    5.2.1.1 Advantages of an included GPS ....15 5.2.2 EPIRB registration ..........16 5.2.3 False alerts transmitted ........17 Functional description ............... 18 Tron 60S/GPS components ..........18 Main module ..............19 Antenna ................19 Battery pack ..............19 Brackets ................19 6.5.1 FB-60 float free bracket ........
  • Page 5 16 Recycling and disposal ............... 44 17 Warranty ..................44 18 Service ..................44 18.1 Service agents ..............45 19 Document revision log ............... 46 20 Emergency instructions ............. 47 jotron.com Doc. No.: 85525 Rev. M Page 5 of 48...

  • Page 6: List Of Figures

    Figure 1 Image - Tron 60S/GPS ..............13 Figure 2 Illustration - signal detection ............15 Figure 3 Illustration - Tron 60S/GPS components ........18 Figure 4 Image - FB-60 float free bracket ............. 20 Figure 5 Image - MB-60 manual bracket ............20 Figure 6 Illustration - FB-60 float free bracket dimensions ......

  • Page 7: List Of Tables

    Table 1 Satellites - LEOSAR & GEOSAR ............16 Table 2 Tron 60S/GPS components .............. 18 Table 3 Tron 60S/GPS maintenance requirements ........32 Table 4 Tron 60S/GPS self-test error codes (flashes) ........35 Table 5 Tron 60GPS GPS test error codes (beeps) ........36 jotron.com Doc.

  • Page 8: General

    General Jotron manufactures safety products designed for the search and rescue of human lives and property. For this product to be effective according to the design parameters, it is imperative that it is handled, maintained, serviced and stowed in accordance with this manual.

  • Page 9: Standards

    Standards Jotron declares that this this product is compliant with IMO and SOLAS regulations and both MED and RoHS directives. A copy of the declaration of conformity can be downloaded from jotron.com. The Tron 60S/GPS has been verified, tested and meets the following product standards: IEC 61097-2 Ed.
  • Page 10 SOLAS Chapter IV reg. 15.9.2 Regarding battery change. This must be and IMO MSC. Circ. 1039 completed at a Jotron SBM authorized location and it must also be approved by the VDR manufacturer. The interval is dependent on the flag-state administration.
  • Page 11 IMO MSC.1/Circ.1222 Regarding an additional yearly testing requirement for the Tron 40VDR float free capsule. IMO COMSAR/Circ. 32 (latest Correct installation and storage of this revision) product. jotron.com Doc. No.: 85525 Rev. M Page 11 of 48...

  • Page 12: Product Description

    Beacons (EPIRB), the only difference between then is that the Tron 60S does not include a GPS. The purpose of the Tron 60S/GPS is to send a primary alarm to the search and rescue authorities. These EPIRB’s send a distress signal when activated, transmitting the ID of the ship.

  • Page 13: Product Image

    Product image Figure 1 Image - Tron 60S/GPS jotron.com Doc. No.: 85525 Rev. M Page 13 of 48...

  • Page 14: Cospas-Sarsat System Description

    Each EPIRB in the system is programmed with its own unique code, therefore, it is vital that the ships data supplied to the dealer upon purchase or when the Tron 60S/GPS was obtained is correct. It is also important that the EPIRB is registered in the database for each country.

  • Page 15: Advantages Of An Included Gps

    This product has been designed to operate with the Cospas-Sarsat system. With the inclusion of a GPS, this EPIRB enhances lifesaving capabilities. The GPS position is updated every 5 minutes. Below is a comparison between Tron 60S and Tron 60GPS depending on the detecting satellite, polar orbiting or geostationary. jotron.com Doc.

  • Page 16: Epirb Registration

    IBRD: www.406registration.com If the country operates a national beacon registry, obtain a point of contact www.cospas-sarsat.org (review C/S S.007 Cospas-Sarsat Handbook of Beacon Regulations). Suggested EPIRB registration links: jotron.com Doc. No.: 85525 Rev. M Page 16 of 48...

  • Page 17: False Alerts Transmitted

    To report a false alarm in the United States, contact the US Coast Guard at 1-855-406-USCG (8724) To report a false alarm outside of the US, contact the national authority where the beacon is registered. jotron.com Doc. No.: 85525 Rev. M Page 17 of 48...

  • Page 18: Functional Description

    Functional description Tron 60S/GPS components An overview of the components. Figure 3 Illustration - Tron 60S/GPS components Item no. Item Top light Antenna Safety ring Main switch Sealing Water detectors Lower housing Table 2 Tron 60S/GPS components jotron.com Doc. No.: 85525 Rev. M...

  • Page 19: Main Module

    (HRU). The HRU releases the Tron 60S/GPS if the bracket is submerged to a depth of 2-4 meters when a ship is sinking. When the Tron 60S/GPS is mounted in the FB-60, it operates as an automatic float free unit.

  • Page 20: Manual Bracket

    EPIRB. For example, to use in the wheelhouse or another protected area. A MB-60 is also used as a shipment bracket when sending replacement units. When the Tron 60S/GPS is mounted in the MB-60 bracket, it operates as a manual unit.

  • Page 21: Installation

    Installation The Tron 60S/GPS must be installed and stored as described in this manual. Do not install the EPIRB near strong magnetic fields, otherwise the EPIRB may be activated. Brackets Brackets should be mounted in a well protect area from environmental conditions such direct water spray, chemicals, oil, exhaust and vibrations.

  • Page 22: Mounting The Mb-60 Manual Bracket

    1. Using 5mm bolts mount the bracket according to the dimensions drawing. The MB-60 can be mounted horizontally or vertically. A vertical position is recommended, however, do what is best for maintenance and operation. jotron.com Doc. No.: 85525 Rev. M Page 22 of 48...

  • Page 23: Replacing The Battery

    The Tron 60S/GPS battery must be changed at Jotron shore based maintenance (SBM) authorized workshop to be GMDSS compliant. If your Tron 60S/GPS is not under any international or national regulations, battery can be change by authorized Jotron representatives/partners/ dealers.

  • Page 24: Manual Operation

    EPIRB from functioning if the ship sinks. 8.1.1 Out of bracket To manually operate the Tron 60S/GPS out of the bracket, do the following: 1. Pull the safety ring holding the main switch. jotron.com Doc. No.: 85525 Rev. M...

  • Page 25: Stored In The Fb-60 Float Free Bracket

    8.1.2 Stored in the FB-60 float free bracket To operate the Tron 60S/GPS stored in the FB-60 bracket, do the following: It is not recommended to operate a Tron 60S/GPS inside a life raft or under a cover or canopy.
  • Page 26 The EPIRB can drop out of the FB-60 bracket when releasing the top cover. 1. Remove the cotter pin from the bracket. 2. Remove the cover. 3. Remove the EPIRB from the bracket. jotron.com Doc. No.: 85525 Rev. M Page 26 of 48...
  • Page 27 4. Pull the safety ring. jotron.com Doc. No.: 85525 Rev. M Page 27 of 48...
  • Page 28 6. Tie the EPIRB lanyard to yourself or the survival craft. To stop transmission, move the main switch to the ready position and secure the safety pin in place. jotron.com Doc. No.: 85525 Rev. M Page 28 of 48...

  • Page 29: Automatic Operation From The Fb-60 Float Free Bracket

    3. Transmission is indicated by the flashing LED light and will continue until the EPIRB is lifted out of the water and dried off. The transmission can also be stopped by placing the EPIRB back into the FB-60 bracket. jotron.com Doc. No.: 85525 Rev. M Page 29 of 48...

  • Page 30: Wrist Strap

    Figure 8 Illustration - automatic operation of a FB-60 float free bracket Wrist strap In an emergency the EPIRB can be carried using a Jotron wrist strap. Use the strap when it is necessary to have both arms free. To use the wrist strap, do the following: 1.

  • Page 31: Maintenance

    (including the plastic bolt, FB-60 only). Mark years the new expiry date on the label. Every 4-5 The battery must be replaced and changed at a Jotron SBM years authorized location (to be GMDSS compliant). Test in accordance jotron.com Doc.

  • Page 32: Inspection

    Inspection The lifetime of any equipment depends on how well you take care of it. Inspect both the Tron 60S/GPS and the bracket for defects. To inspect, do the following: 1. Ensure the bracket cover is not blocked (this hinders the release functionality of the EPIRB).

  • Page 33: Testing

    Testing should be completed within the first 5 mins of an hour as the satellite EPIRB emits a 121,5 MHz signal during testing. To perform a self-test, do the following: 1. Remove the EPIRB from the bracket. jotron.com Doc. No.: 85525 Rev. M Page 33 of 48...

  • Page 34: Error Codes (Flashes)

    9.2.1.1 Error codes (flashes) If the self-test detects an error in the EPIRB module, one or more of the following will occur: Number of Error codes Flashes: Low power on 406 MHz transmitter jotron.com Doc. No.: 85525 Rev. M Page 34 of 48...

  • Page 35: Extended Self-Test (Gps Test) (Only Tron 60Gps)

    PLL on 121.5 MHz transmitter out of lock EPIRB module not programmed or programming not complete Table 4 Tron 60S/GPS self-test error codes (flashes) 9.2.2 Extended self-test (GPS test) (only Tron 60GPS) Upon completion of an extended self-test, a self-test will automatically occur.

  • Page 36: Error Codes (Beeps)

    A replacement HRU must be purchases separately and is supplied in a kit. The HRU kit includes a special bolt and fittings. Only a Jotron approved hydrostatic release unit kit must be used, as it is type approved. The EPIRB can drop out of the FB-60 bracket when releasing the top cover.
  • Page 37 1. Remove the cotter pin from the bracket. 2. Remove the cover. 3. Remove the EPIRB from the bracket. jotron.com Doc. No.: 85525 Rev. M Page 37 of 48...
  • Page 38 4. Press down and hold in place the spring-loaded catapult, then remove the HRU by sliding it out of the locking slot. jotron.com Doc. No.: 85525 Rev. M Page 38 of 48...
  • Page 39 5. While holding the catapult down, slide the new HRU into the locking slot. 6. Place the EPIRB back in the bracket. 7. Close and secure the top cover using the cotter pin. jotron.com Doc. No.: 85525 Rev. M Page 39 of 48...

  • Page 40: Test And Maintenance Records

    Test and maintenance records Below is an overview of all test and control details. Date B/H/T* Signature Inspector name *B=New battery, H=New HRU, T=Test jotron.com Doc. No.: 85525 Rev. M Page 40 of 48...

  • Page 41: Battery Safety Information

    The safety information is available for download at jotron.com - product. http://jotron.com/product/tron-60s-epirb-manual-bracket/. 12.1 Handling and storage This product should be stored in a cool and well-ventilated area. Elevated temperatures can result in a reduction of battery life.

  • Page 42: Technical Specifications

    - product. http://jotron.com/product/tron-60s-epirb-manual- bracket/. Technical specifications 13.1 Product specification Battery type: Lithium iron metal Battery capacity: 12V/2.9Ah Housing material: Glass reinforced polycarbonate Unit dimensions (H/W/D): 340mm x 128mm x 128mm Weight: 700grams Compass safe distance: 0,85meters Temperature operating: -20°C to + 55°C (-4°F to +131°F) Temperature storage: -30°C to + 65°C (-22°F to +149°F)

  • Page 43: Navigation Device (Only Tron 60Gps)

    ASA (acrylonitrile styrene acrylate) Dimensions (H/W/D): 385mm x 151mm x 148mm Weight: 850grams Release mechanism: Jotron HRU Temperature operating: -30°C to + 65°C (-22°F to +149°F) Temperature storage: -30°C to + 65°C (-22°F to +149°F) 13.5.2 MB-60 Manual bracket Materials:...

  • Page 44: Optional Accessories

    Refer to the sales terms and conditions for specific warranty information regarding this product. Service All services such as testing, installation, programming, replacement, marking and battery exchange are provided by an authorized Jotron service agent. Improper service or maintenance may destroy the functionality and/or performance of this product.

  • Page 45: Service Agents

    Jotron does not accept any responsibility for the dismantling or reassembling of any Jotron product that occurs externally from a Jotron authorized facility and/or is handled by someone other than an authorized, trained and certified person. 18.1 Service agents Refer to jotron.com...

  • Page 46: Document Revision Log

    New layout, minor adjustments placard ØB 29.11.2019 on (pp. 26 & 35) 16.12.2021 Updated content, revised text structure in a new documentation design and layout in accordance with new company profile. jotron.com Doc. No.: 85525 Rev. M Page 46 of 48...

  • Page 47: Emergency Instructions

    Emergency instructions This is an overview of how to operate a Tron 60S/GPS during an emergency. Figure 10 Emergency instructions overview jotron.com Doc. No.: 85525 Rev. M Page 47 of 48...
  • Page 48 NORWAY / HEADQUARTERS CHINA Jotron AS Jotron USA, Inc Norway Jotron AS Beijing Ringdalskogen 8 6300 Rothway Street, Suite C Representative Office (ATC business) 3270 Larvik, Norway Houston, TX 77040, USA No. 1204 room, building D Tel: +47 33 13 97 00...
