USER MANUAL
Phontech 6202
www.jotron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phontech 6202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for jotron Phontech 6202

  • Page 1 USER MANUAL Phontech 6202 www.jotron.com...
  • Page 2: Table Of Contents

    Table of contents List of figures Abbreviations General Standards Product description Product image Phontech 6202 Technical specifications Product specification Operation instructions Logging on to the call logging web interface User and PIN page 7.2.1 Users 7.2.2 Pins 7.2.3 Exporting a user or pin list 7.2.4...
  • Page 3: List Of Figures

    List of figures Figure 1 Phontech 6202 - product image Figure 2 Storage unit address location Figure 3 Welcome screen for the call logging web interface Figure 4 User list Figure 5 Pin list Figure 6 Exporting and format options...
  • Page 4: Abbreviations

    Abbreviations Comma separated values Electrostatic discharge HTTP Hypertext Transfer Protocol Integrated circuit (system) Integrated Communications System International Electrotechnical Commission Internet protocol (address) Personal identification numbers Return Material Authorization number Page - 4 -...
  • Page 5: General

    Jotron develops and manufactures professional and state of the art products and communication systems for usage in air, on land and at sea. Jotron supplies products and services that comply with the latest applicable standards. The use of modern test instrumentation and detailed test procedures ensures that you are supplied with quality products.
  • Page 6: Standards

    The software controlling the hardware is also identical, therefore, the same testing performed on the Phontech 6200 applies to the Phontech 6202. The Phontech 6202 conforms with the required test suites included in the following standards: • IEC 60945 Ed. 4 •...
  • Page 7: Product Description

    Product description The Phontech 6202 Billing unit is a supplementary unit to the Phontech 6200 system that allows for call record logging and billing of external and internal calls within the system. It allows logging of calls going to and from all other Phontech 6200 units in the network. Call details such as source, destination and duration are logged with the ability to calculate billing prices based on destination numbers.
  • Page 8: Product Image Phontech 6202

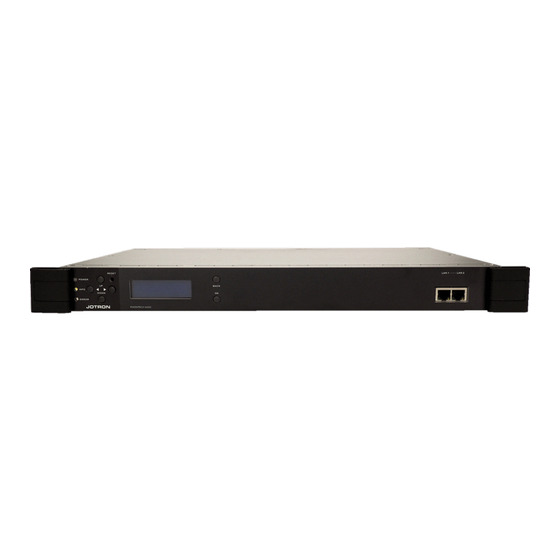

    Product image Phontech 6202 Figure 1 Phontech 6202 - product image Page - 8 -...
  • Page 9: Technical Specifications

    Technical specifications Product specification Supply voltages: Universal AC input (110-230VAC) Maximum power consumption: 65 W System power: 10 W Dimensions (W/H/D): 440mm/44 mm/290mm (The width is 483mm including front mounting brackets) Weight: 3,4 kg Temperature operating: -15 to +55 °C Temperature storage: -15 to +55 °C Humidity:...
  • Page 10: Operation Instructions

    It is also possible to find the billing unit address in the Information menu on the front panel display of the unit. To find the billing unit address in the information menu, do the following: 1. Click any navigation button to clear the Jotron logo. 2. In the information menu item, click Enter. Page - 10 -...
  • Page 11: User And Pin Page

    3. On the Number and IP, click Enter. To access the call logging web interface: 1. Enter the address into your web browser. 2. Enter the configured user name and password. Figure 3 Welcome screen for the call logging web interface 7.2 User and PIN page The User and PIN page displays a list of all the users and personal identification numbers (PIN) in the system.
  • Page 12: Pins

    Figure 4 User list 7.2.2 Pins The second part of the page supplies an overview of all the pins that are configured in the system. All pins are configured in the configuration application. You can navigate through this list by using either the search box or the buttons and page numbers.
  • Page 13: Exporting A User Or Pin List

    Figure 5 Pin list 7.2.3 Exporting a user or pin list A list of current user or pin balances is possible to export. • Click the Users button to export the list of users • Click the Pins button to export the list of pins. You can export a list in any of the following formats, by clicking the corresponding button: •...
  • Page 14: Importing A User Or Pin List

    • comma separated values (CSV) After you select one of the buttons, a download dialog box appears with the selected format. You must then select where you want to save the export. Figure 6 Exporting and format options 7.2.4 Importing a user or pin list To import a user or pin list of balances into the call logging system, do the following:.
  • Page 15: Figure 7 Exporting And Format Options

    After you select the XML button, an open file dialog box appears. You must then select the file you want to import. The format of the file must be XML. The file must have the same structure as an export of the content would be when exporting in the XML format.
  • Page 16: Individual User And Pin

    Individual user and pin pages This section describes the user and pin pages for an individual user and pin. 7.3.1 User page The user page displays a detailed call log and the current balance of a user. The list is sorted by date and shows all calls made by the use.
  • Page 17 Such calls include calls between users inside the system and incoming calls, if enabled through the Phontech 6202 billing unit configuration.
  • Page 18: Pin Page

    7.3.2 Pin page The pin page displays a detailed call log and the current balance of a pin. The list is sorted by date and shows all calls made where the pin selected was used, therefore, the data under the Source column will not always be the same as the pin number, any pin number can be used from multiple phones.
  • Page 19: Reports Page

    Such calls include calls between users inside the system and incoming calls, if enabled through the Phontech 6202 billing unit configuration.
  • Page 20: Figure 10 Reports

    You can navigate through the list using the previous or next buttons. Figure 10 Reports page There are 8 columns in the call log list, they are described as follows: Date/Time: The date and time the call was initiated. Source: The user that initiated the call (always the user you are currently viewing).
  • Page 21: Payment Page

    Such calls include calls between users inside the system and incoming calls, if enabled through the Phontech 6202 billing unit configuration.
  • Page 22 Multiple users and pins can be updated at the same time and in one action by selecting additional users and pins from the list. You can navigate through the list using the previous or next buttons. Use the search fields to filter the lists. If pre-paid billing meters are active on trunk lines the users and/or pins in use must have a positive balance equal to that of the last 1 minute worth before they can be used to access a trunk line.
  • Page 23: Billing Rates Page

    Figure 11 Payment page 7.6 Billing rates page The billing page is where you configure the cost rates for numbers dialed over trunk lines. You can match specific numbers or create a pattern for matching number ranges. This page includes a list of the configured billing rates. You can navigate through this list by using either the search box, buttons or page numbers.
  • Page 24 You can select multiple rates and delete them all as one operation. Any change to a configured rate will not affect calls that are already logged. Only calls made after the rate change will be affected. Page - 24 -...
  • Page 25: Figure 12 Billing Rate

    Figure 12 Billing rate page When a billing rate does not match, a default rate will be used. The default rate is set to 1 credit per minute, however, you can adjust the default rate. To adjust the default rate, do the following: 1.
  • Page 26: Settings Page

    To add a new rate, do the following: 1. Enter the pattern you want under Add billing rate. 2. Enter the rate. This rate represents the cost of a call per minute. To match a single number, enter the number in the pattern field. To match multiple numbers, for example, a prefix or a range of numbers, use the pattern matching approach.
  • Page 27: Figure 13 Settings

    Figure 13 Settings page It is possible to free up storage space by removing older records. To do this, do the following: 1. Specify the date of the records you want to purge under Maintenance. 2. Click the Delete button. All records older than the specified date will be deleted.
  • Page 28 All information visible in the web interface such as billing rates, balances and call records will be deleted when you opt to do a factory reset. Page - 28 -...
  • Page 29: Warranty

    Warranty When purchasing a new Phontech 6202, the warranty period for the is valid for 2 years from the date the product is shipped from Jotron. If you have a Phontech 6202 and are unclear about your warranty period contact Jotron.
  • Page 30: Service

    Jotron plastic cover. 8.2 Service All services such as installation, maintenance or replacement must by done by an authorized Jotron service agent. Improper maintenance may destroy the functionality and/or performance of this product Jotron does not accept any responsibility for the dismantling or reassembling of a Phontech 6202 that occurs externally from a Jotron authorized facility and/or is handled by someone other than an authorized, trained and certified person.
  • Page 31: Recycling And Disposal

    Recycling and disposal The Phontech 6202 is not to be disposed as normal waste and must be handled in accordance with the applicable waste disposal regulations in the country where the equipment is used. Page - 31 -...
  • Page 32 Phontech 6202 - v.A...
