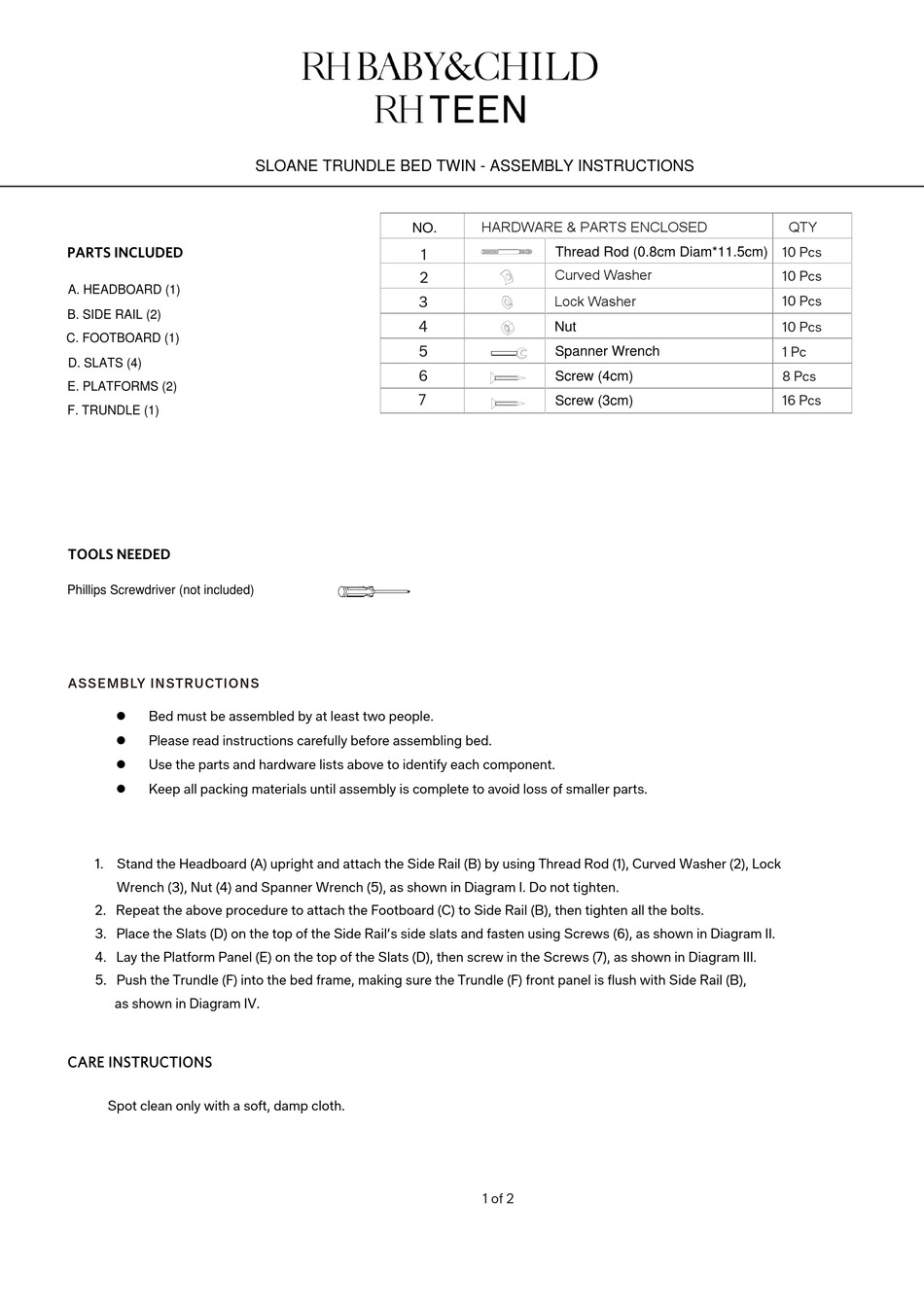

RH Baby&child RH TEEN SLOANE TRUNDLE BED TWIN Assembly Instructions

PARTS INCLUDED

A. HEADBOARD (1)
B. SIDE RAIL (2)
C. FOOTBOARD (1)
D. SLATS (4)
E. PLATFORMS (2)
F. TRUNDLE (1)

TOOLS NEEDED

Phillips Screwdriver (not included)
ASSEM BLY I N ST R U CT IO NS
 Bed must be assembled by at least two people.
 Please read instructions carefully before assembling bed.
 Use the parts and hardware lists above to identify each component.
 Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1. Stand the Headboard (A) upright and attach the Side Rail (B) by using Thread Rod (1), Curved Washer (2), Lock
Wrench (3), Nut (4) and Spanner Wrench (5), as shown in Diagram I. Do not tighten.
2. Repeat the above procedure to attach the Footboard (C) to Side Rail (B), then tighten all the bolts.
3. Place the Slats (D) on the top of the Side Rail' ' ' ' ' s side slats and fasten using Screws (6), as shown in Diagram II.
4. Lay the Platform Panel (E) on the top of the Slats (D), then screw in the Screws (7), as shown in Diagram III.
5. Push the Trundle (F) into the bed frame, making sure the Trundle (F) front panel is flush with Side Rail (B),
as shown in Diagram IV.

CARE INSTRUCTIONS

Spot clean only with a soft, damp cloth.
SLOANE TRUNDLE BED TWIN - ASSEMBLY INSTRUCTIONS
NO.
1
2
3
4
5
6
7
HARDWARE & PARTS ENCLOSED
Thread Rod (0.8cm Diam*11.5cm)
Curved Washer
Lock Washer
Nut
Spanner Wrench
Screw (4cm)
Screw (3cm)
1 of 2
QTY
10 Pcs
10 Pcs
10 Pcs
10 Pcs
1 Pc
8 Pcs
16 Pcs
