MANUAL OVERRIDE OPERATION

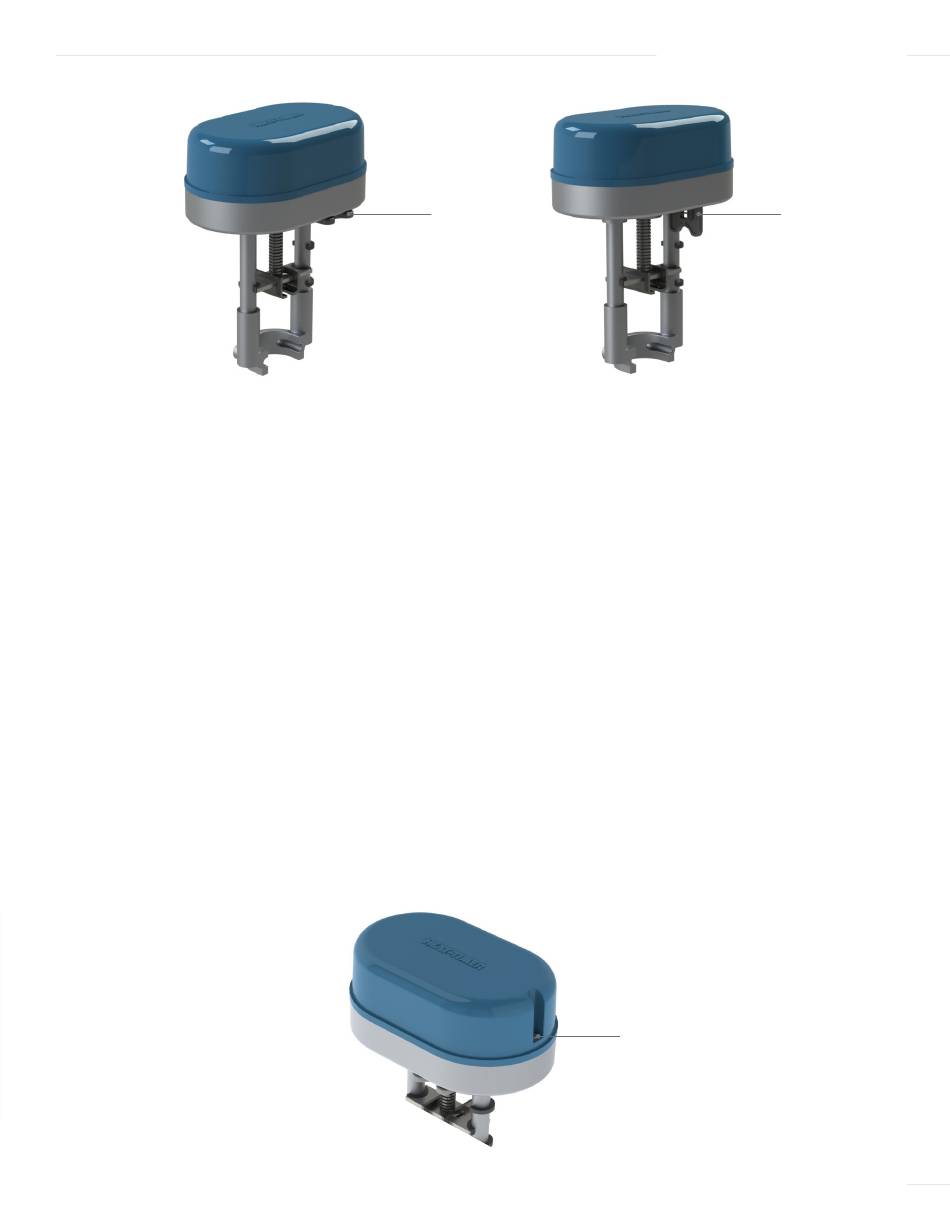

1 The HTC Actuator can be manually position by lowering the Manual tab (1) down.
2
Once the Manual tab is lowered (2), rotate the tab to lower or raise the actuator.
3 Prior to mounting the HTC Actuator, the actuator must be in its lowest position.
4
To return the HTC Actuator back to automatic operation simply return the Manual tab to its upward position.

WIRE TERMINAL ACCESS

To gain access to the HTC Actuator wire terminals, dip switches and on those actuators with a LOP Capacitor the
Capacitor Jumper, the cover must be remove.
1
To remove the actuator cover remove the mounting screw (1) using a Phillips screwdriver.
2 Lift the actuator cover and slide toward the mounting screw direction disengaging the actuator cover clip
from the actuator housing.
3
To mount the cover once the wiring, calibration of the actuator, any dip switch and Capacitor Jumper settings
are completed, slide the actuator cover tab into the actuator. Ensure the actuator cover is seated on the
actuator housing and secure with the mounting screw.
