STARTUP

1
Once all wiring, Dip Switch setting, Capacitor Jumper setting (if applicable) and actuator calibration is complete,
the HTC Actuator is ready to be placed into service.
2
Open all isolation valves on the HOT supply and any other isolation valves on piping to the valve.
3
Replace the top cover to the actuator by inserting the tab into the housing and secure with the mounting screw.
4 Ensure the ETV module or other control panel is reassembled and ready for service.

IP 65 INSULATION KIT

To provide additional protection to the HTC Actuator IP 65, an optional insulation boot (P/N 905045-00) is
available. The insulation kit consist of a 2 part shell that will Velcro together. The insulation kit only covers the
actuator, not the valve body. Insulation of the valve body is done by others.
When assembling the insulation kit around the actuator ensure the water tight conduit is able to exit the insulation.
Ensure the conduit does not interfere with the operation of the actuator as it moves the valve stem up and down.

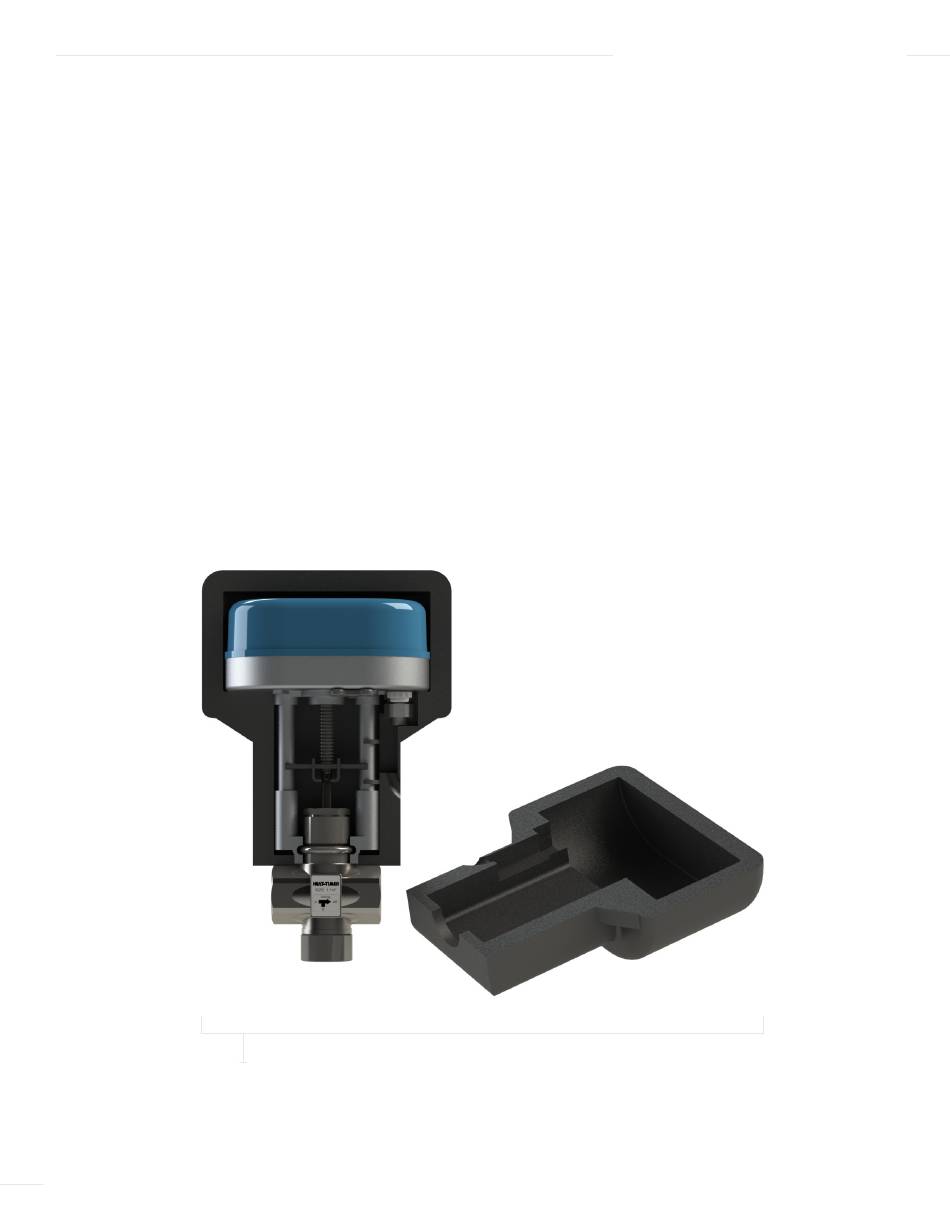

FIGURE 17
ASSEMBLY OF THE IP 65 INSULATION KIT
|
24
