Slide the actuator bracket out the valve groove.
9
To assemble the new HTC Actuator reference the following pages:
•
For bronze valve body reference page 14.
•
For stainless steel valve body reference page 15.
10
For wiring of the new HTC actuator reference page 16.
11
For Dip Switch and Capacitor Jumper (if applicable) settings based on valve configuration reference page 20.
12
For installation completion and calibration of the HTC actuator reference page 23.
MANUAL LEVER
POWER SWITCH
ACTUATOR BRACKET
FIGURE 4

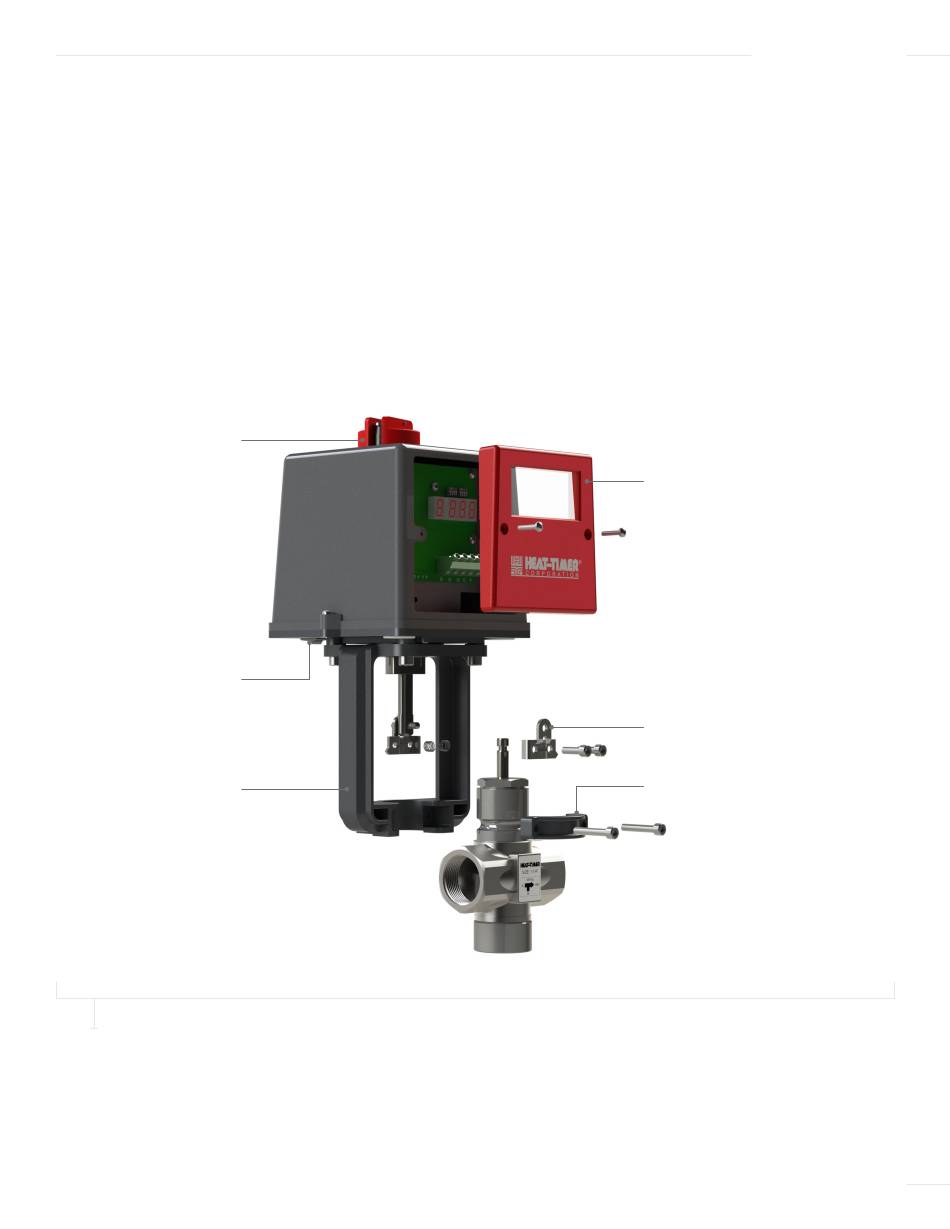

ASSEMBLY OF THE TR1000 ACTUATOR TO A STAINLESS STEEL BODY VALVE
059297-00 REV. H
03
APPLICATIONS
ACTUATOR COVER
ACTUATOR STEM
LOCKING BRACKET
ACTUATOR LOCKING BRACKET
