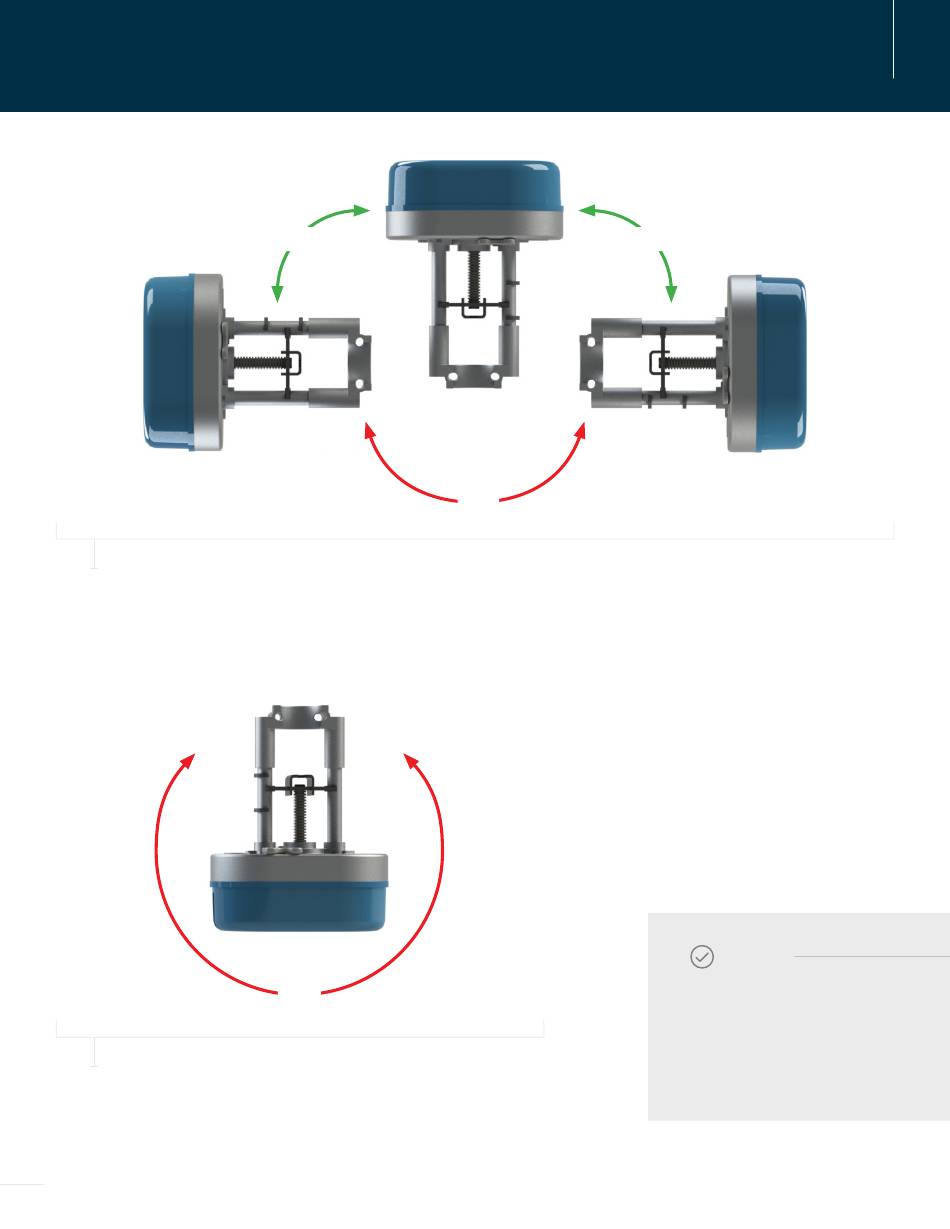

FIGURE 1
ALLOWABLE MOUNTING POSITION FOR THE HTC ACTUATOR STANDARD AND HTC ACTUATOR WITH
LOP CAPACITOR
FIGURE 2
HTC ACTUATOR WITH IP 65 RATING MOUNTING POSITION
|
6
HEAT-TIMER CORP.
02
INSTALLATION GUIDELINES
OK
NO
OK
NO
NOTE
The HTC Actuator with IP 65
Rating can only be mounted
in the vertical position to
avoid potential penetration of
water into the motor circuit.
059297-00 REV. H
