INSTALLATION ON STAINLESS STEEL VALVE BODY

1
Ensure the HTC Actuator is at the lowest position by manual positioning it. See page 7.
2 Ensure the valve stem is at its lowest position by pressing down on the stem.
3
Mount the HTC Actuator onto the valve body making sure the U-channel of the actuator aligns with the valve
stem groove.
4 Insert the U-bolt aligning the valve body groove with the actuator. If needed adjust the position of the
actuator manually.
5 Secure the U-bolt in place with two locking nuts, ensuring the locking nuts are tightened evenly.
NOTE: The actuator may make a grinding noise if the locking nuts are not tightened evenly and
resulting in potential damage to the actuator motor.
6
For wiring of the new HTC actuator in replacement of a M800 or a TR1000 actuator reference page 16.
7 For Dip Switch and Capacitor Jumper (if applicable) settings based on valve configuration reference page 20.
8
For installation completion and calibration of the HTC actuator reference page 23.

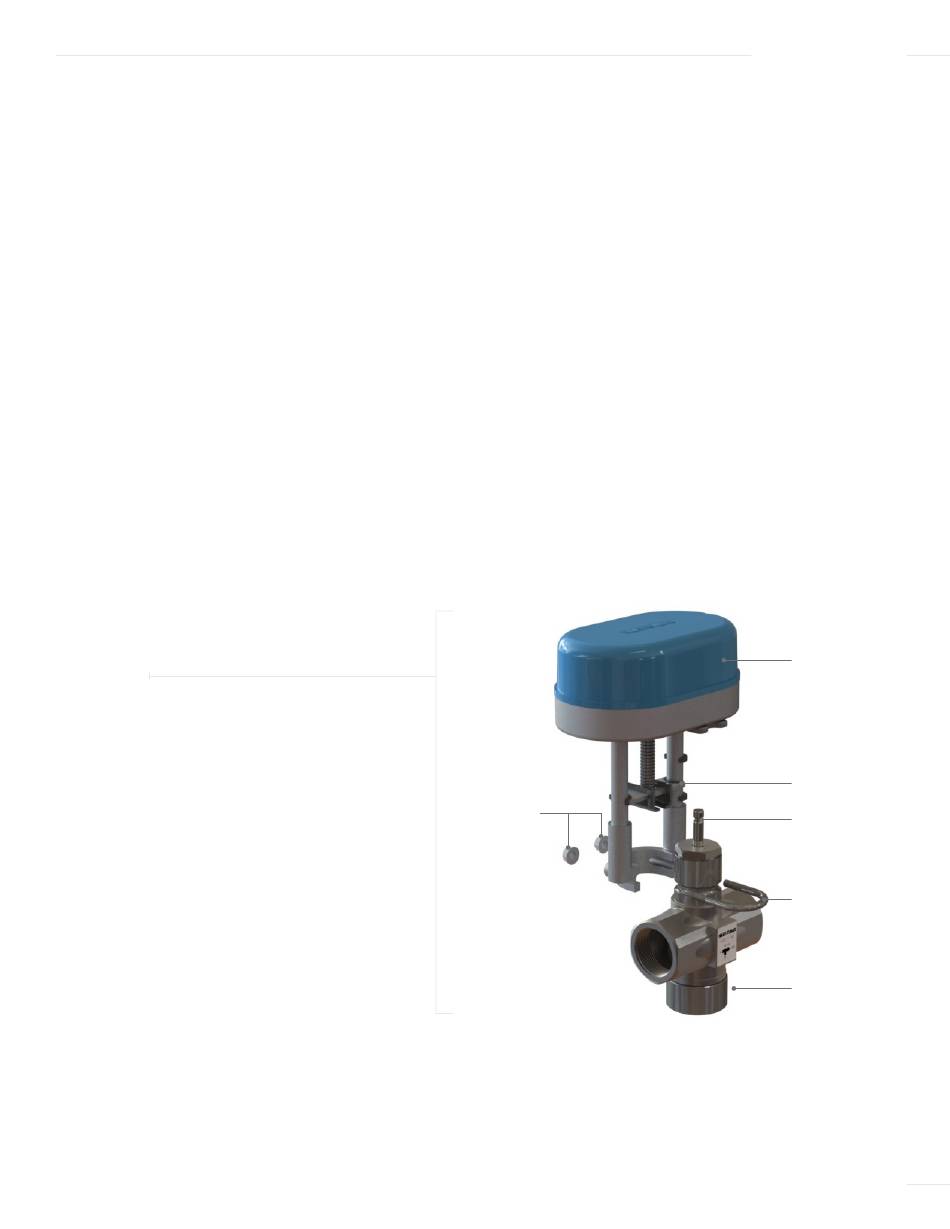

FIGURE 7
ASSEMBLY OF THE HTC ACTUATOR
TO A STAINLESS STEEL BODY VALVE
059297-00 REV. H
LOCKING
NUTS
03 APPLICATIONS
HTC ACTUATOR
U-CHANNEL
VALVE STEM
GROOVE
U-BOLT
STAINLESS
VALVE BODY
|
15
