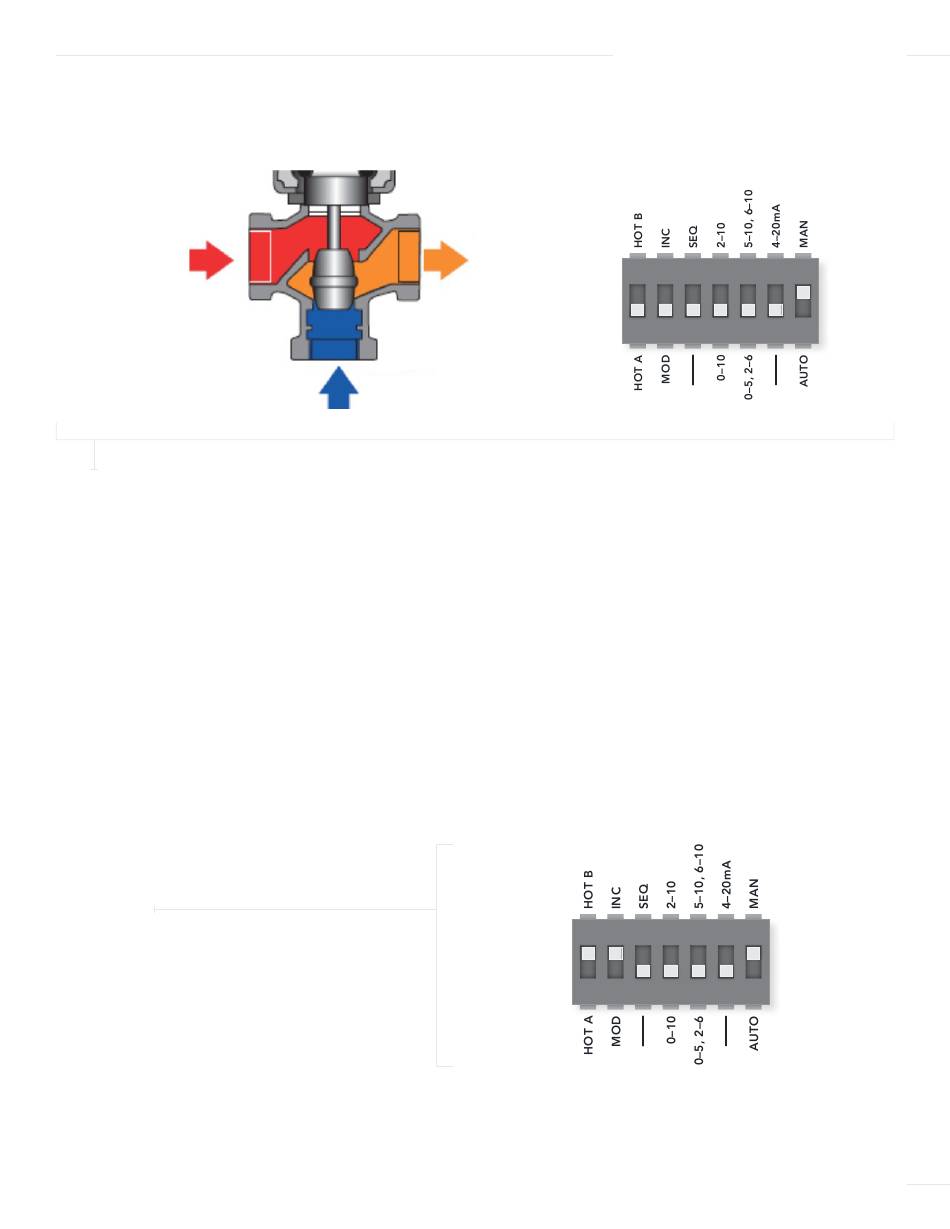

VALVE INSTALLATION—ALTERNATE CONFIGURATION
HOT PORT
A
FIGURE 11
HTC ACTUATOR—IP 65 VERSION WITH LIQUID TIGHT FITTING
When the ETV valve is installed as shown in the Alternate Configuration, the following applies:
1 Dip Switch 1 must be in the OFF position as shown.
2
The Capacitor Jumper (if applicable) must be removed. On loss of power the actuator will pull the valve stem
upward to the full COLD position.
DIP SWITCH SETTING—OPTIONAL SETTINGS
FIGURE 12
DIP SWITCH SETTING FOR A FLOATING
SIGNAL INPUT
Reference 24V Floating wiring diagram
on page 17.
059297-00 REV. H
MIXED PORT
AB
COLD PORT
B
05 CONFIGURATION AND SETTINGS
1 2 3 4 5 6 7
1 2 3 4 5 6 7
HEAT-TIMER CORP.
ON
OFF
ON
OFF
|
21
