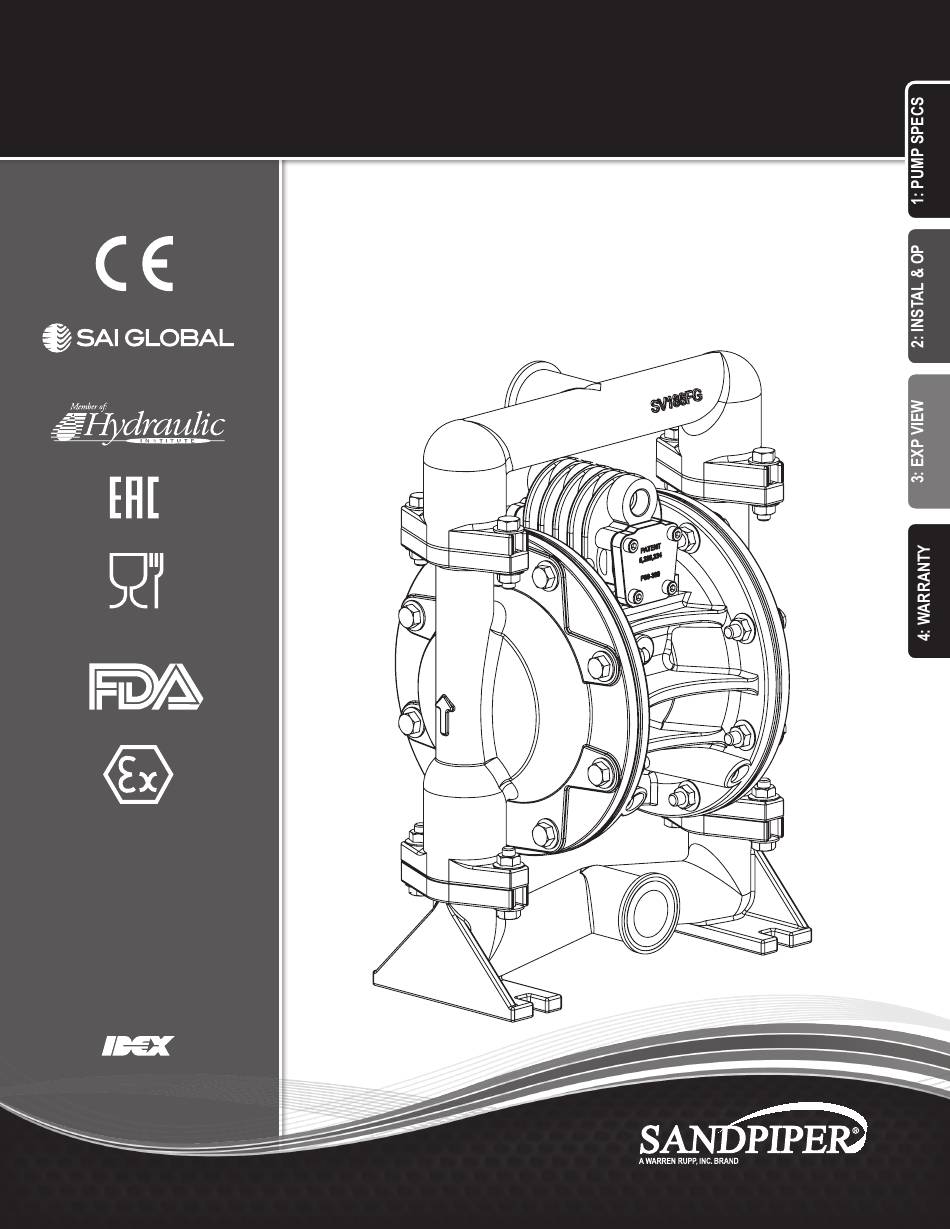

SERVICE & OPERATING MANUAL
Original Instructions
Certified Quality
ISO 9001 Certified
ISO 14001 Certified
1935/2004/EC
Warren Rupp, Inc.
A Unit of IDEX Corporation
800 N. Main St.,
Mansfield, Ohio 44902 USA
Telephone 419.524.8388
Fax 419.522.7867
SANDPIPERPUMP.COM
© Copyright 2017 Warren Rupp, Inc.
All rights reserved

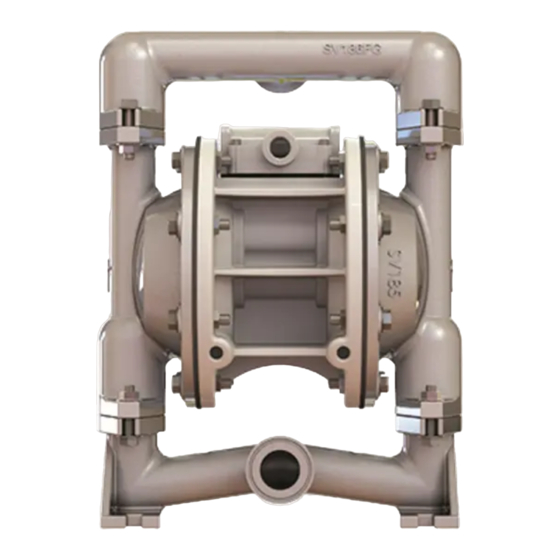

Model F10
Metallic Food Processing Pump
Constructed with FDA Compliant Materials
Design Level 1
s a n d p i p e r p u m p. c o m
Advertisement
Table of Contents
Related Manuals for Warren rupp Sandpiper F10
Summary of Contents for Warren rupp Sandpiper F10
- Page 1 A Unit of IDEX Corporation 800 N. Main St., Mansfield, Ohio 44902 USA Telephone 419.524.8388 Fax 419.522.7867 SANDPIPERPUMP.COM © Copyright 2017 Warren Rupp, Inc. All rights reserved s a n d p i p e r p u m p. c o m...
- Page 2 The use of non-OEM replacement parts will void (or negate) agency certifications, including CE, ATEX, CSA, 3A and EC1935 compliance (Food Contact Materials). Warren Rupp, Inc. cannot ensure nor warrant non-OEM parts to meet the stringent requirements of the certifying agencies.
- Page 3 Temperature Tables Table 1. Category 2 ATEX Rated Pumps Ambient Temperature Process Temperature Temperature Maximum Surface Range [°C] Range [°C] Class Temperature [°C] -20°C to +80°C T100°C -20°C to +108°C T135°C -20°C to +60°C -20°C to + 160°C T200°C -20°C to +177°C (225°C) T2 Table 2. Category M2 ATEX Rated Pumps for Mining Ambient Temperature Process Temperature Range [°C] Range [°C]...
-
Page 4: Table Of Contents
Table of Contents SECTION 1: PUMP SPECIFICATIONS ....5 • Explanation of Nomenclature • Performance • Materials • Dimensional Drawings SECTION 2: INSTALLATION & OPERATION ...9 • Principle of Pump Operation • Recommended Installation Guide • Troubleshooting Guide SECTION 3: EXPLODED VIEW ......12 •... -
Page 5: Explanation Of Nomenclature
Explanation of Pump Nomenclature Your Model #: F __ ____ ____ (fill in from pump nameplate) Pump Pump Check Design Wetted Diaphragm/ Check Valve Non-Wetted Porting Pump Muffler Pump Brand Size Valve Level Material Check Valve Seat Material Options Style Options Options Model #:... -
Page 6: Performance
Performance 1" Bolted Metal Displacement Per Stroke, .10 Gal. (0.38 L) TPE Fitted AIR CONSUMPTION IN SCFM Flow Rate AIR PRESSURE IN PSI Adjustable to . . . . . . . 0-49 gpm (185 .5 lpm) SCFM M 3 /HR Port Size Suction . -
Page 7: Materials
Materials Material Profile: Operating Temperatures: Max. Min. CAUTION! Operating temperature limitations are as follows: EPDM: Shows very good water and chemical resistance . Has 280°F -40°F poor resistance to oils and solvents, but is fair in ketones and 138°C -40°C alcohols . -
Page 8: Dimensional Drawings
Dimensional Drawings Food Processing Metallic Dimensions in inches (mm dimensions in brackets) . The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed. 1-1/2” DISCHARGE SANITARY CLAMP FLANGE AIR INLET AIR EXHAUST 1-1/2”... -
Page 9: Principle Of Pump Operation
Principle of Pump Operation Air-Operated Double Diaphragm (AODD) pumps are powered by compressed air or nitrogen . The main directional (air) control valve distributes ① compressed air to an air chamber, exerting uniform pressure over the inner surface of the diaphragm . -
Page 10: Recommended Installation Guide
Recommended Installation Guide Available Accessories: 1. Surge Suppressor Unregulated Air Supply to Surge 2. Filter/Regulator Suppressor 1 Surge Suppressor 3. Air Dryer 4. Lubricator Pressure Gauge Note: Surge Suppressor and Shut-Off Valve Piping, including air line, must be supported after the flexible connections. Pipe Connection (Style Optional) Discharge... -
Page 11: Troubleshooting Guide
Troubleshooting Guide Symptom: Potential Cause(s): Recommendation(s): Pump Cycles Once Deadhead (system pressure meets or exceeds air Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero flow. supply pressure) . (Does not apply to high pressure 2:1 units) . Air valve or intermediate gaskets installed incorrectly . - Page 12 Composite Repair Parts Drawing FUSION DIAPHRAGM ASSEMBLY Torque Setting: 180 in-lbs. (20 N-m) Torque Setting: Torque Setting: 40 in-lbs. PTFE 2-PIECE DIAPHRAGM ASSEMBLY 300 in-lbs. (4 N-m) (33.9 N-m) Torque Setting: 300 in-lbs. (33.9 N-m) Torque Setting: 180 in-lbs. (20 N-m) Torque Setting: 180 in-lbs.
- Page 13 Composite Repair Parts List Air Valve Assembly Item # Qty. Description Part Number Air Side Repair Kit (Includes Items 476 .V015 .000 3,4,6-9,12-15,16,18) Air Valve Assembly (includes items 1-10) 031 .V006 .332 Valve Body 095 .V003 .332 Valve Spool Assembly (Includes items 3&4) P98-105UB ASY Large Valve Spool U-Cup P98-105B...
- Page 14 Warren Rupp, Inc. (“Warren Rupp”) warrants to the original end-use purchaser that no product sold by Warren Rupp that bears a Warren Rupp brand shall fail under normal use and service due to a defect in material or workmanship within five years from the date of shipment from Warren Rupp’s factory.
- Page 15 Declaration of Conformity Manufacturer: Warren Rupp, Inc., 800 N. Main Street, Mansfield, Ohio, 44902 USA certifies that SANDPIPER Air-Operated Double Diaphragm Food Processing Pump Models ® and Tranquilizer Surge Suppressor Models comply with the European Community Regulations: ® (EC) No 1935/2004 for Food Contact Materials...
- Page 16 A Unit of IDEX Corporation 800 North Main Street Mansfield, OH 44902 USA Warren Rupp, Inc. declares that Air Operated Double Diaphragm Pumps (AODD) and Surge Suppressors listed below comply with the requirements of Directive 2014/34/EU and all applicable standards. Applicable Standards •...
